Overhaul

STEERING SHAFT
DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

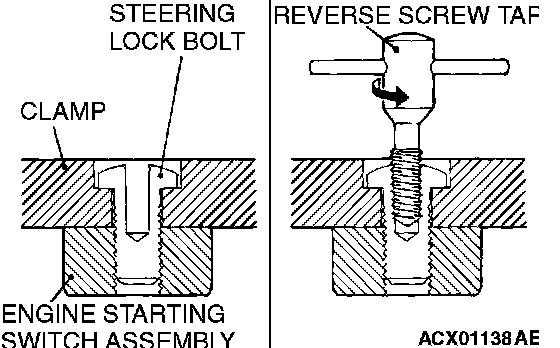

[[A]] STEERING LOCK BOLT REMOVAL





1. Drill in the steering lock bolt a hole deep enough for the tap to stand.
2. Remove the steering lock bolt with a left-hand tap.

ASSEMBLY SERVICE POINT

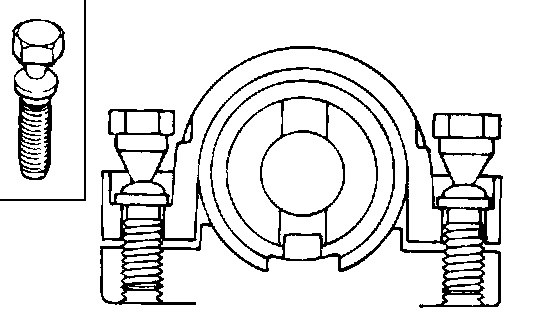

]]A[[ ENGINE STARTING SWITCH ASSEMBLY/STEERING LOCK BOLT INSTALLATION

CAUTION: The bolts must be replaced with new ones when the steering lock is installed.

1. When installing the engine starting switch assembly to the steering column assembly, temporarily install the engine starting switch assembly in alignment with the column boss.





2. After checking that the lock works properly, tighten the steering lock bolts until the head is twisted off.
