Home >> Mitsubishi >> 2004 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

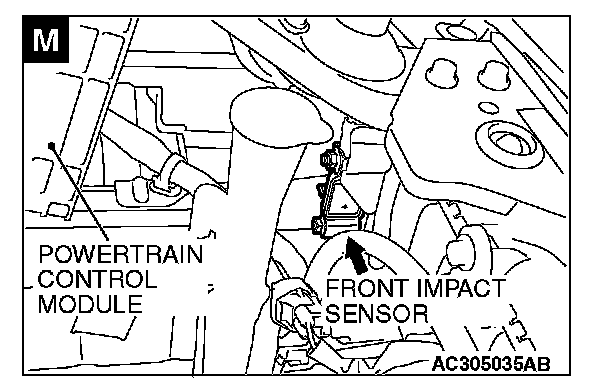

View M:



View a:





Overall View:

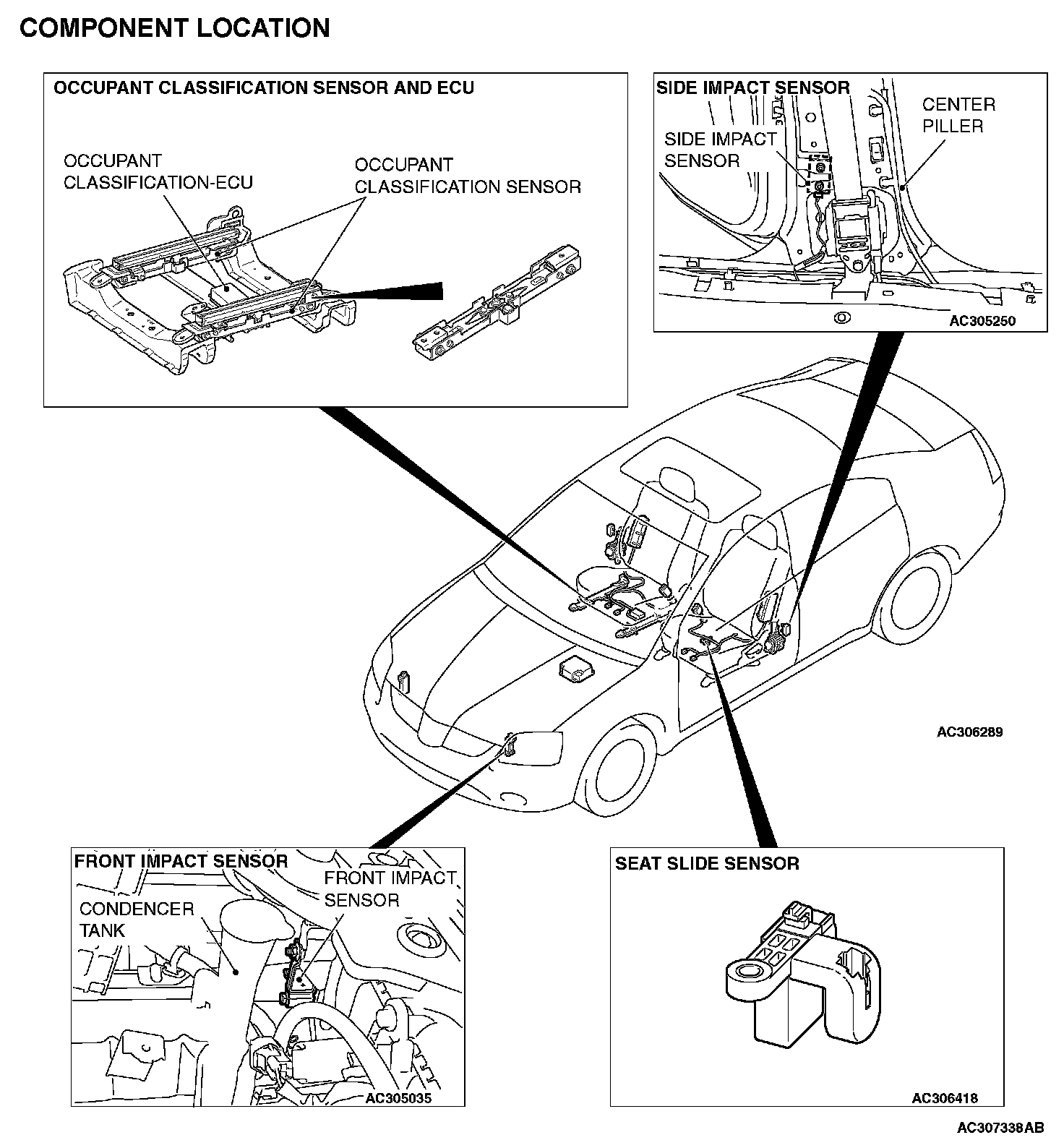

Supplement Restraint System (SRS) Component Location Part 1:
