Diagnostic Connector: Description and Operation

SRS air bag special connector

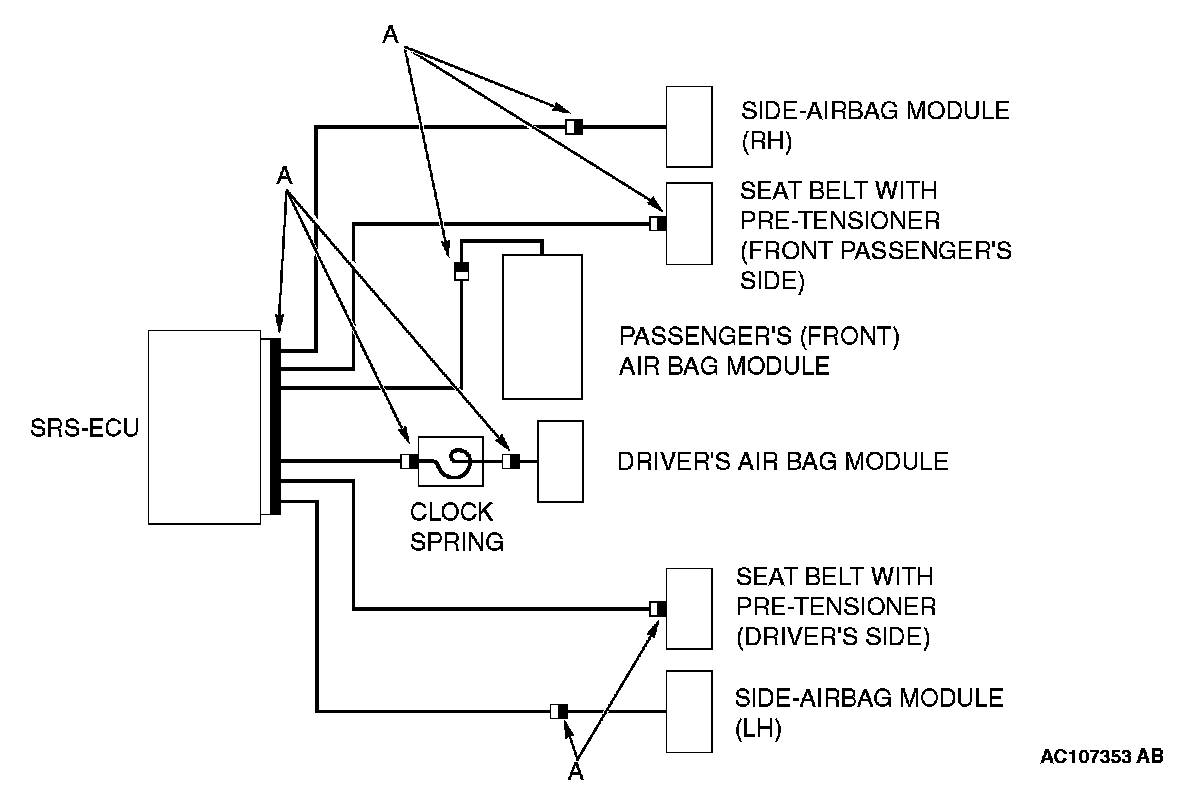

To enhance the system reliability, a connector lock switch is integrated in the SRS-ECU connector, the air bag module connectors, the clock spring connector, the seat belt pretensioner connectors (black con nector "A" shown in the illustration).
