DIAGNOSTIC ITEM 15: Diagnose CAN bus lines thoroughlyCAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.
Part 1:
Part 2:
TROUBLE JUDGMENT
If the MUT-III cannot received signals from ECUs, CAN bus line connector(s) are broken or an open circuit has occurred.
COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector, or a ECU may be defective.
TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector
- The ETACS-ECU may be defective
- The combination meter may be defective
- The A/C-ECU may be defective
- The SRS-ECU may be defective
- The ABS-ECU may be defective
- The powertrain control module may be defective
DIAGNOSIS
Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A
- MB991970: ABS Check Harness

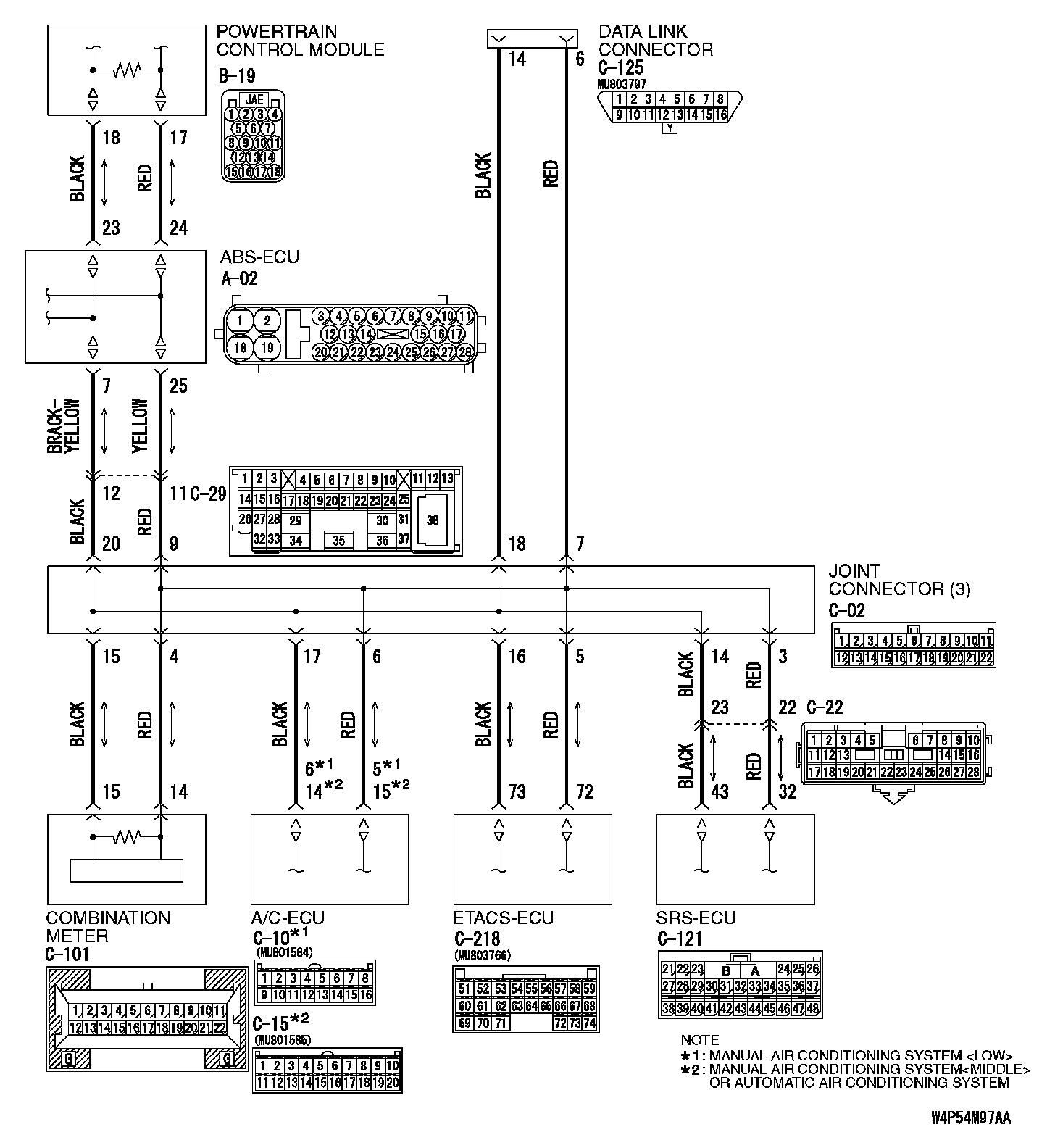

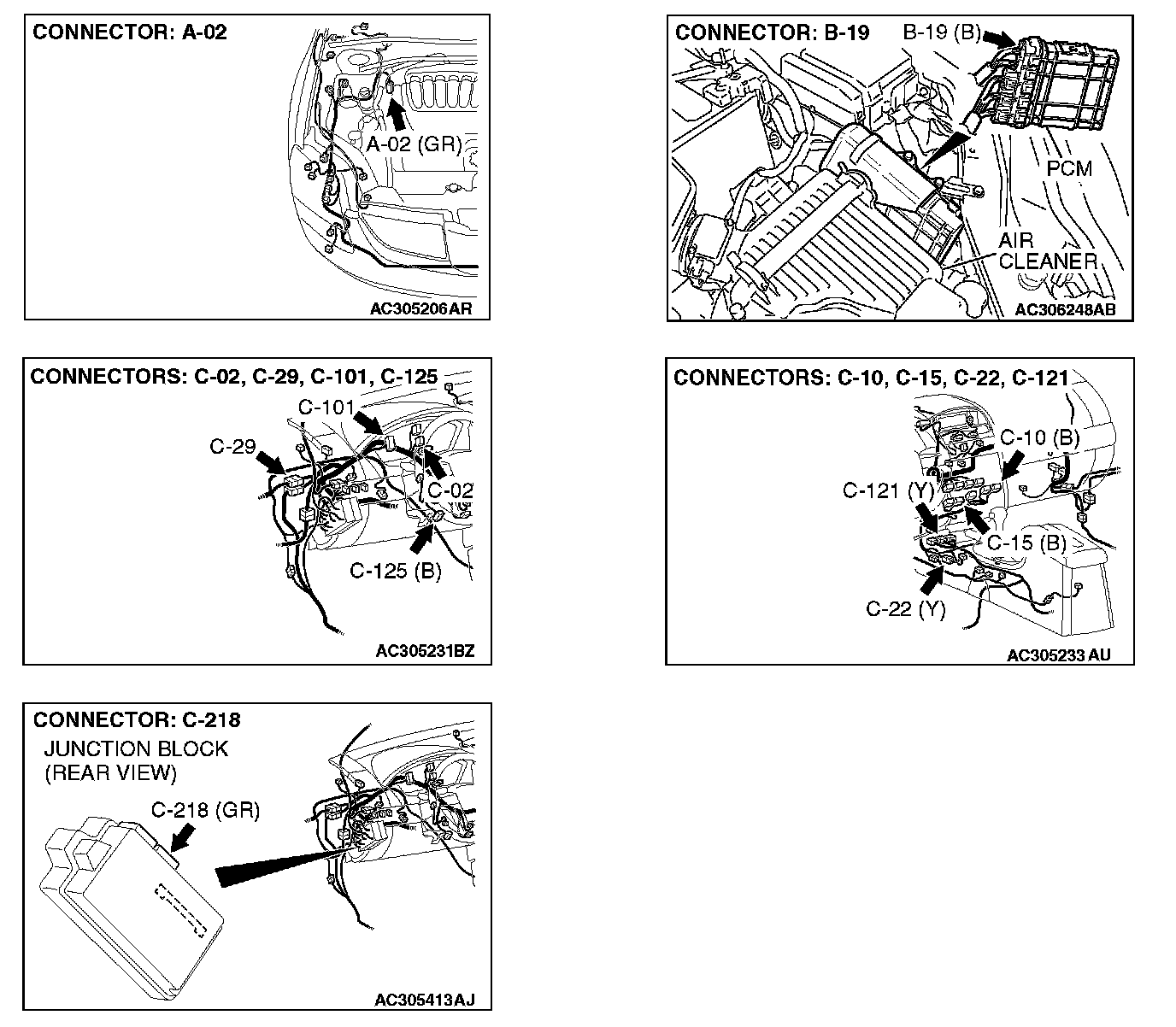

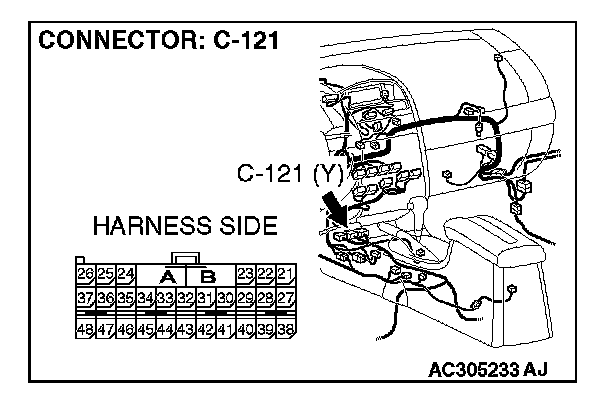

STEP 14. Check SRS-ECU connector C-121 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector. For details Service Precautions/Vehicle Damage Warnings.
Q: Is SRS-ECU connector C-121 in good condition?
YES: Go to Step 15.
NO: Repair the damaged parts.
STEP 15. Using scan tool MB991958, diagnose the CAN bus line (Disconnect SRS-ECU connector C-121, and check the supplemental restraint system).

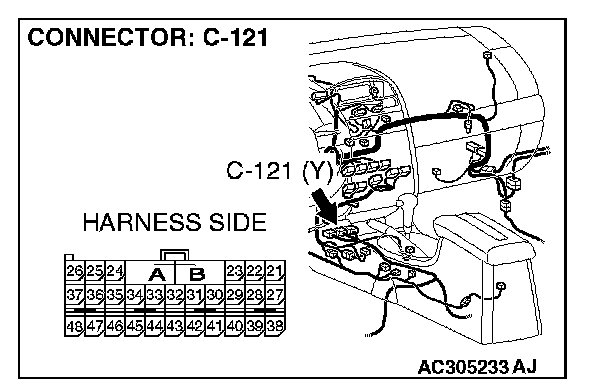

1. Disconnect SRS-ECU connector C-121.
2. Turn the ignition switch to the "ON" position.

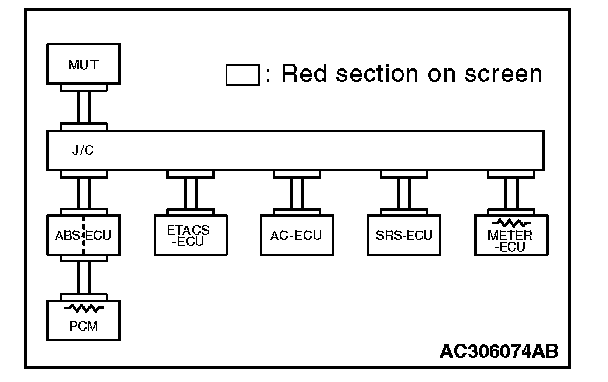

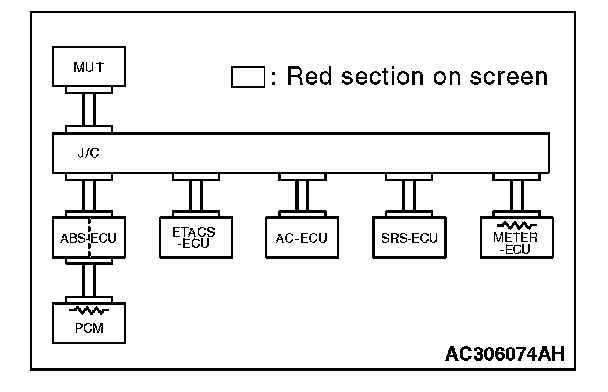

3. Diagnose CAN bus lines, and check if the MUT-III screen is as shown in the illustration.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Connect the SRS-ECU connector C-121.
Q: Does the MUT-III screen correspond to the illustration?
YES: If the MUT-III screen corresponds to the illustration, go to Step 16 .
NO: If the MUT-III screen does not correspond to the illustration, go to Step 19.

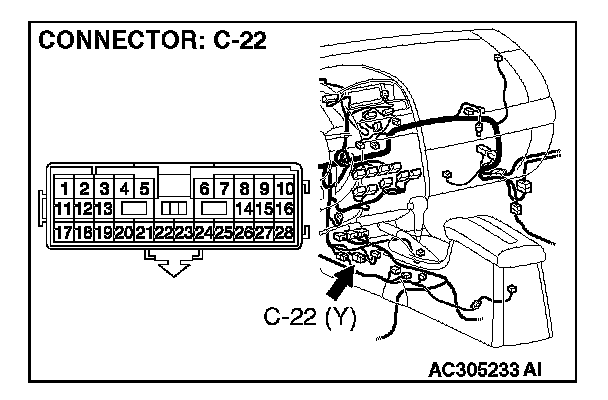

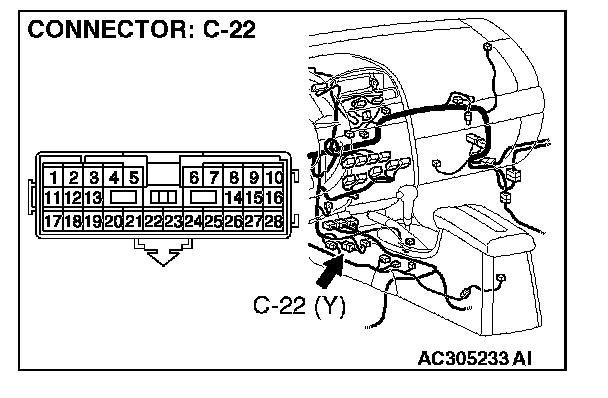

STEP 16. Check intermediate connector C-22 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector. For details Service Precautions/Vehicle Damage Warnings.
Q: Is intermediate connector C-22 in good condition?
YES: Go to Step 17.
NO: Repair the damaged parts.
STEP 17. Check the CAN bus lines between intermediate connector and the SRS-ECU. Measure the resistance between intermediate connector C-22 and SRS-ECU connector C-121.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.
1. Disconnect intermediate connector C-22 and SRS-ECU connector C-121, and measure the resistance at the wiring harness sides of intermediate connector C-22 and SRS-ECU connector C-121.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

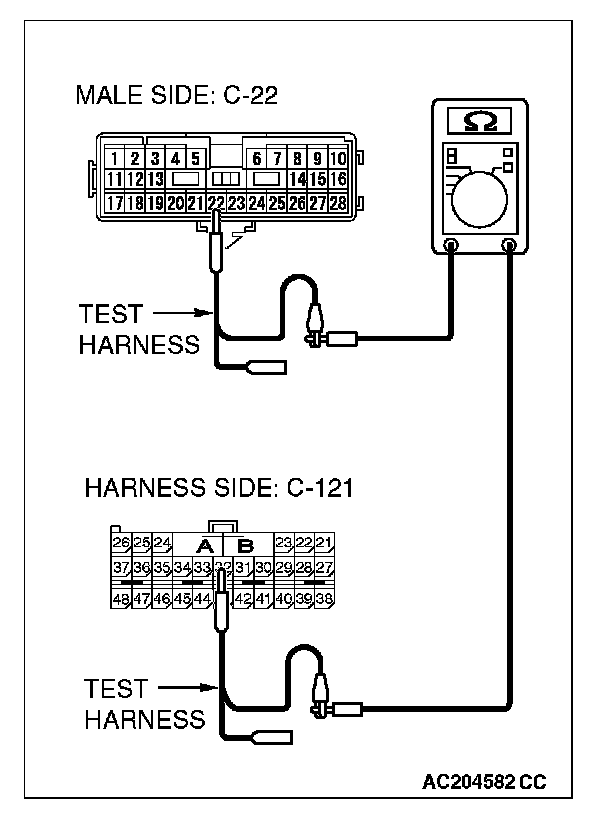

4. Measure the resistance between intermediate connector terminal 22 and SRS-ECU connector terminal 32.
OK: 2 ohms or less

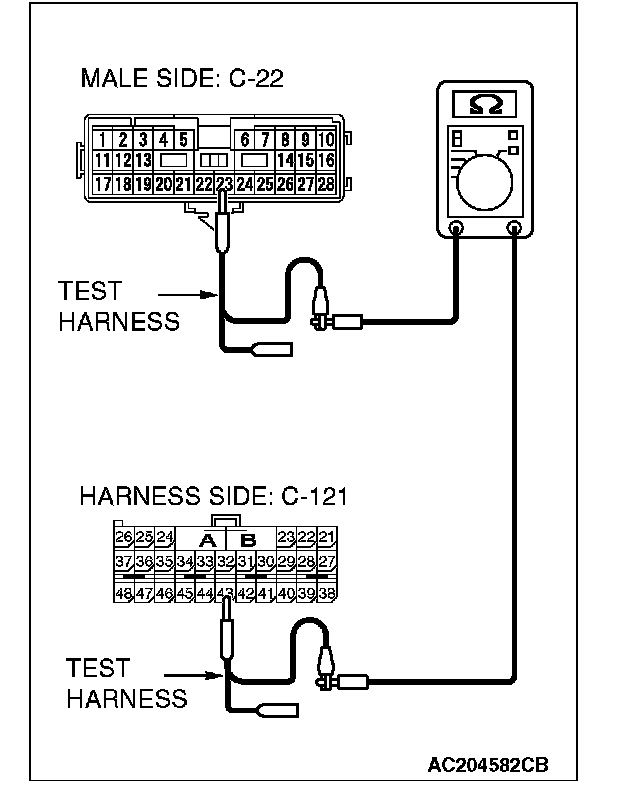

5. Measure the resistance between intermediate connector terminal 23 and SRS-ECU connector terminal 43.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 18.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between intermediate connector and the SRS-ECU connector.
STEP 18. Check the CAN bus lines between joint connector (3) and the intermediate connector. Measure the resistance between joint connector (3) C-02 and intermediate connector C-22.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.

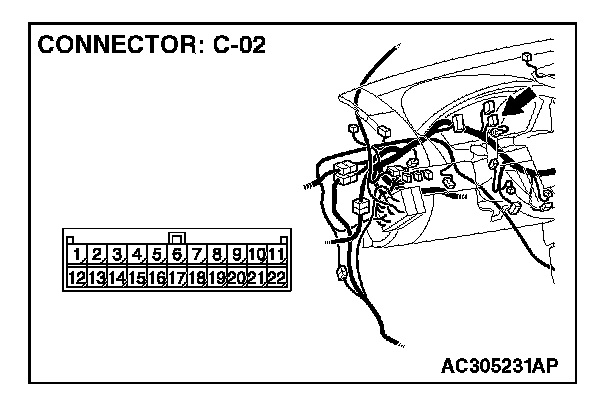

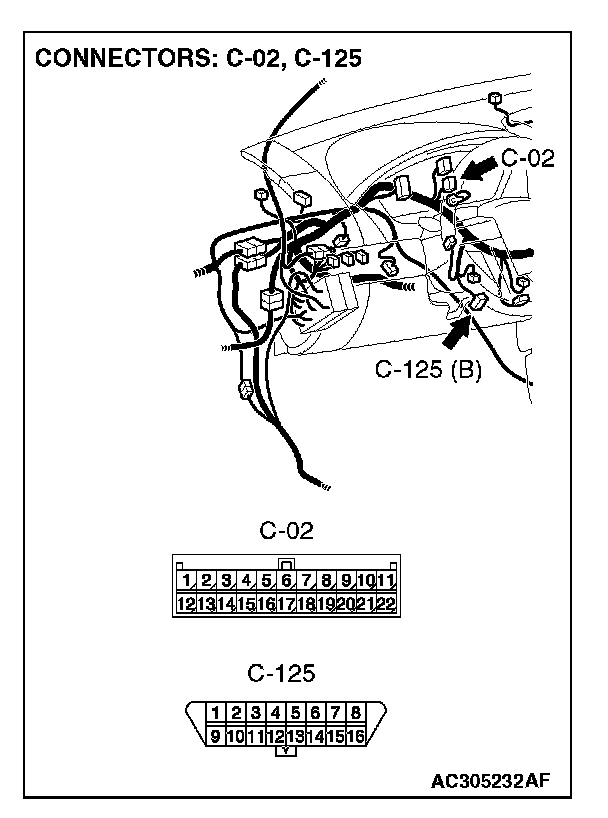

1. Disconnect joint connector (3) C-02 and intermediate connector C-22, and measure the resistance at the wiring harness sides of joint connector (3) C-02 and intermediate connector C-22.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

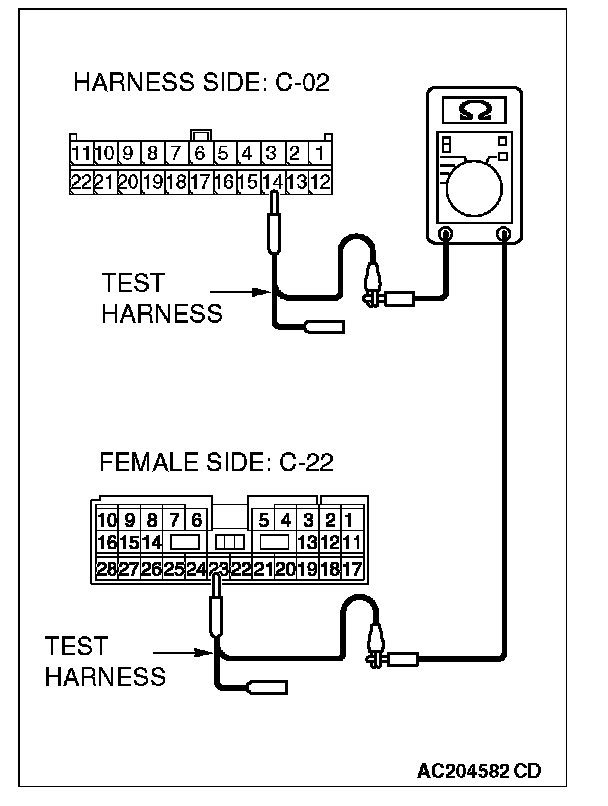

4. Measure the resistance between joint connector (3) terminal 3 and intermediate connector terminal 22.
OK: 2 ohms or less
5. Measure the resistance between joint connector (3) terminal 14 and intermediate connector terminal 23.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, power supply to the SRS-ECU may be suspected. Diagnose the supplemental restraint system. Refer to SRS air bag diagnosis, equipment diagnosis.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and the intermediate connector.
STEP 19. Check the CAN bus lines between joint connector (3) and the data link connector. Measure the resistance between joint connector (3) C-02 and data link connector C-125.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (3) C-02, and measure the resistance between the wiring harness side connector of joint connector (3) C-02 and wiring harness side connector of data link connector C-125.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

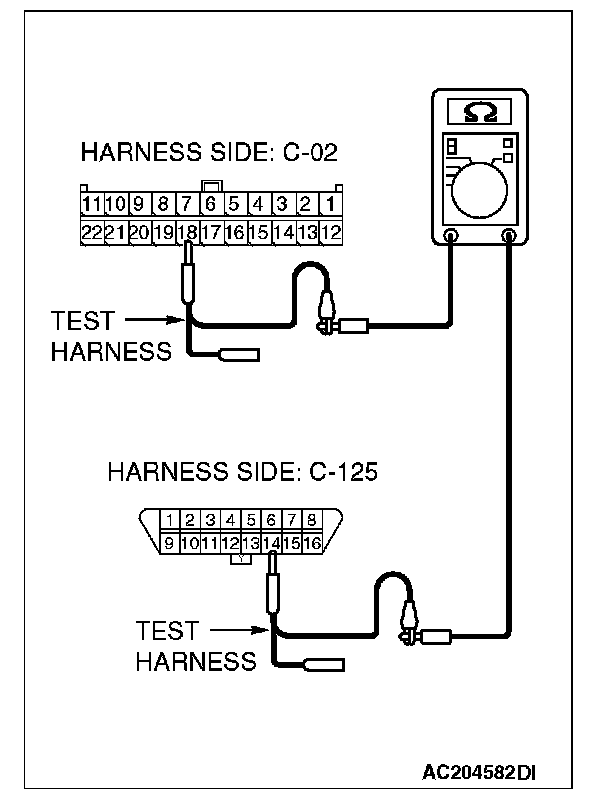

4. Measure the resistance between joint connector (3) terminal 18 and data link connector terminal 14.
OK: 2 ohms or less

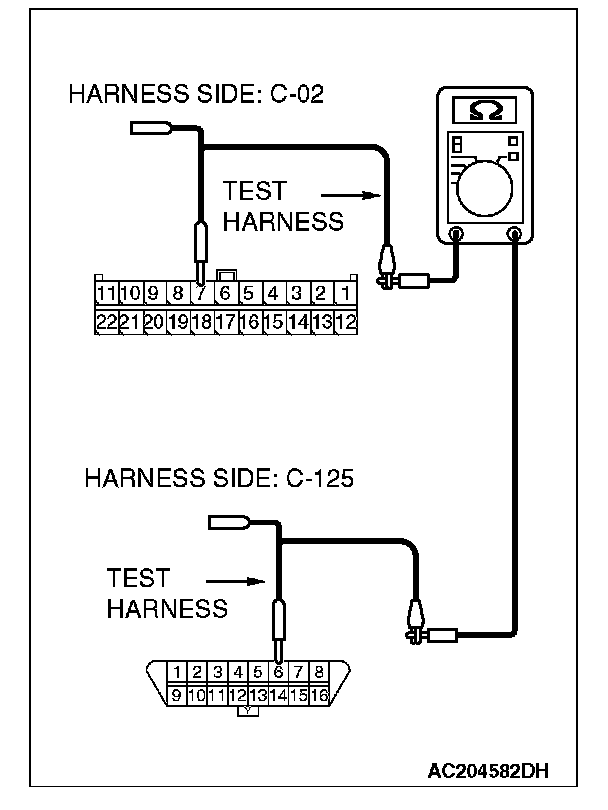

5. Measure the resistance between joint connector (3) terminal 7 and data link connector terminal 6.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, refer to diagnostics item 8: Check the CAN_L and H lines for a short circuit.
NO: If all the resistances measure 2 ohms or less, repair the wiring harness between joint connector (3) and the data link connector.

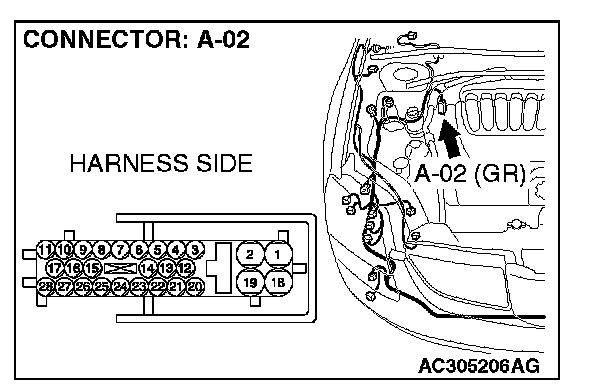

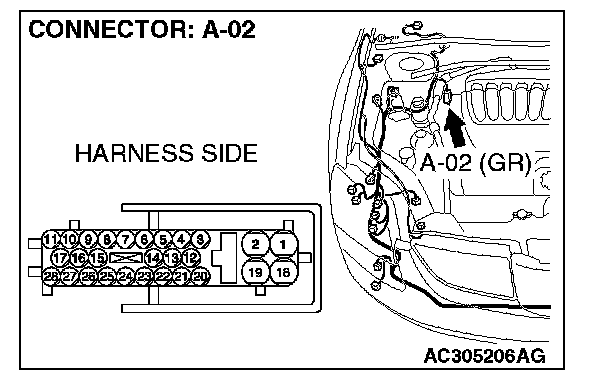

STEP 20. Check ABS-ECU connector A-02 and powertrain control module connector B-19 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector. For details Service Precautions/Vehicle Damage Warnings.
Q: Are ABS-ECU connector A-02 and powertrain control module connector B-19 in good condition?
YES: Go to Step 21.
NO: Repair the damaged parts.
STEP 21. Using scan tool MB991958, diagnose the CAN bus line (Disconnect powertrain control module connector B-19, and check the powertrain control module system).

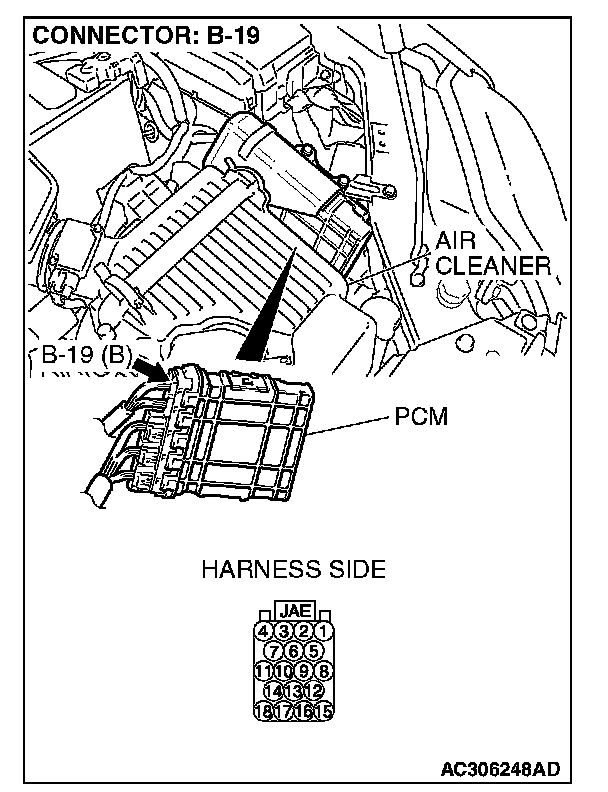

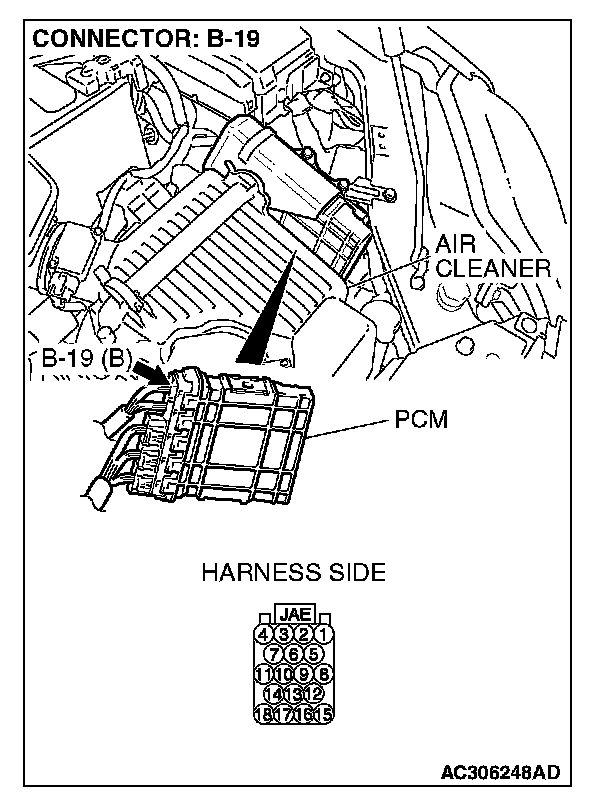

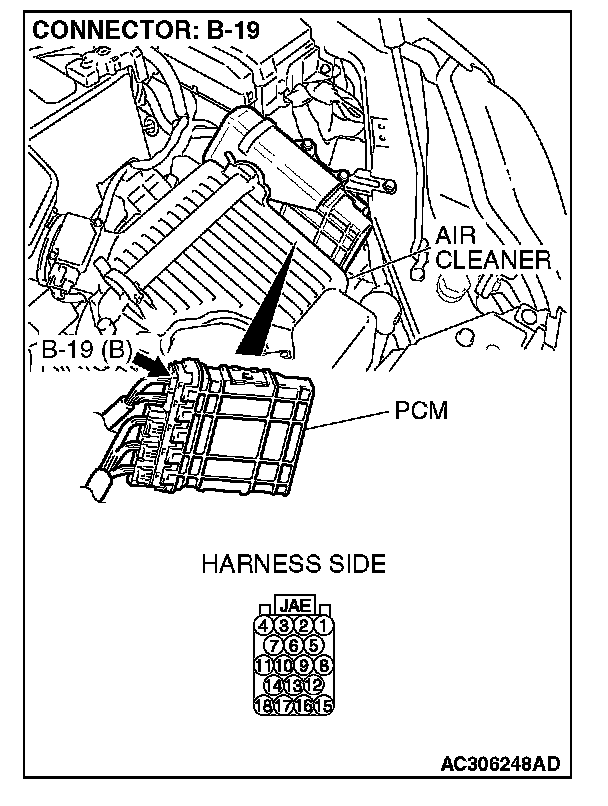

1. Disconnect powertrain control module connector B-19.
2. Turn the ignition switch to the "ON" position.

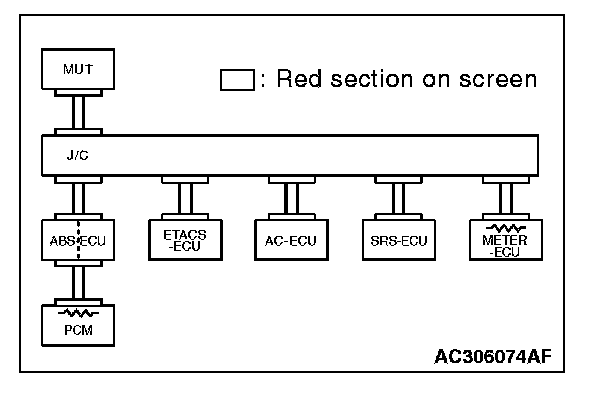

3. Diagnose CAN bus lines, and check if the MUT-III screen is as shown in the illustration.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Connect powertrain control module connector B-19.
Q: Does the MUT-III screen correspond to the illustration?
YES: If the MUT-III screen corresponds to the illustration, go to Step 22 .
NO: If the MUT-III screen does not correspond to the illustration, go to Step 24.
STEP 22. Check the CAN bus lines between the ABS-ECU and the powertrain control module. Measure the resistance between ABS-ECU connector A-02 and powertrain control module connector B-19.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.

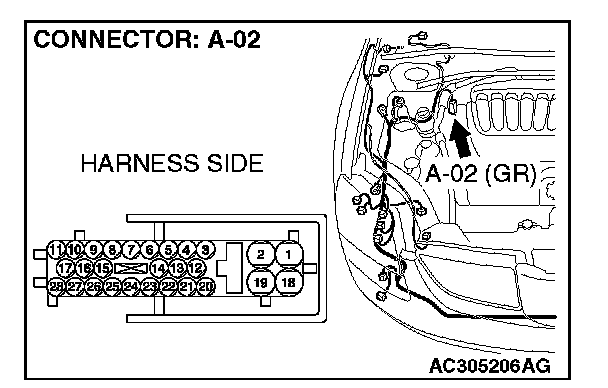

1. Disconnect ABS-ECU connector A-02 and powertrain control module connector B-19, and measure the resistance between each wiring harness side connector.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

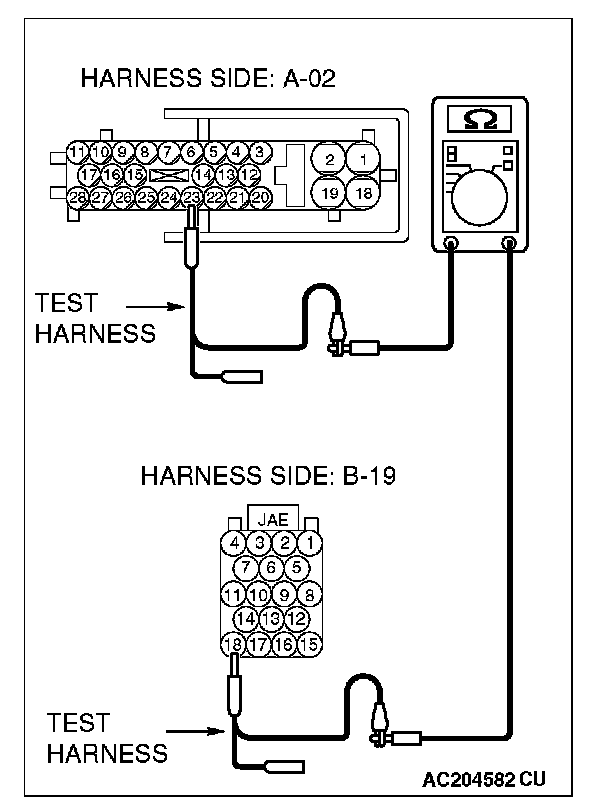

4. Measure the resistance between ABS-ECU connector terminal 23 and powertrain control module connector terminal 18.
OK: 2 ohms or less
5. Measure the resistance between ABS-ECU connector terminal 24 and powertrain control module connector terminal 17.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 23.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between ABS-ECU connector and the powertrain control module connector.
STEP 23. Check the CAN bus lines inside the ABS-ECU. Measure the resistance at ABS-ECU connector A-02.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.

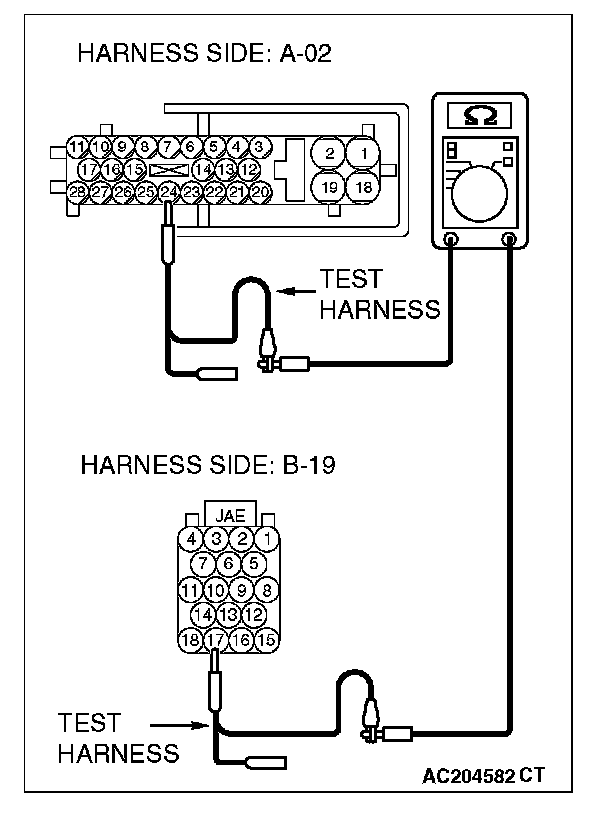

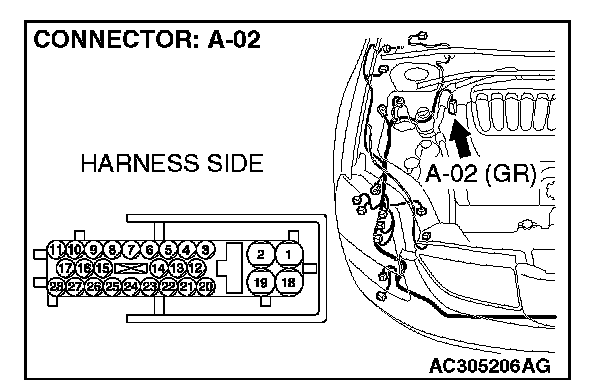

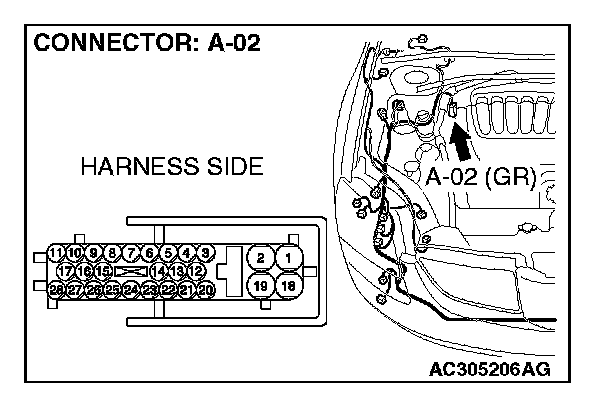

1. Disconnect ABS-ECU connector A-02, and measure the resistance at the component side of ABS-ECU connector A-02.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

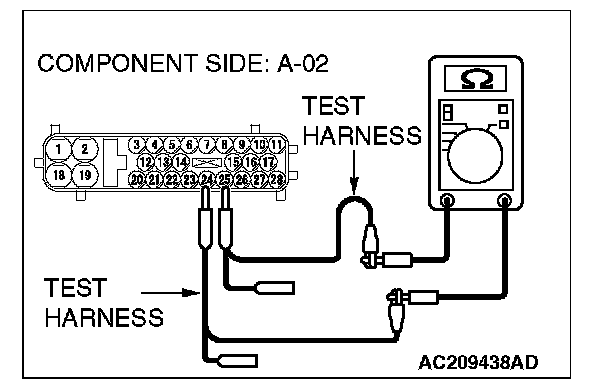

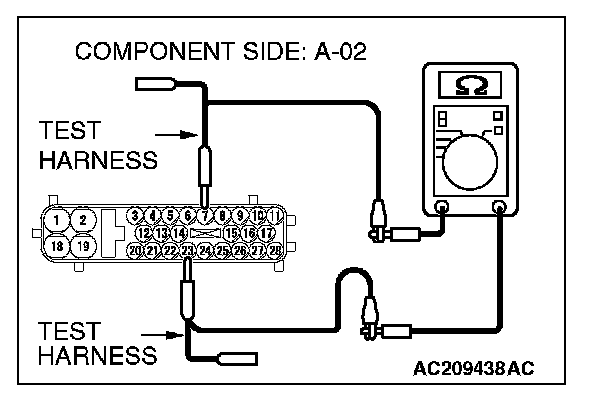

4. Measure the resistance between ABS-ECU connector terminals 7 and 23.
OK: 2 ohms or less
5. Measure the resistance between ABS-ECU connector terminals 24 and 25.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, power supply to the powertrain control module may be suspected. Diagnose the engine. Refer to MFI diagnosis. Inspection Procedure 2
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, replace the ABS-ECU.
STEP 24. Using scan tool MB991958, diagnose the CAN bus line (Disconnect ABS-ECU connector A-02, and check the ABS-ECU system).
1. Disconnect ABS-ECU connector A-02.
2. Turn the ignition switch to the "ON" position.
3. Diagnose CAN bus lines, and check if the MUT-III screen is as shown in the illustration.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Check ABS-ECU connector A-02.
Q: Does the MUT-III screen correspond to the illustration?
YES: If the MUT-III screen corresponds to the illustration, go to Step 25 .
NO: If the MUT-III screen does not correspond to the illustration, refer to diagnostics item 8: Check the CAN_L and H lines for a short circuit.

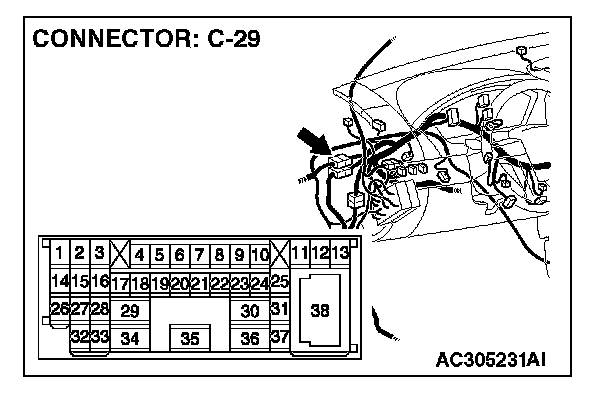

STEP 25. Check the CAN bus lines between intermediate connector C-29 and the ABS-ECU. Measure the resistance between intermediate connector C-29 and ABS-ECU connector A-02.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.
1. Disconnect intermediate connector C-29 and ABS-ECU connector A-02, and measure the resistance between the wiring harness side connector of ABS-ECU connector A-02 and the male side connector of intermediate connector C-29 (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

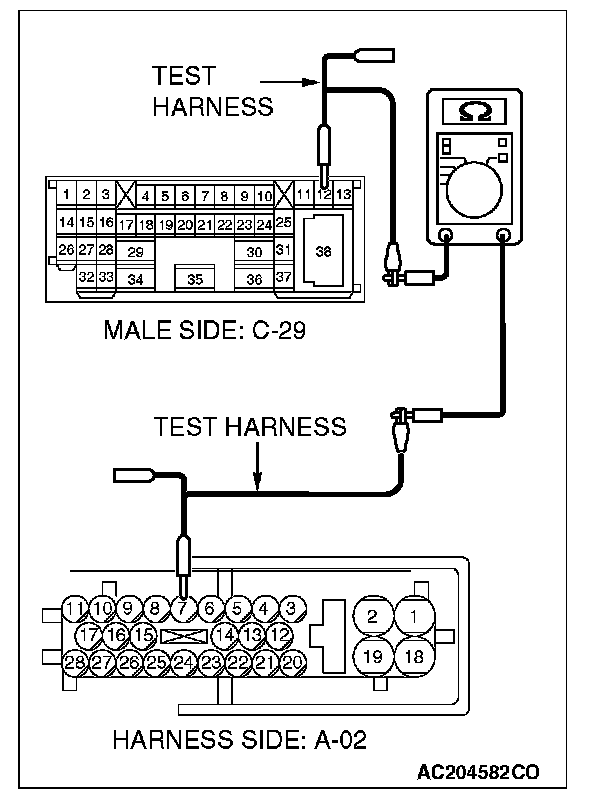

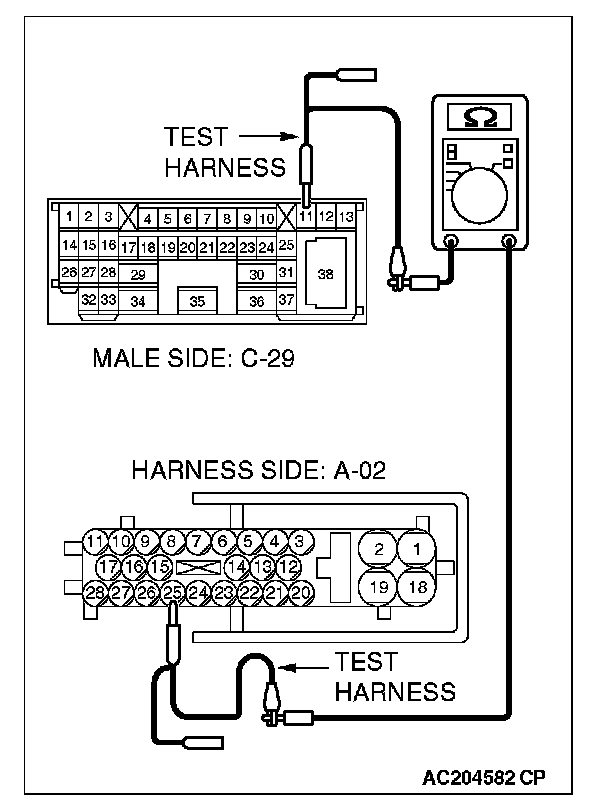

4. Measure the resistance between intermediate connector terminal 11 and ABS-ECU connector terminal 25.
OK: 2 ohms or less
5. Measure the resistance between intermediate connector terminal 12 and ABS-ECU connector terminal 7.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 26.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between intermediate connector C-29 and the ABS-ECU connector.

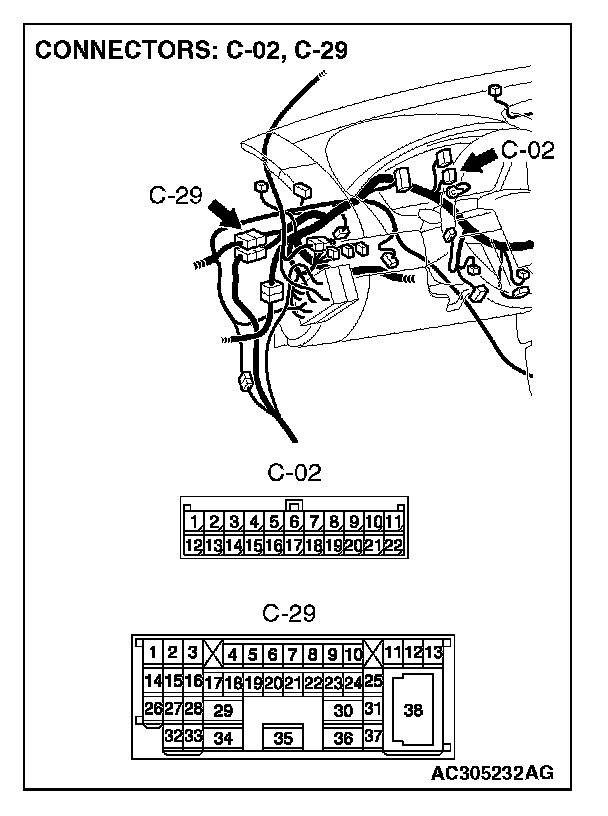

STEP 26. Check the CAN bus lines between intermediate connector C-29 and the joint connector (3). Measure the resistance between intermediate connector C-29 and joint connector (3) C-02.
CAUTION: A digital multimeter should be used. For details Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (3) C-02 and intermediate connector C-29, and measure the resistance between the wiring harness side connector of joint connector (3) C-02 and the female side connector of intermediate connector C-29 (instrument panel wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.

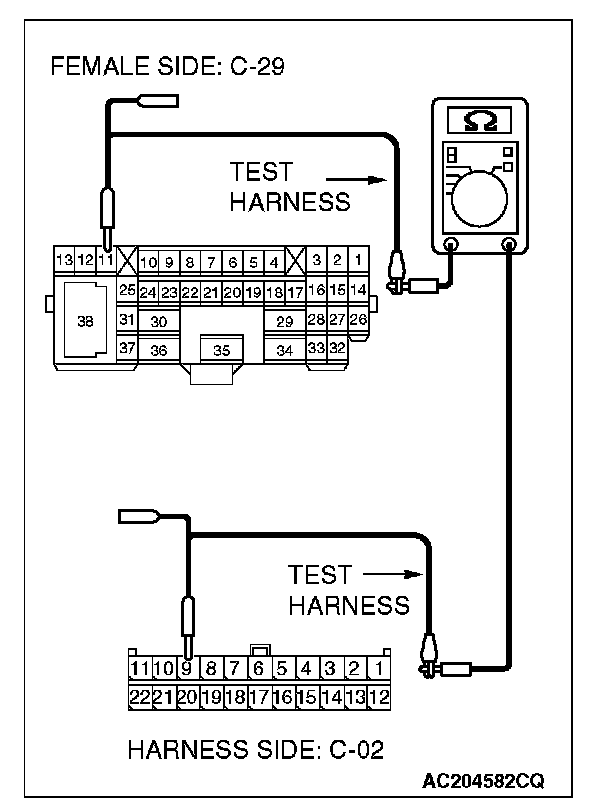

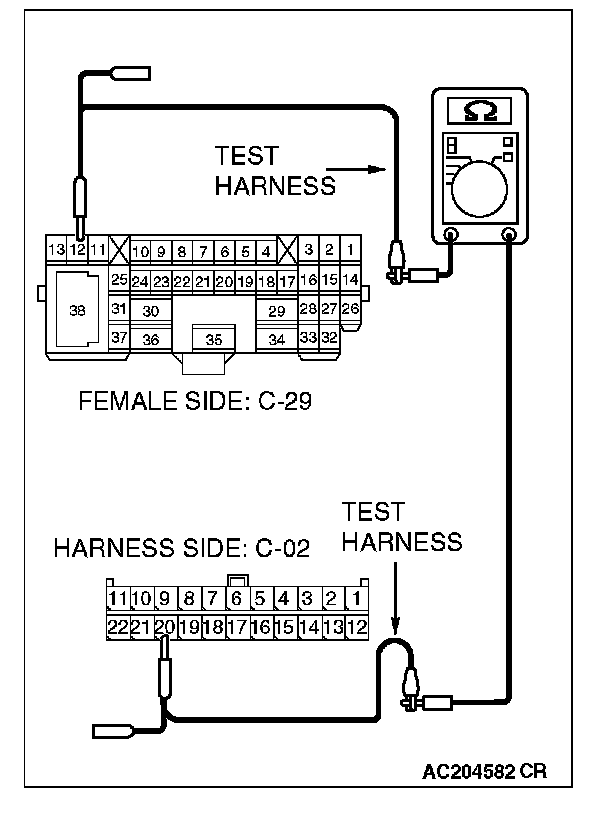

4. Measure the resistance between intermediate connector terminal 11 and joint connector (3) terminal 9.
OK: 2 ohms or less
5. Measure the resistance between intermediate connector terminal 12 and joint connector (3) terminal 20.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure. For details Service Precautions/Vehicle Damage Warnings.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, power supply to the ABS-ECU may be suspected. Diagnose the ABS system. Refer to ABS diagnosis.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and intermediate connector C-29.
