Electrical Diagrams

Control Area Network (CAN) Part 1:

Control Area Network (CAN) Part 2:

Control Area Network (CAN) Part 3:

Control Area Network (CAN) Part 4:

Control Area Network (CAN) Part 5:

Control Area Network (CAN) Part 6:

Control Area Network (CAN) Part 7:

Control Area Network (CAN) Part 8:

Control Area Network (CAN) Part 9:

Control Area Network (CAN) Part 10:

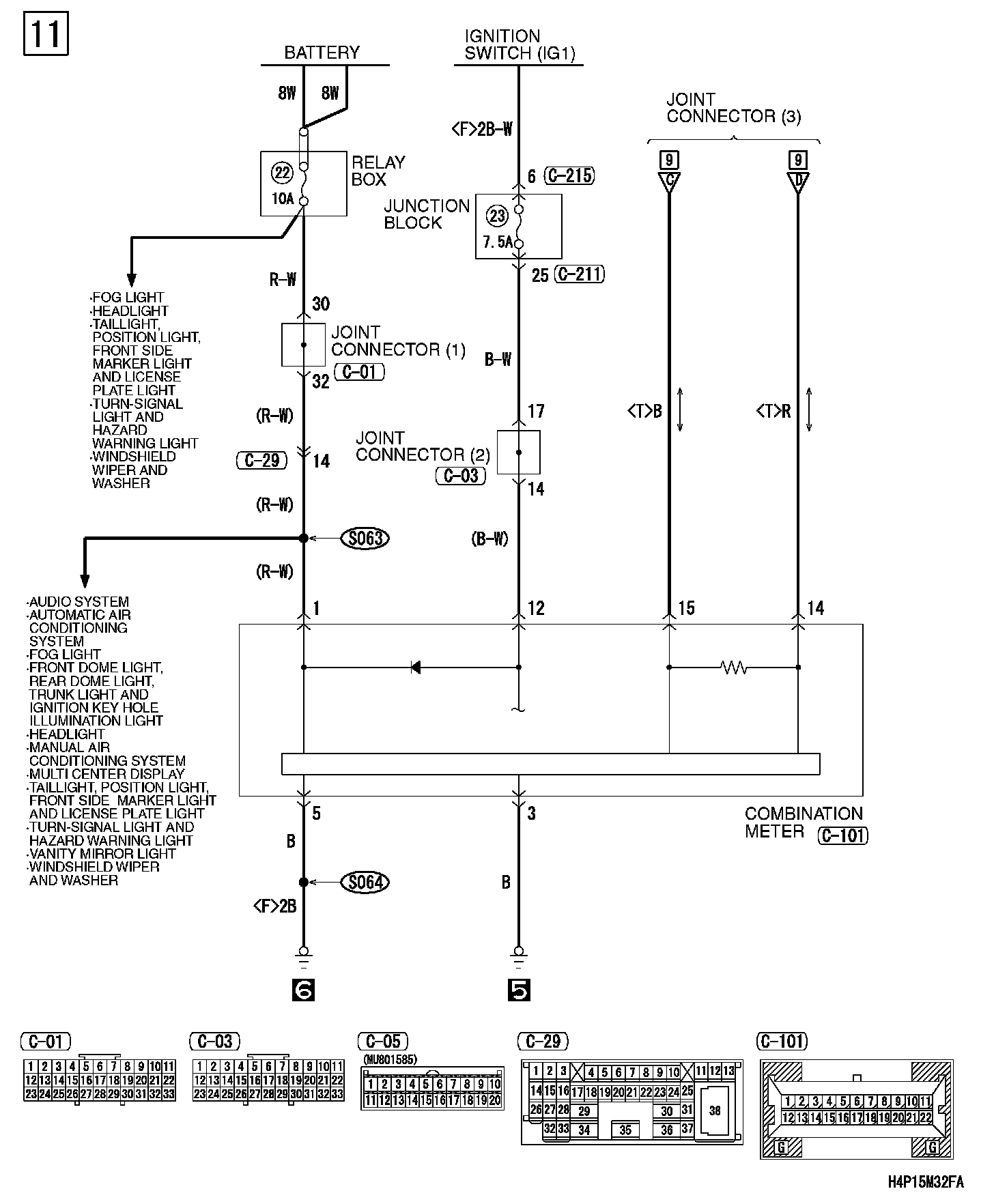

Control Area Network (CAN) Part 11:

Control Area Network (CAN) Part 12:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
