Pinout Values and Diagnostic Parameters

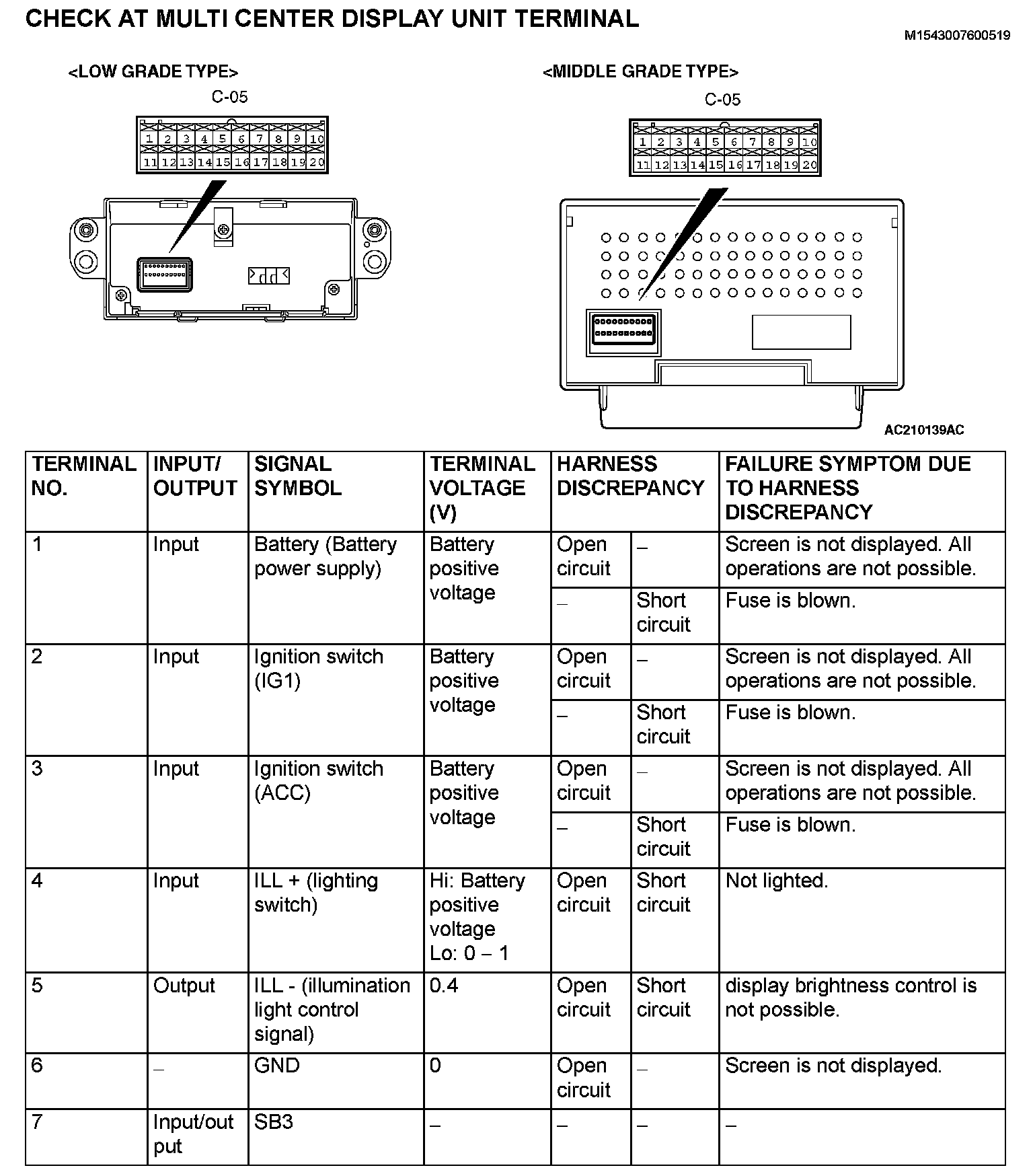

Check At Multi Center Display Unit Terminal - Part 1:

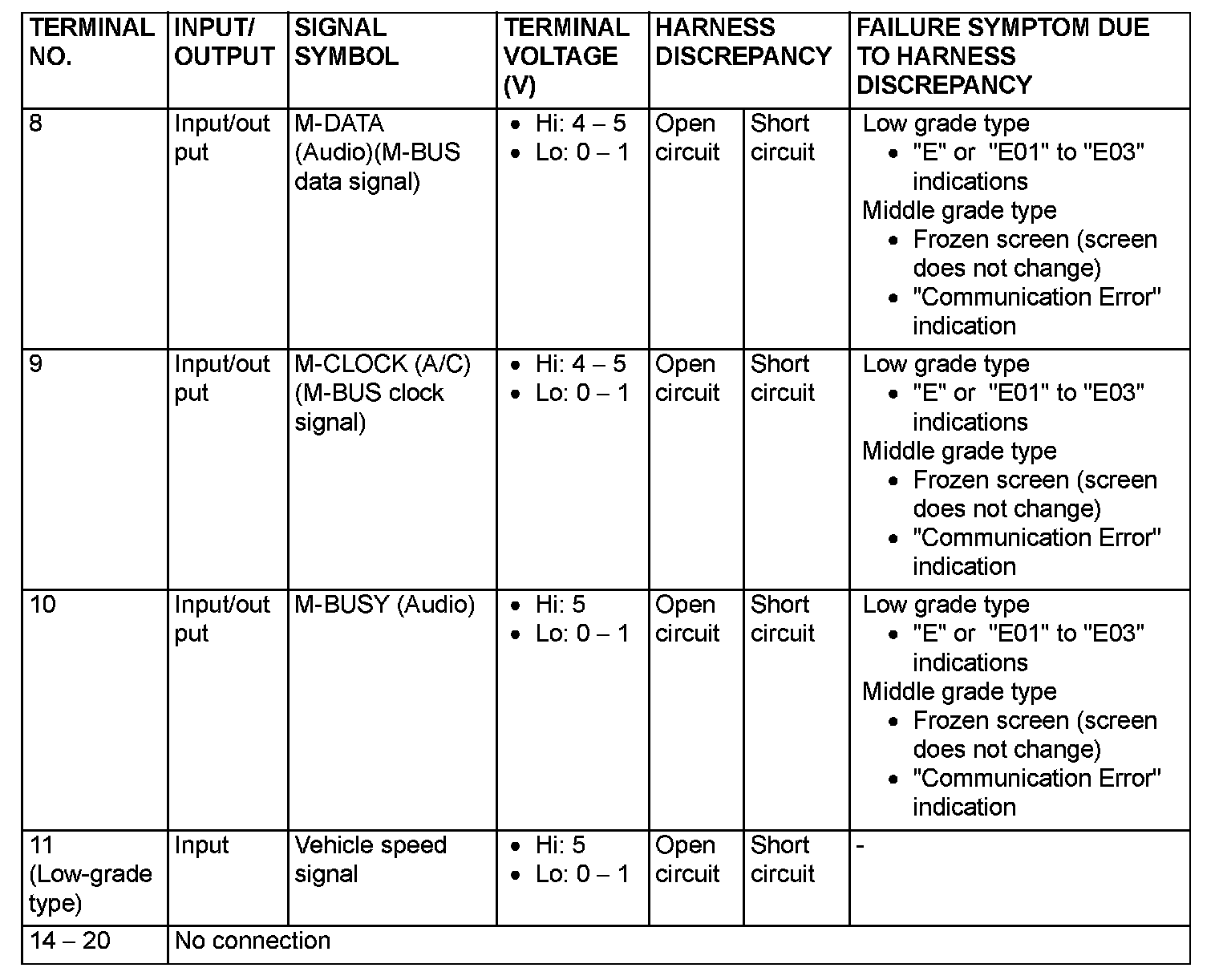

Check At Multi Center Display Unit Terminal Part - 2:
