Middle

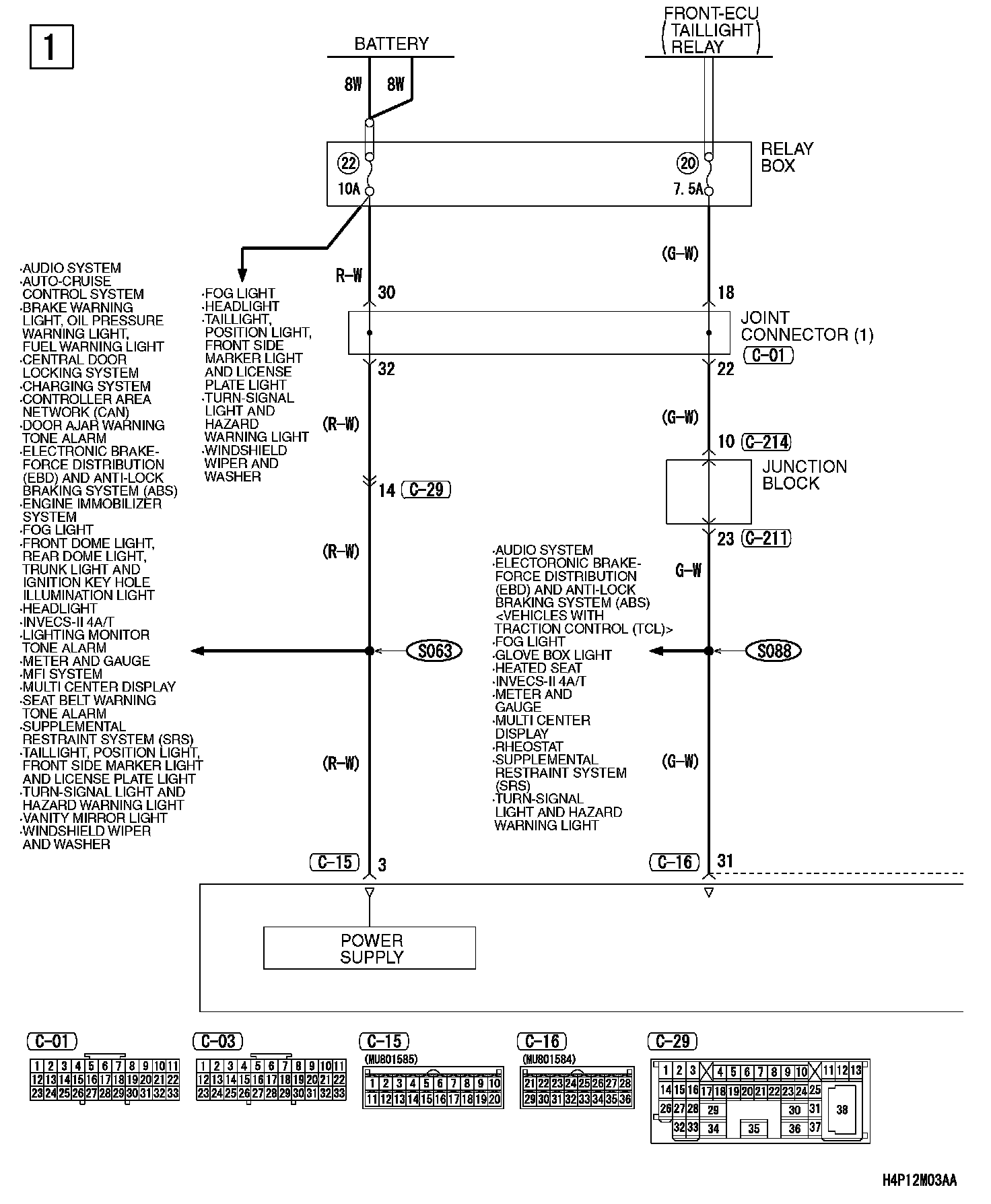

Manual Air Conditioning System (MIDDLE) Part 1:

Manual Air Conditioning System (MIDDLE) Part 2:

Manual Air Conditioning System (MIDDLE) Part 3:

Manual Air Conditioning System (MIDDLE) Part 4:

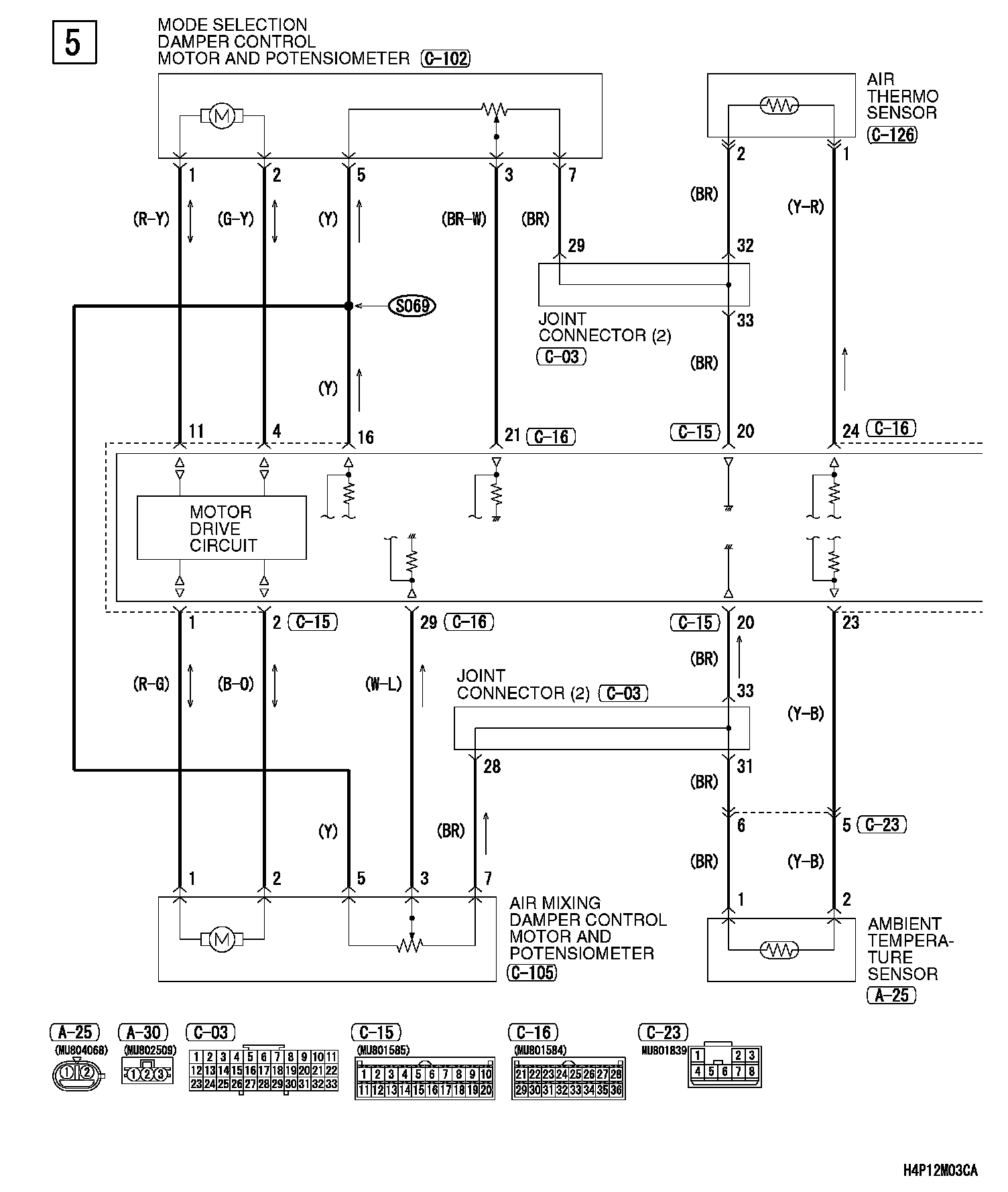

Manual Air Conditioning System (MIDDLE) Part 5:

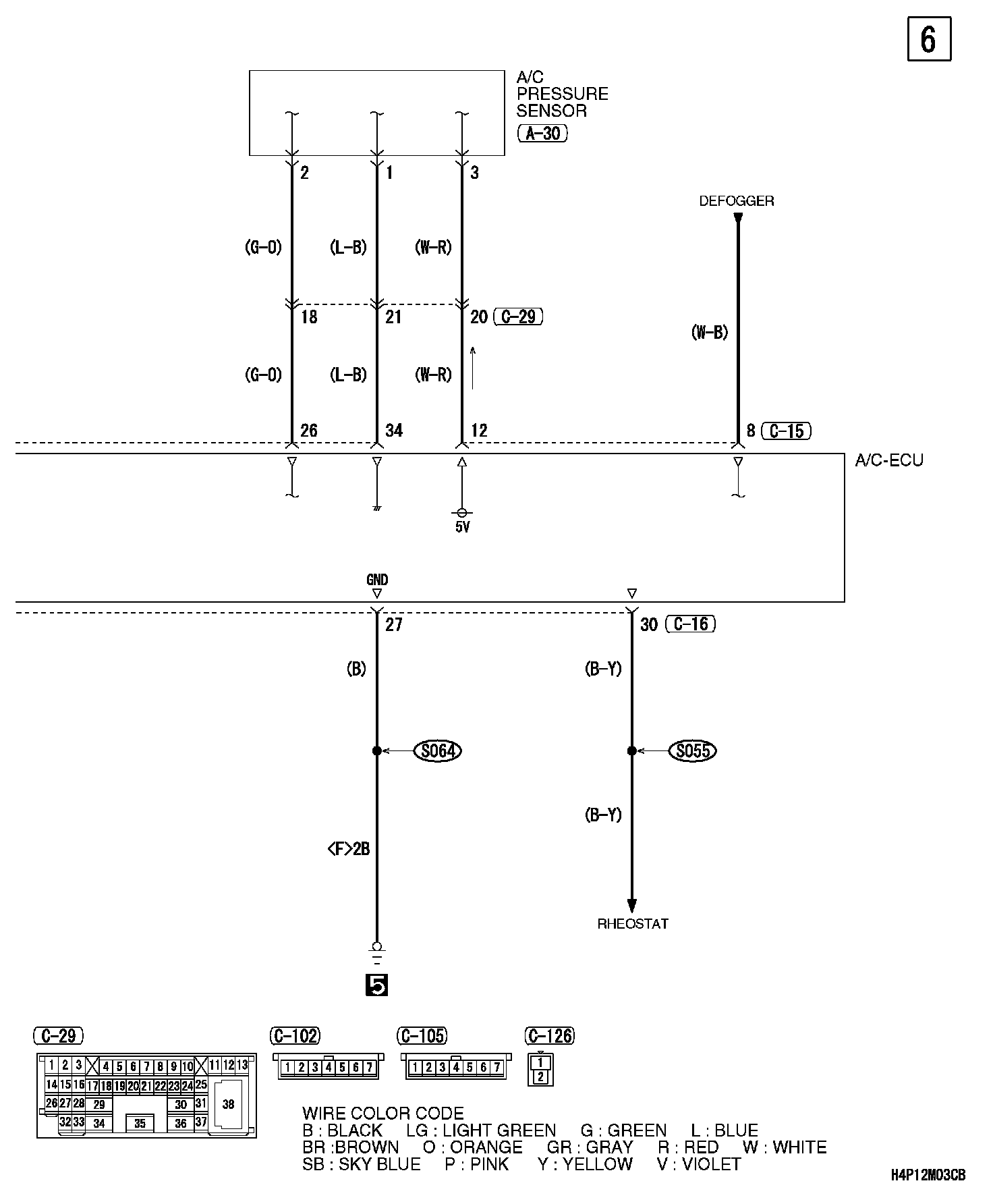

Manual Air Conditioning System (MIDDLE) Part 6:

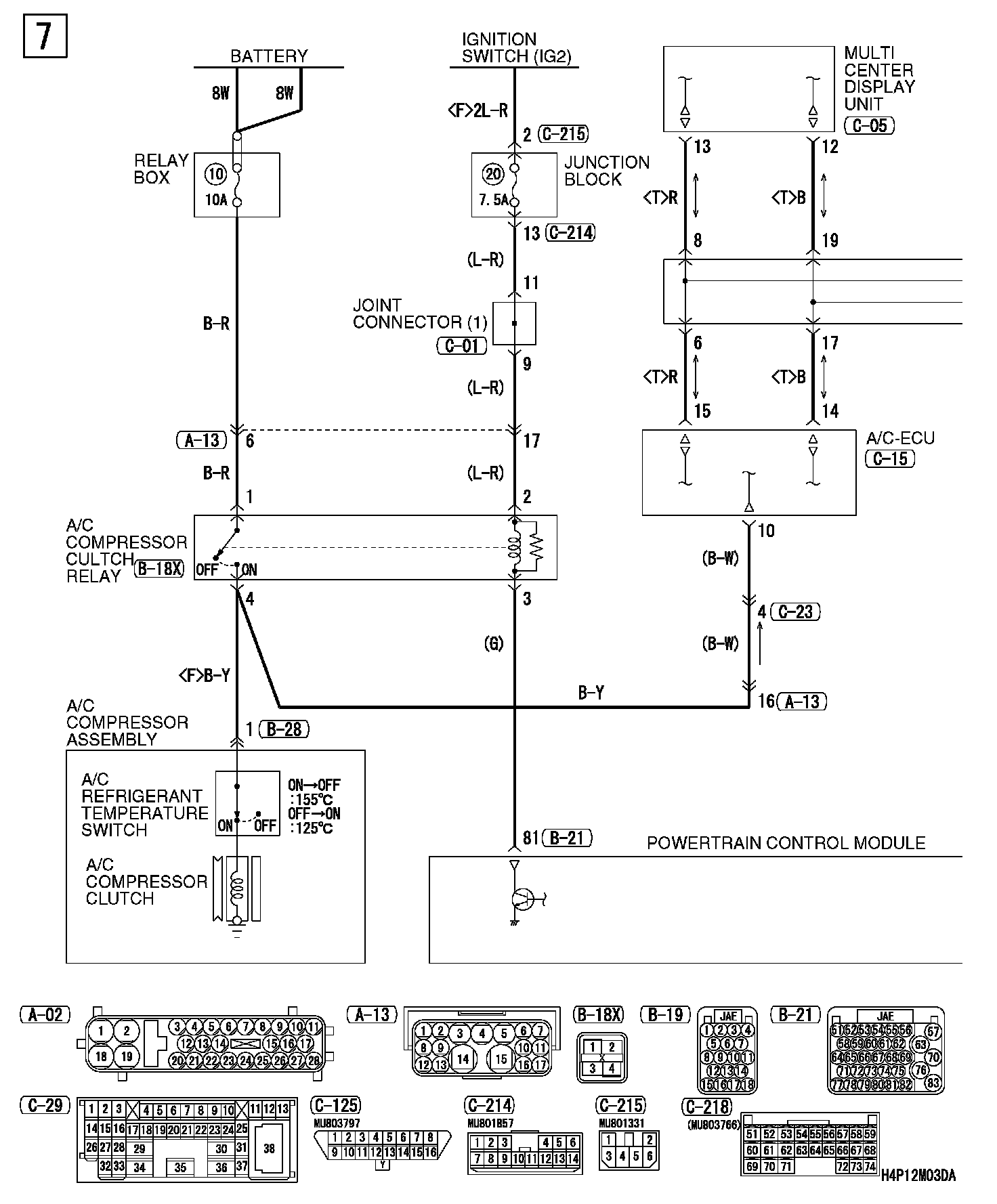

Manual Air Conditioning System (MIDDLE) Part 7:

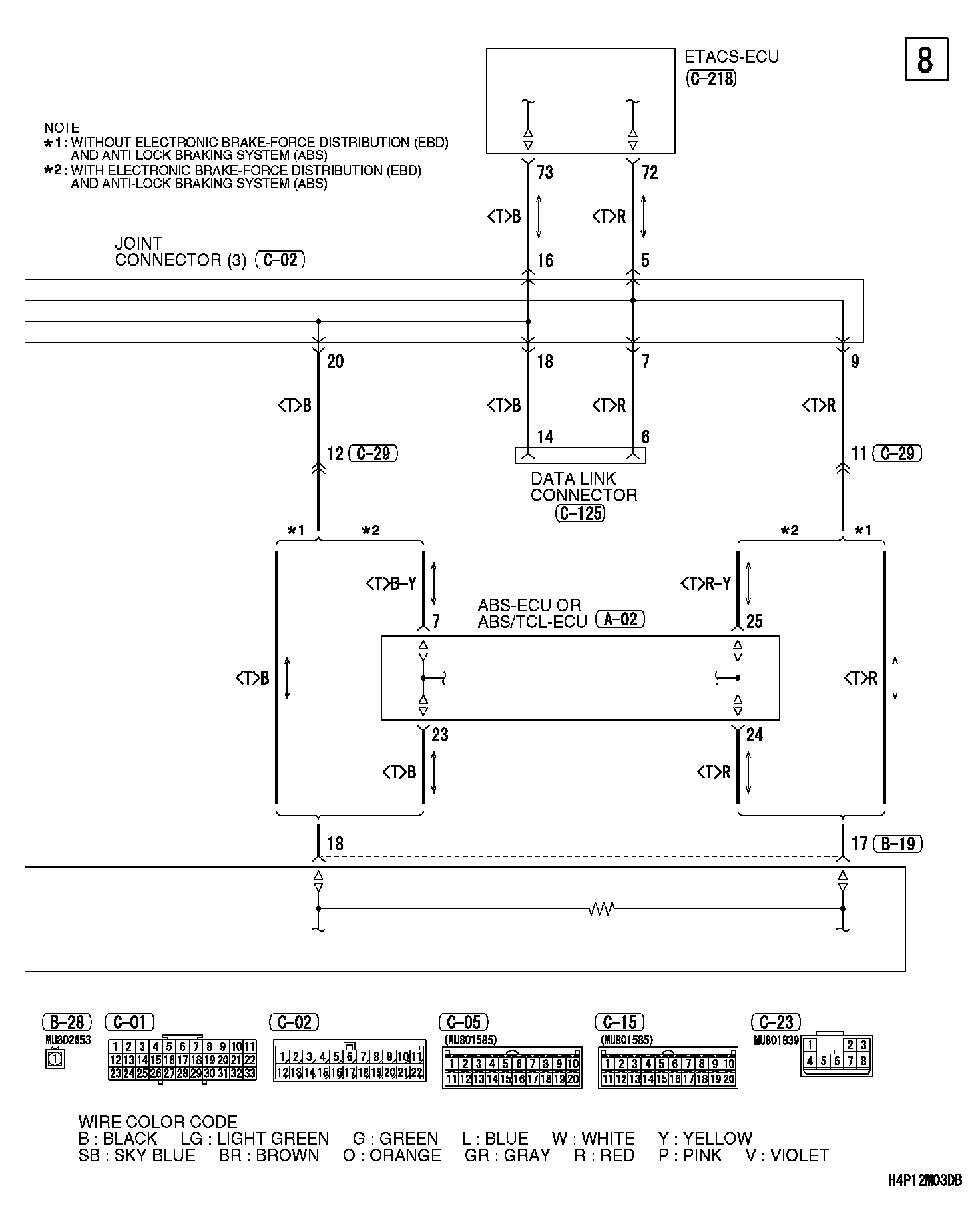

Manual Air Conditioning System (MIDDLE) Part 8:

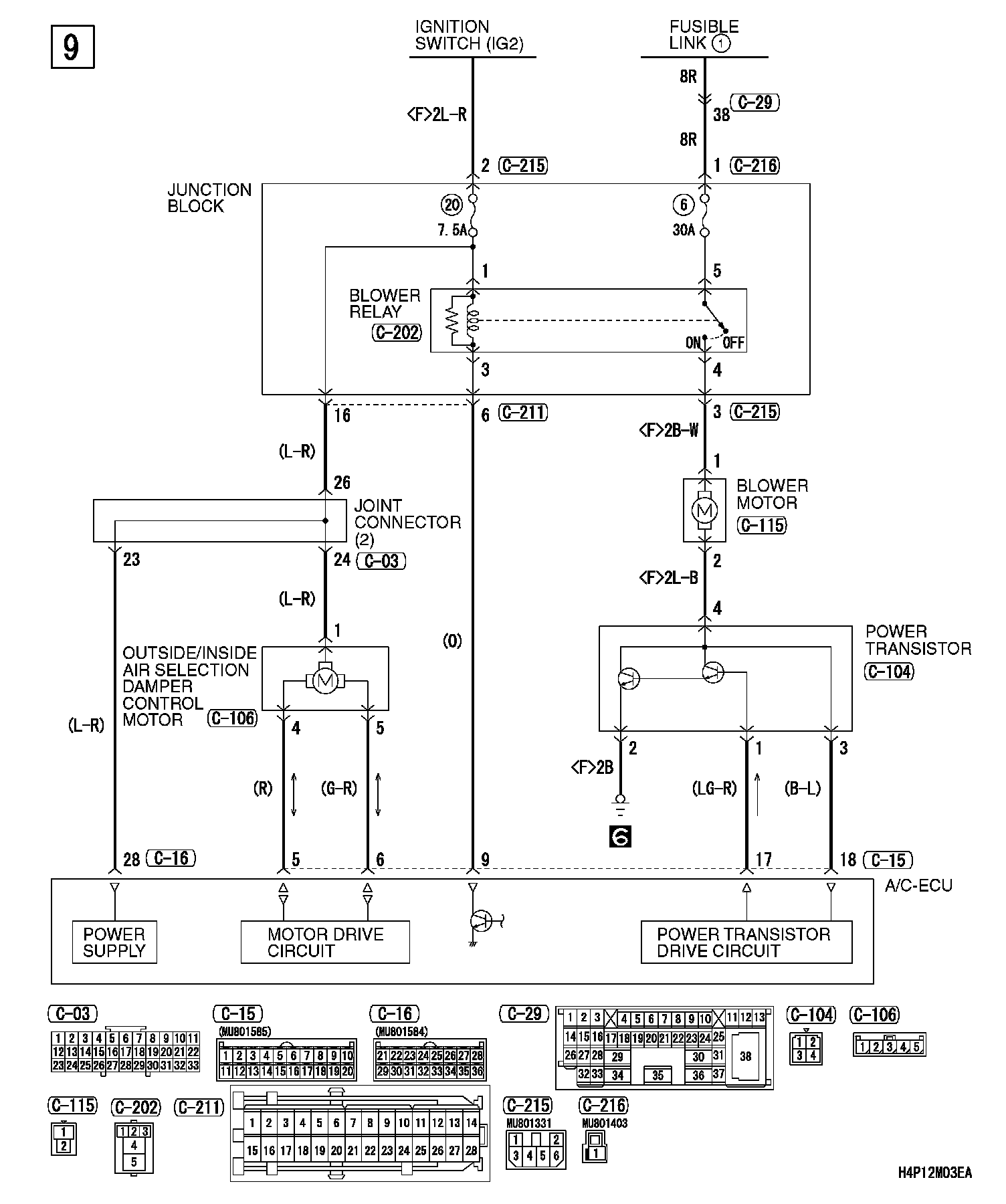

Manual Air Conditioning System (MIDDLE) Part 9:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
