Compressor Clutch Operation Check

COMPRESSOR AIR CONDITIONING




COMPRESSOR CLUTCH OPERATION CHECK

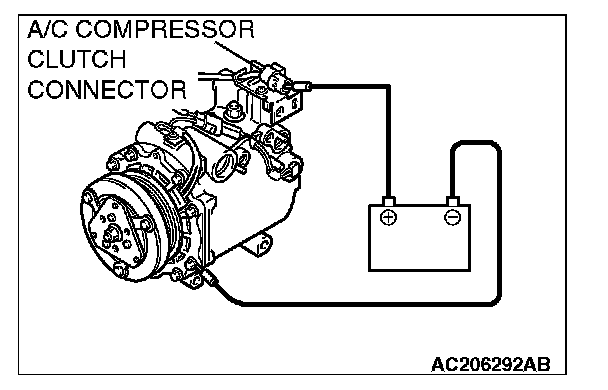

Connect the compressor connector terminal to the battery positive (+) terminal and ground the battery's negative (-) terminal to the compressor unit. At that time, the air conditioning compressor clutch should make a definite operating sound.
