Automatic Air Conditioning System

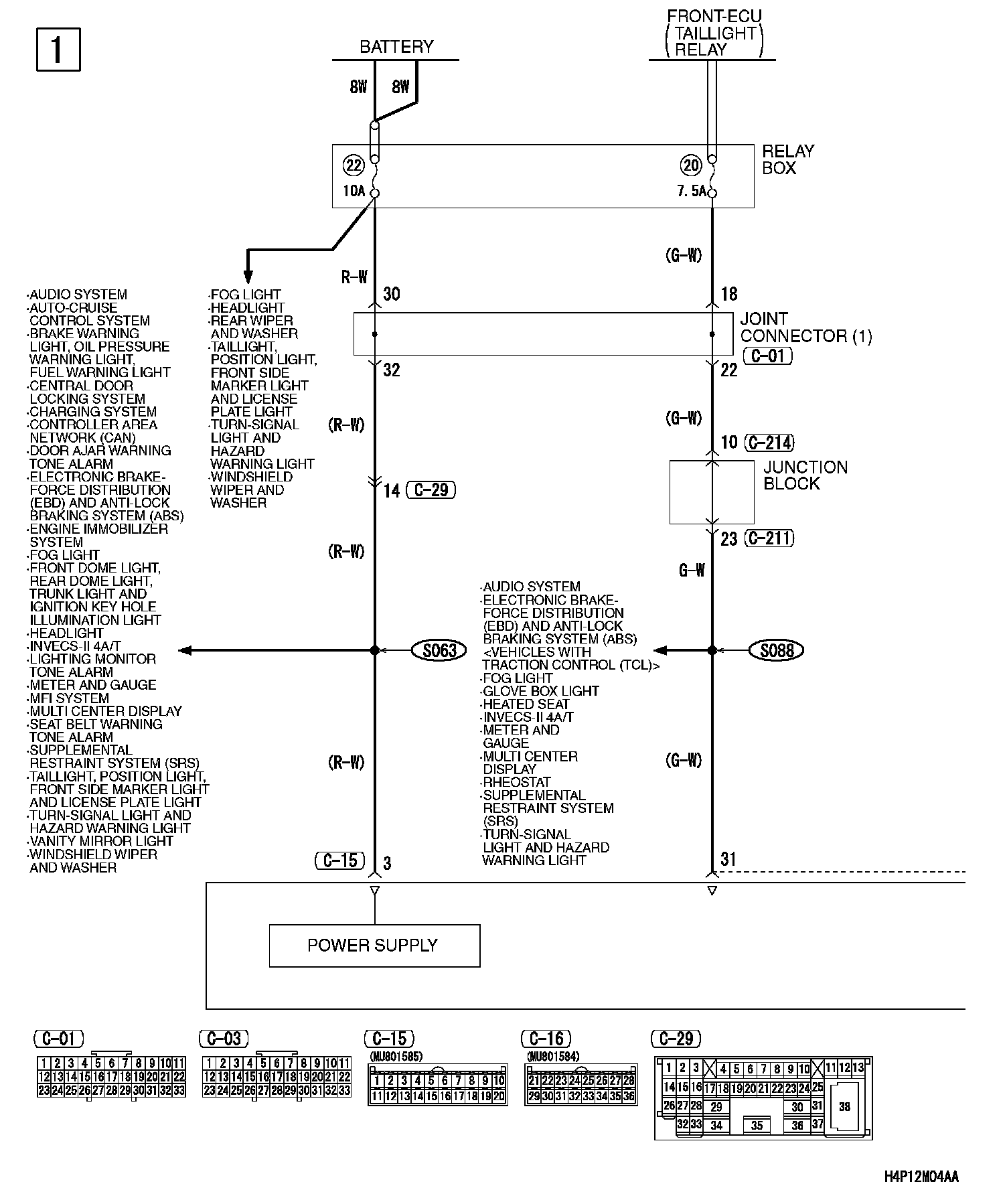

Automatic Air Condition System Part 1:

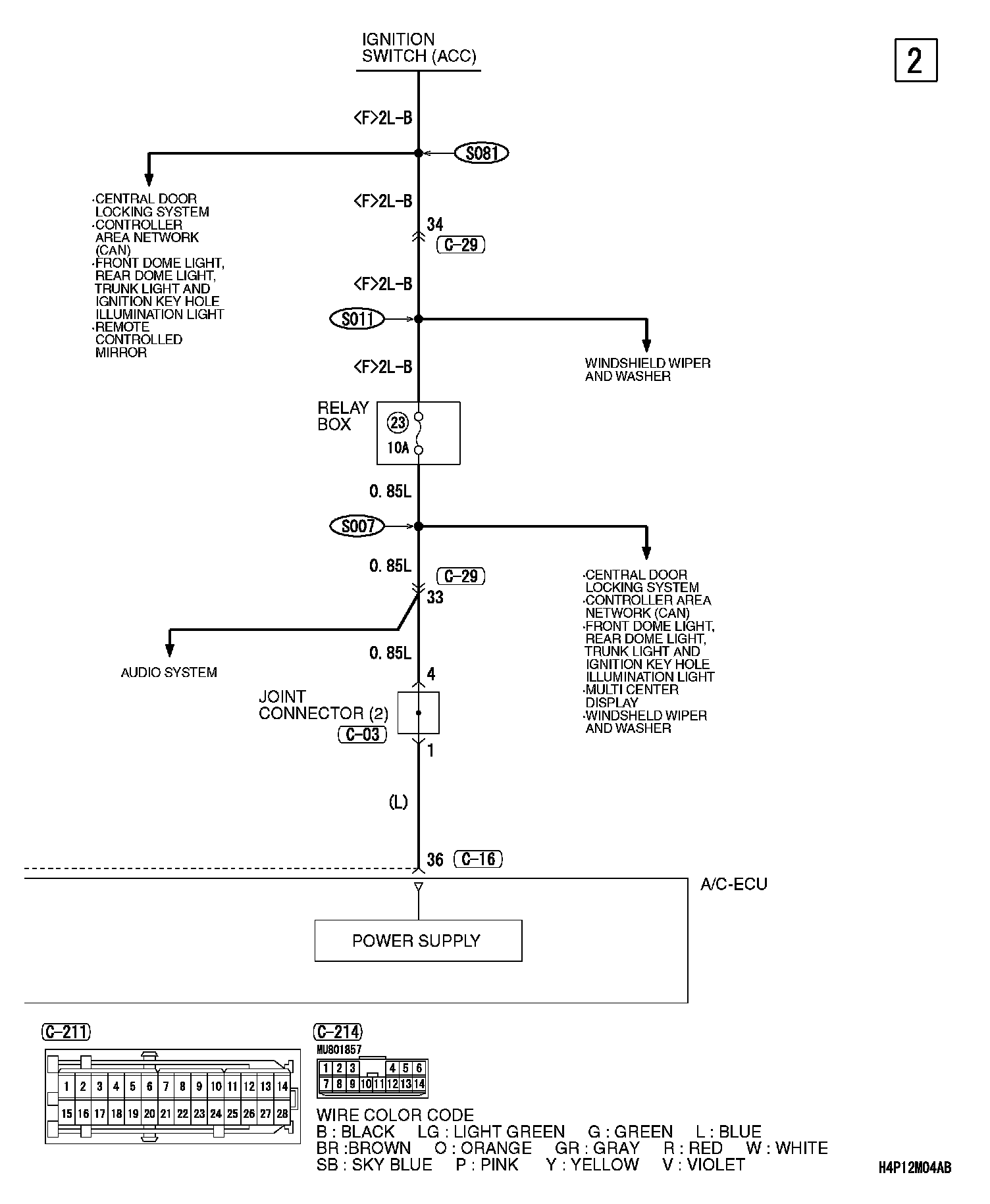

Automatic Air Condition System Part 2:

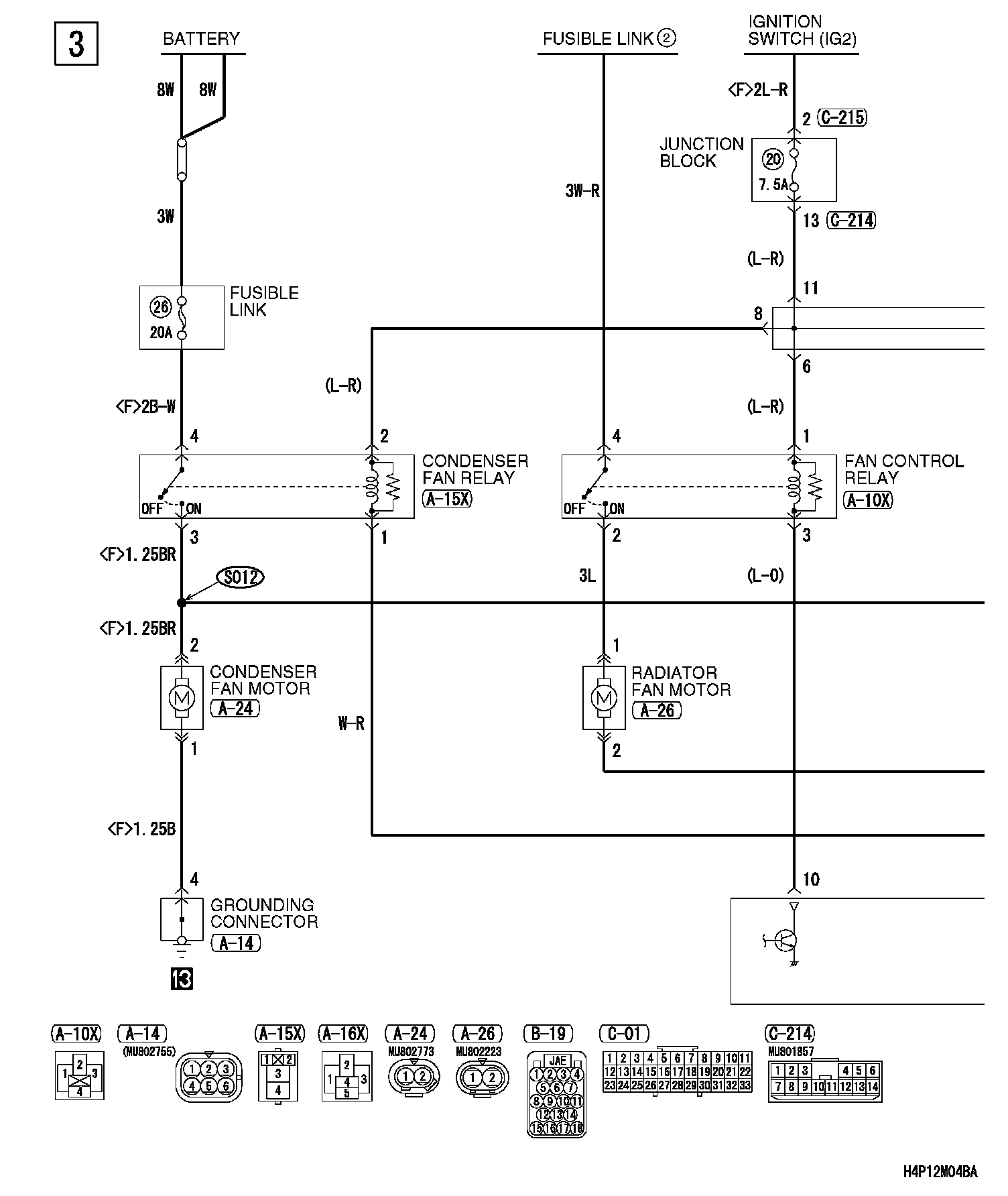

Automatic Air Condition System Part 3:

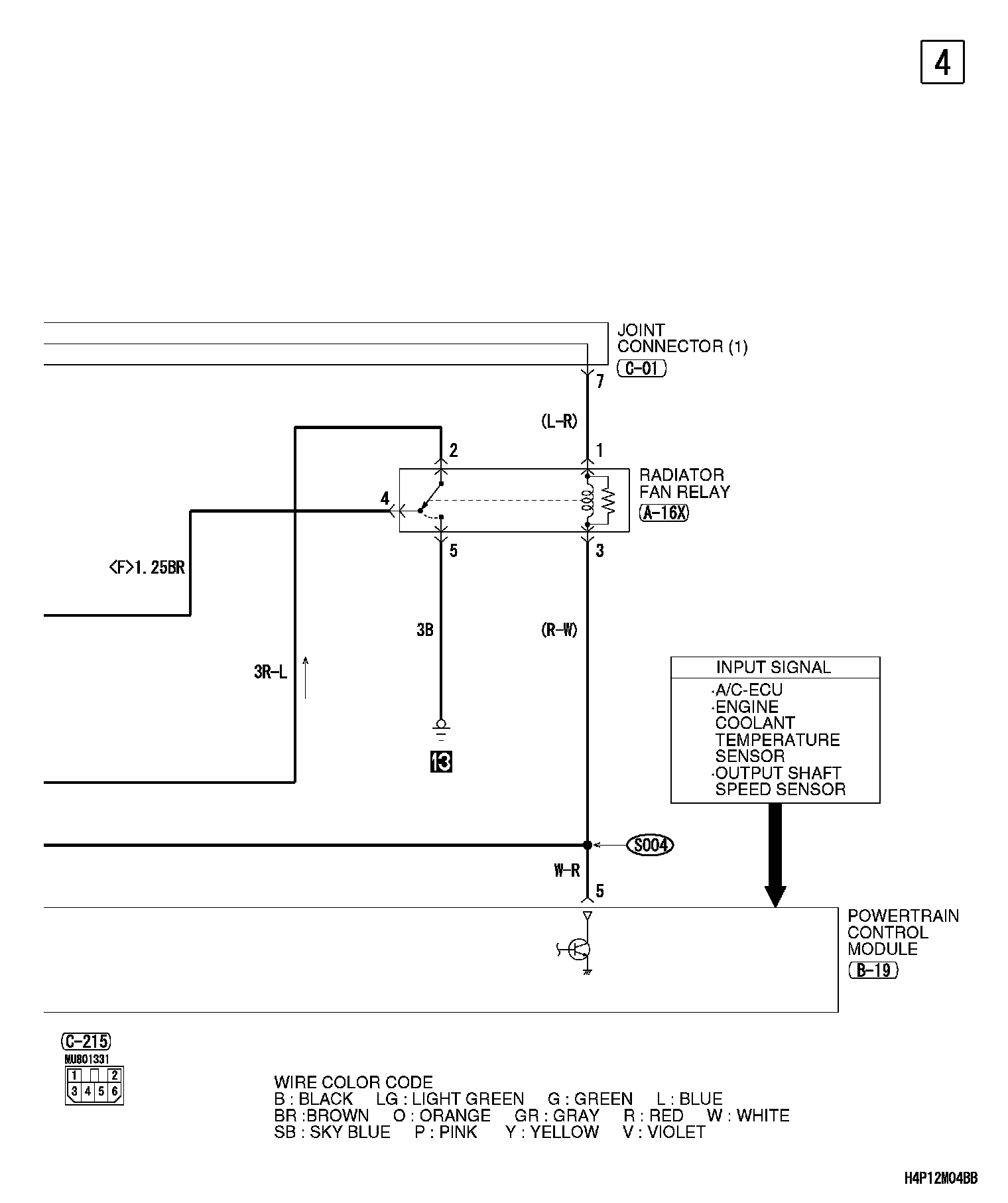

Automatic Air Condition System Part 4:

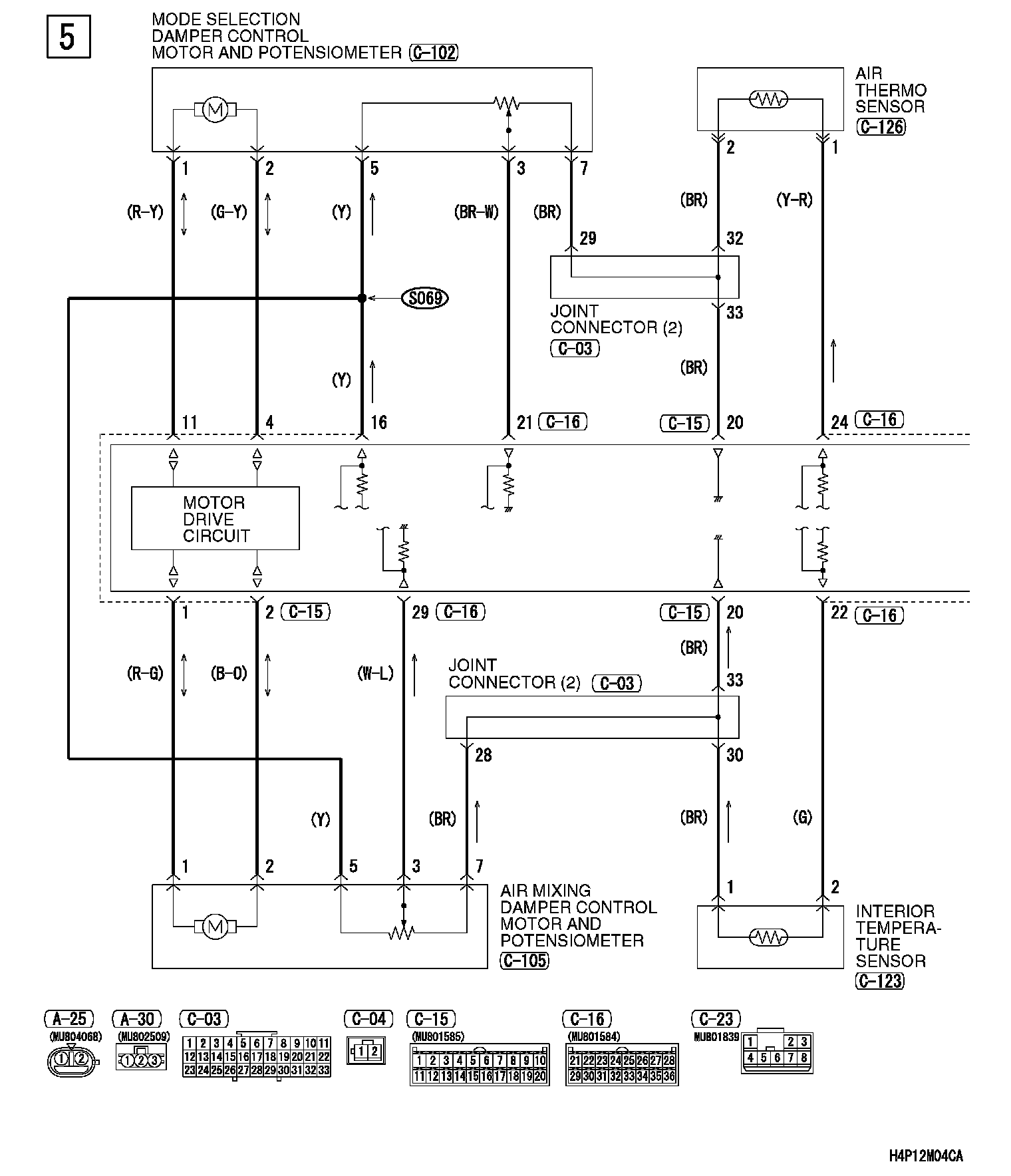

Automatic Air Condition System Part 5:

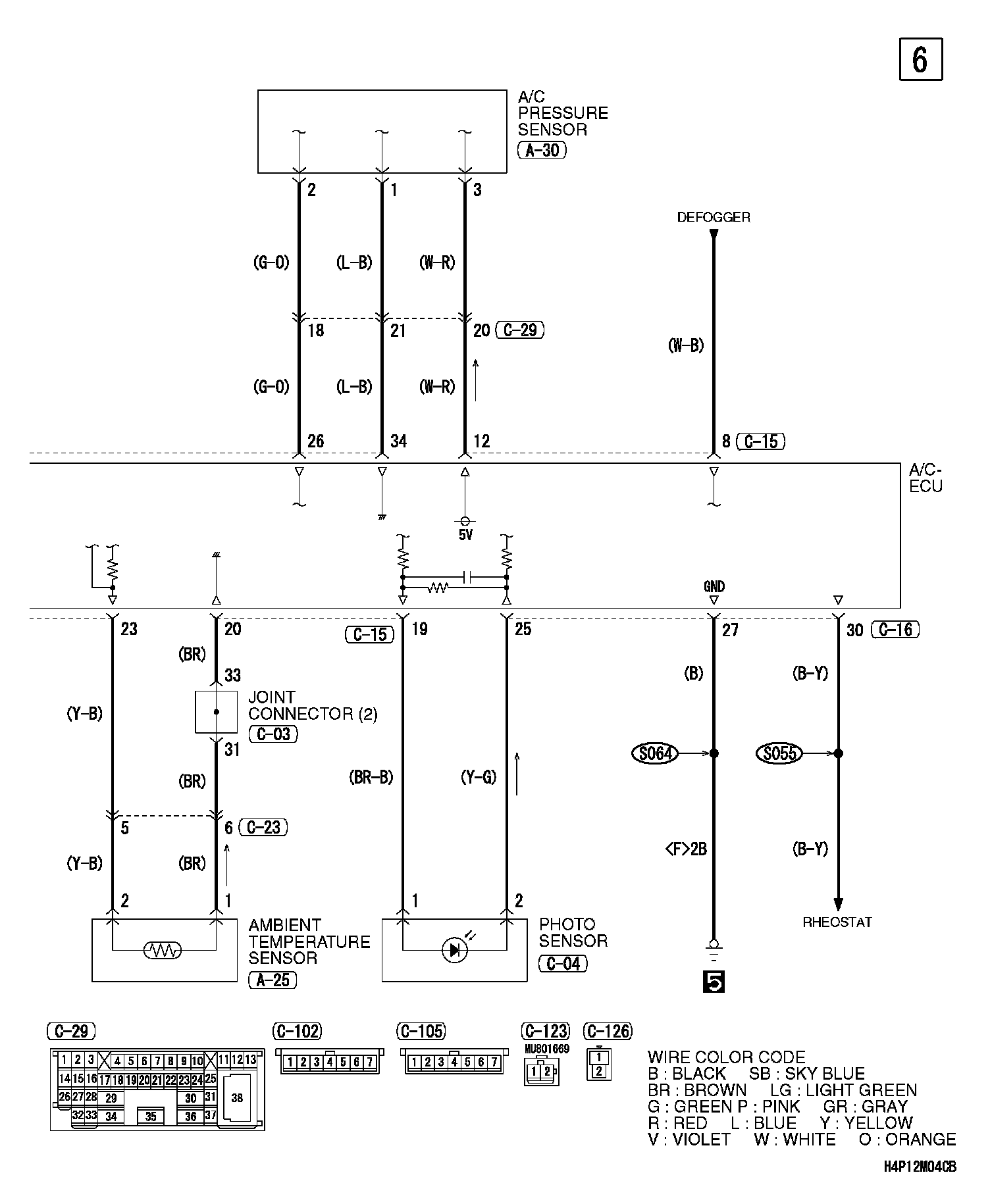

Automatic Air Condition System Part 6:

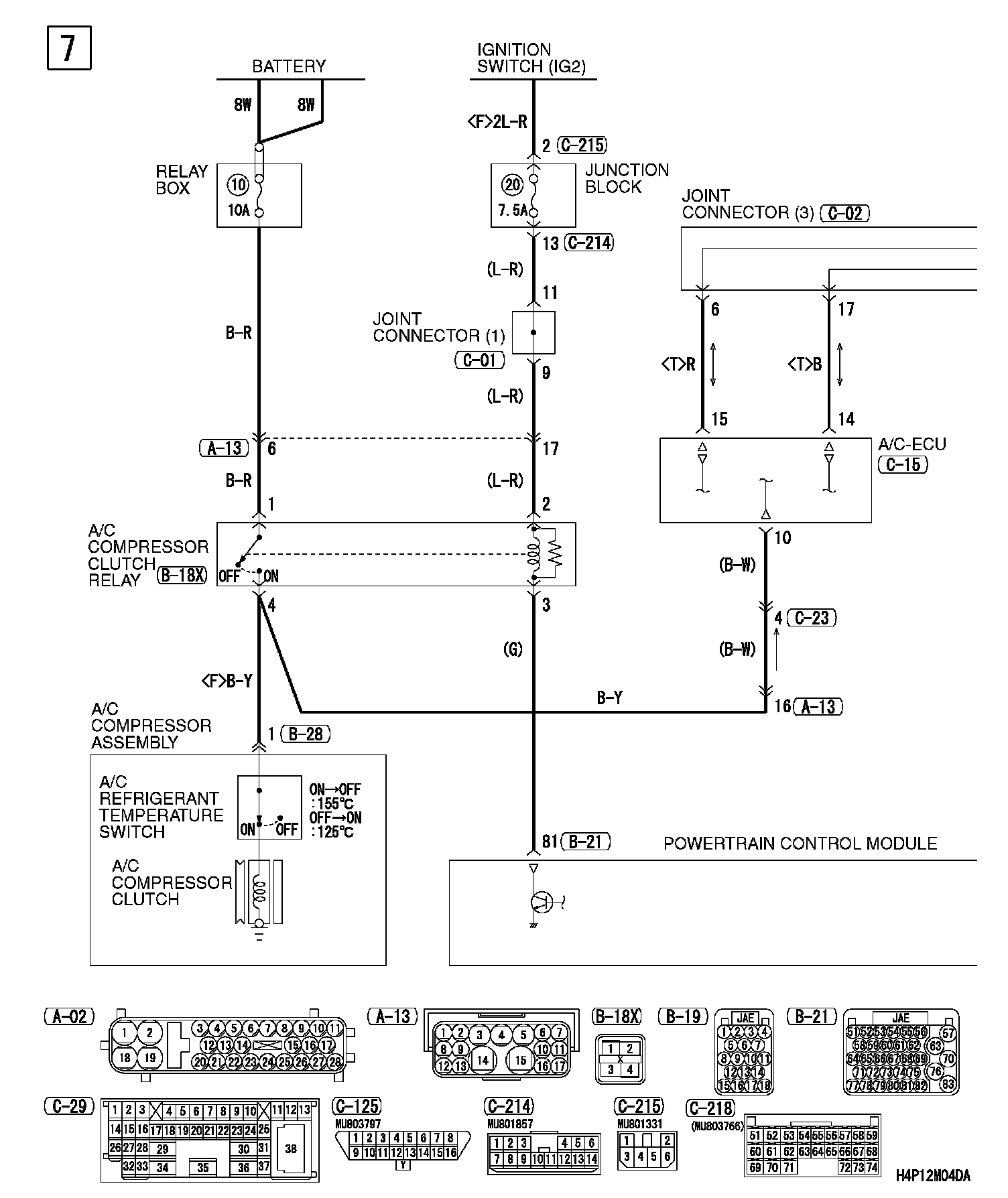

Automatic Air Condition System Part 7:

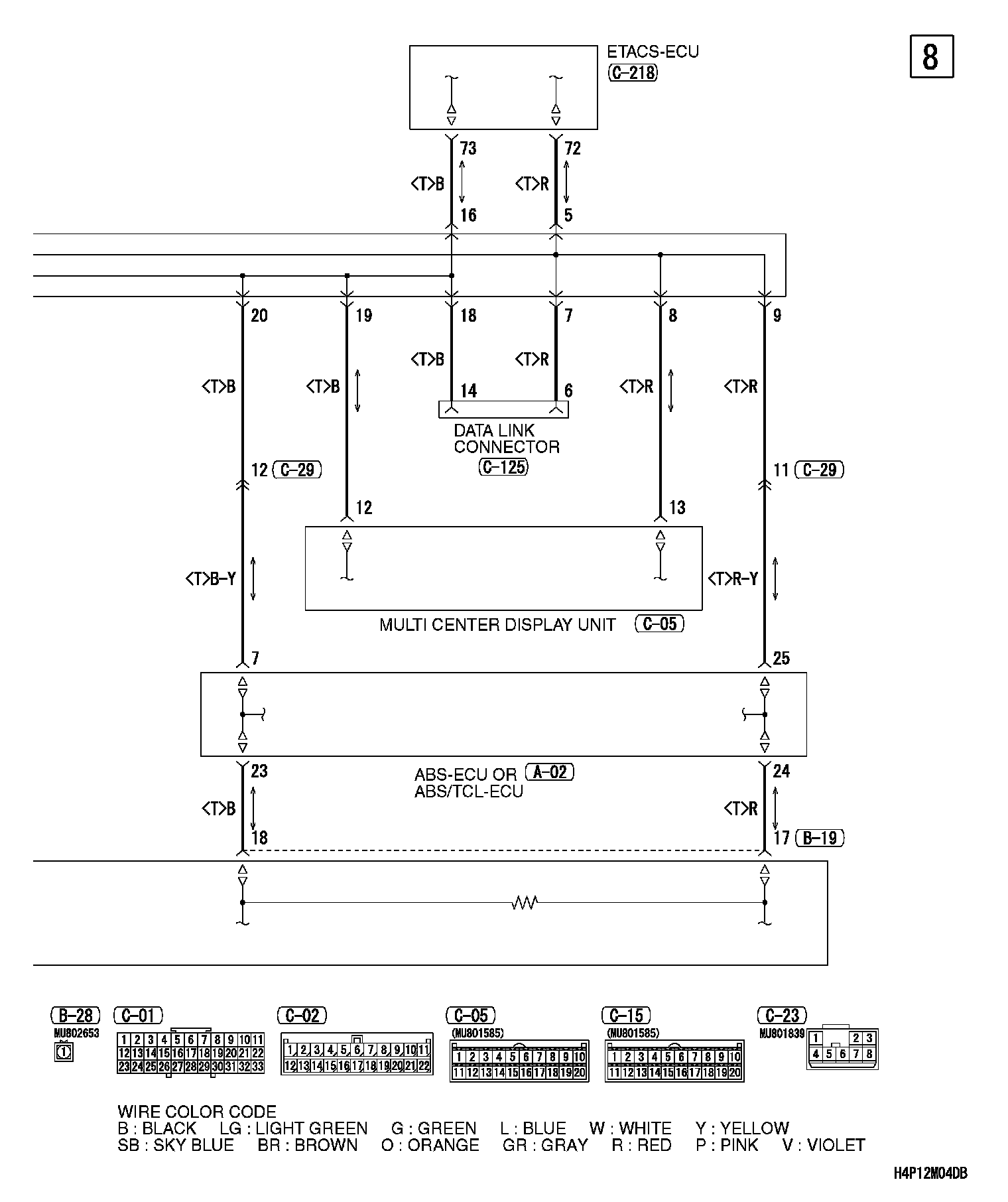

Automatic Air Condition System Part 8:

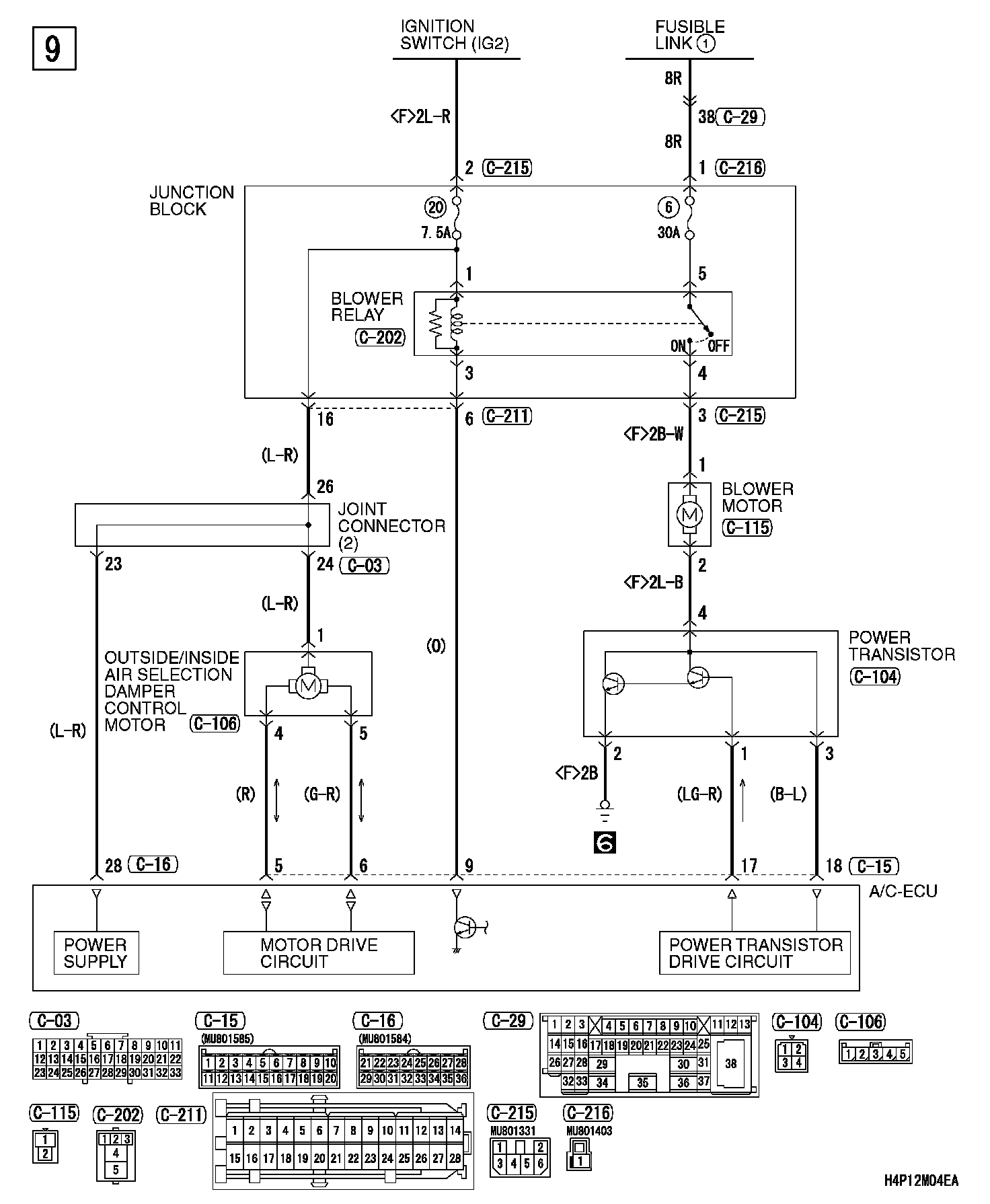

Automatic Air Condition System Part 9:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
