Circuit Diagram

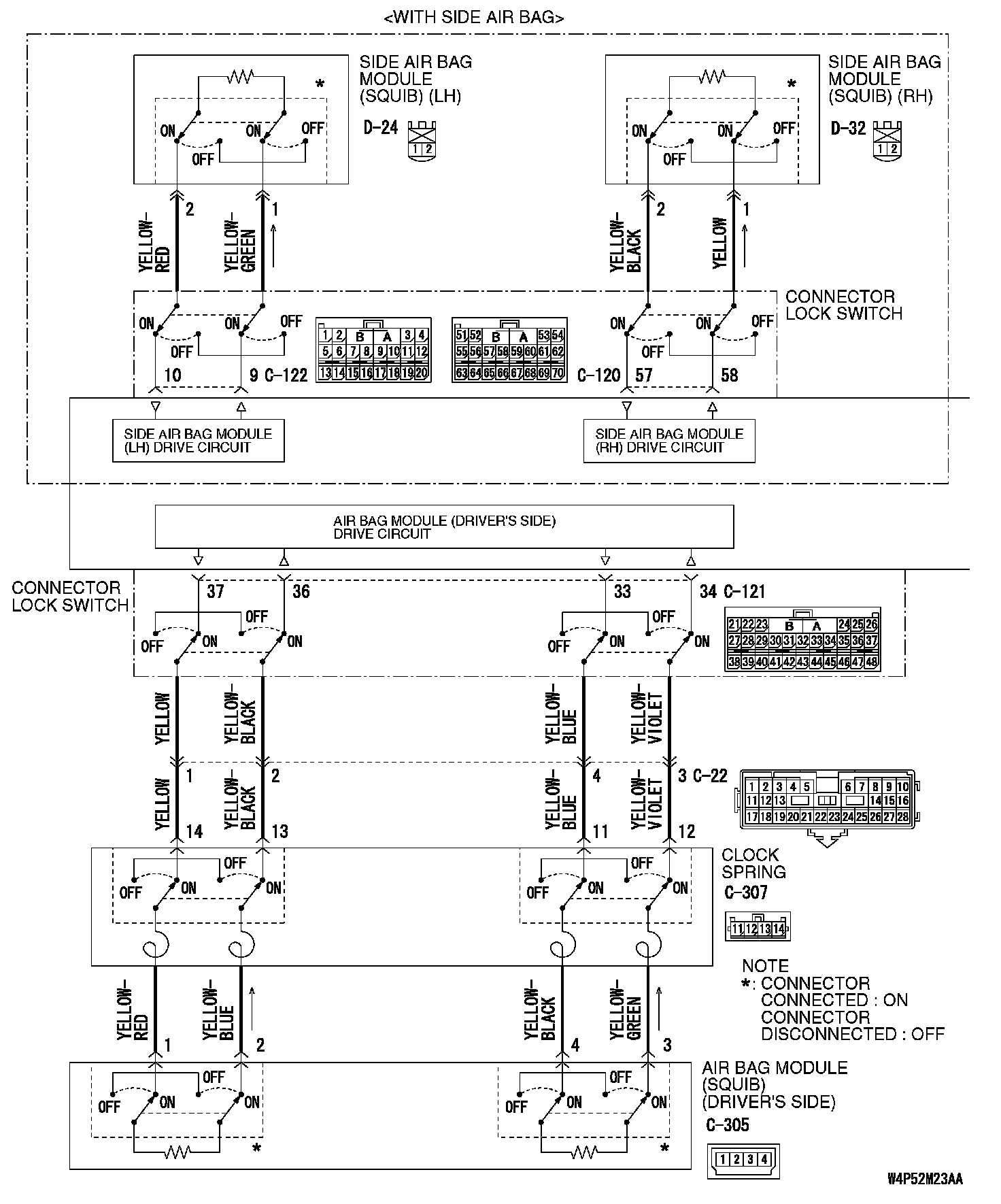

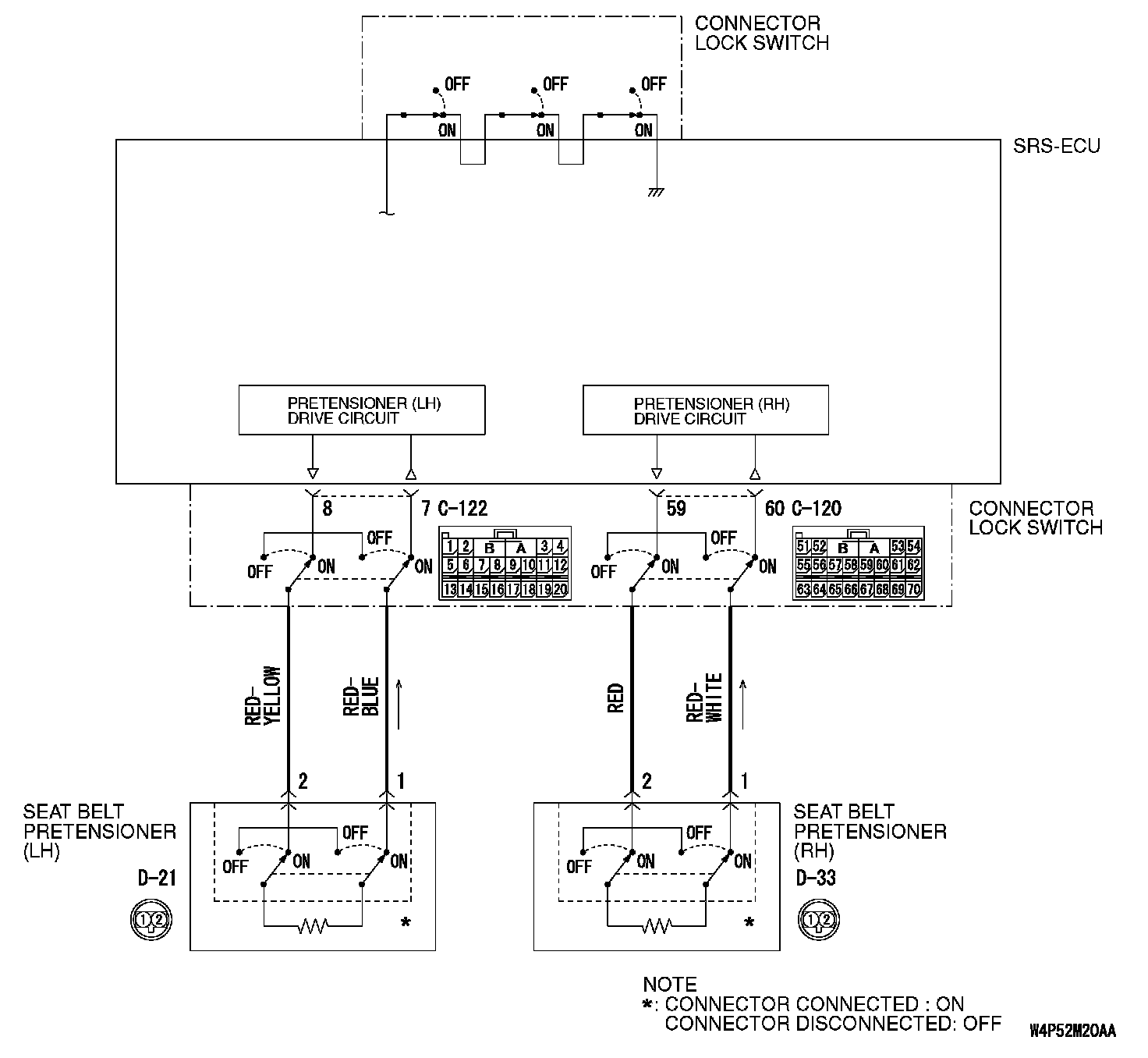

CIRCUIT DIAGRAM

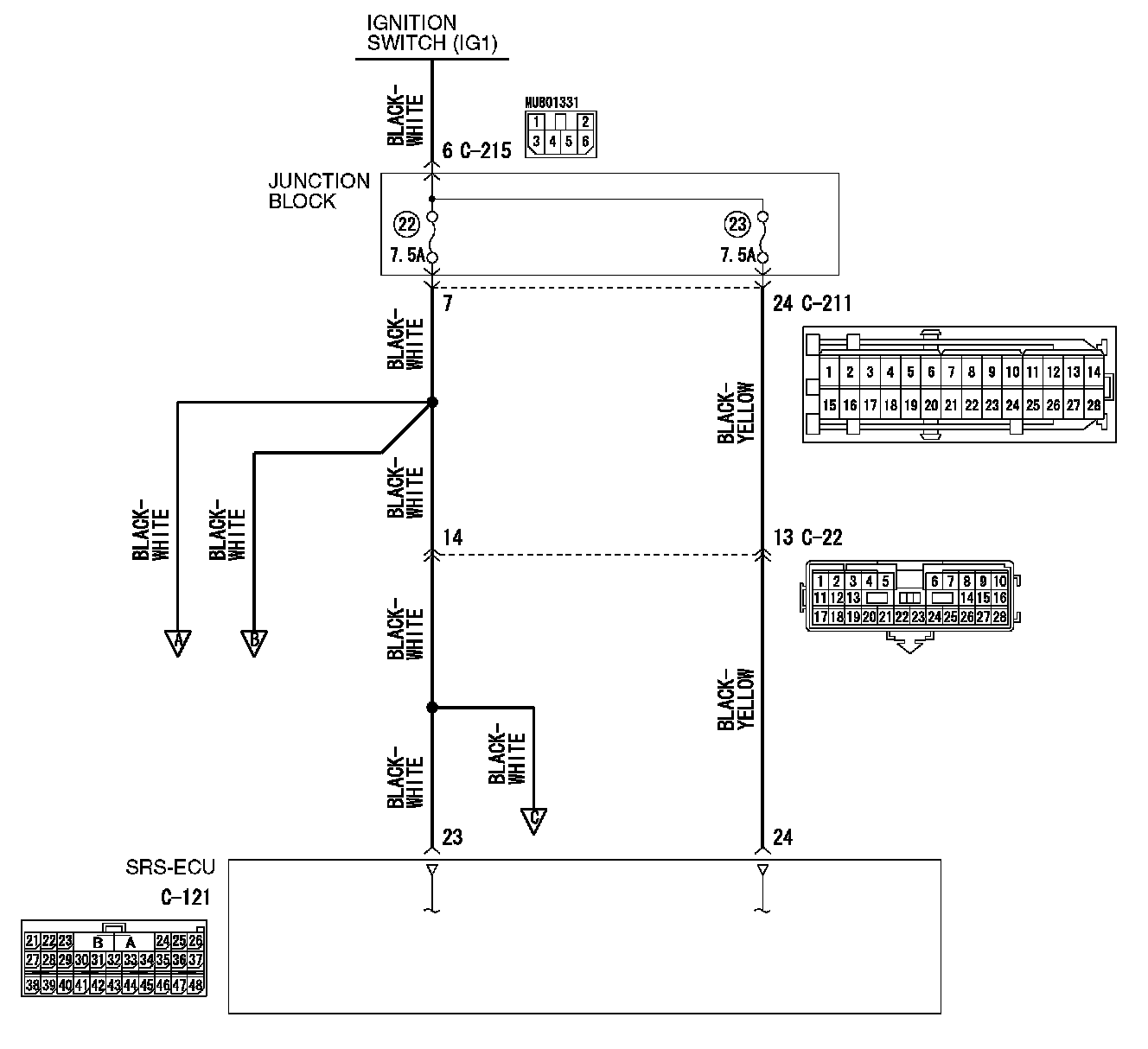

Part 1:

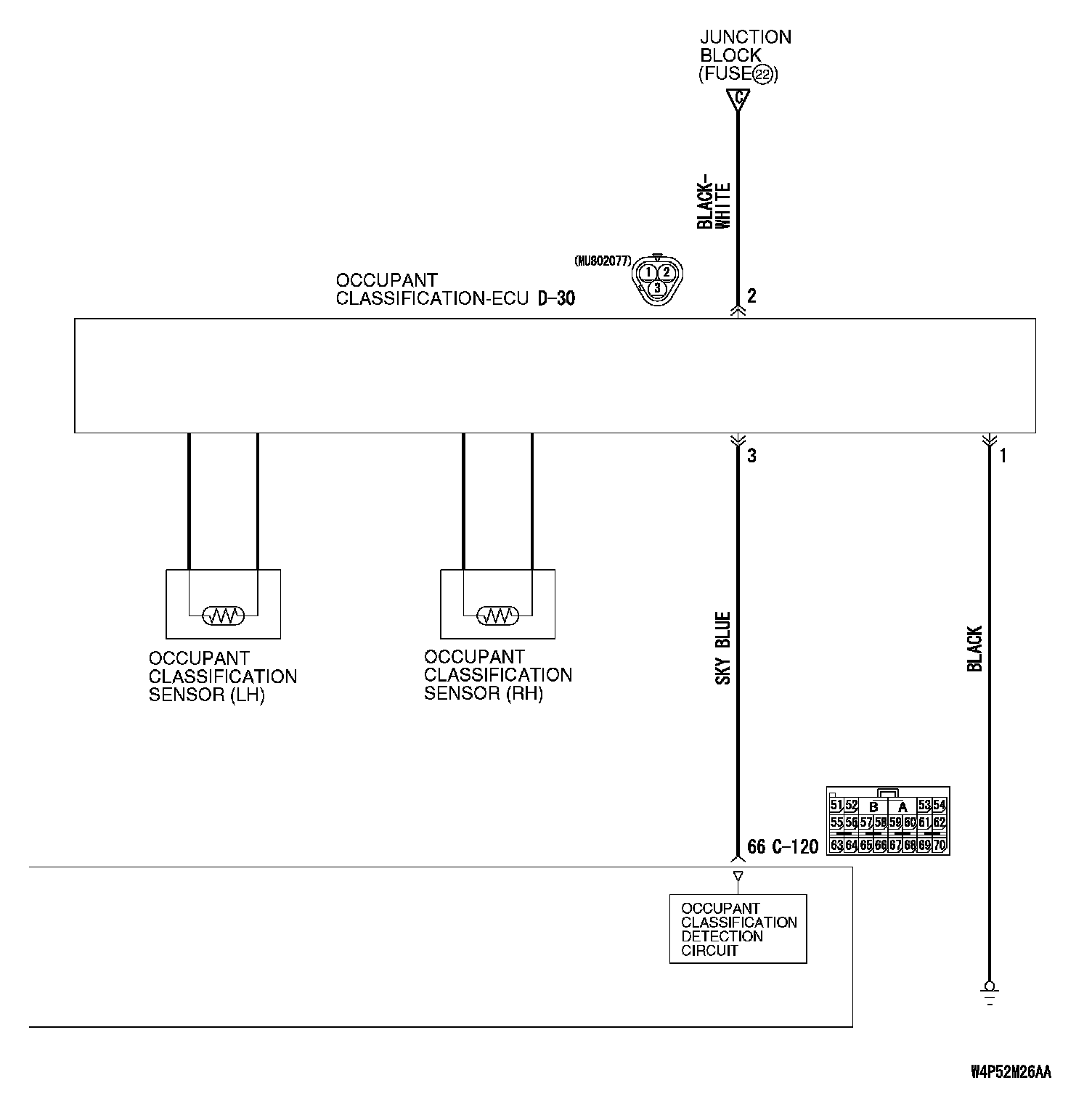

Part 2:

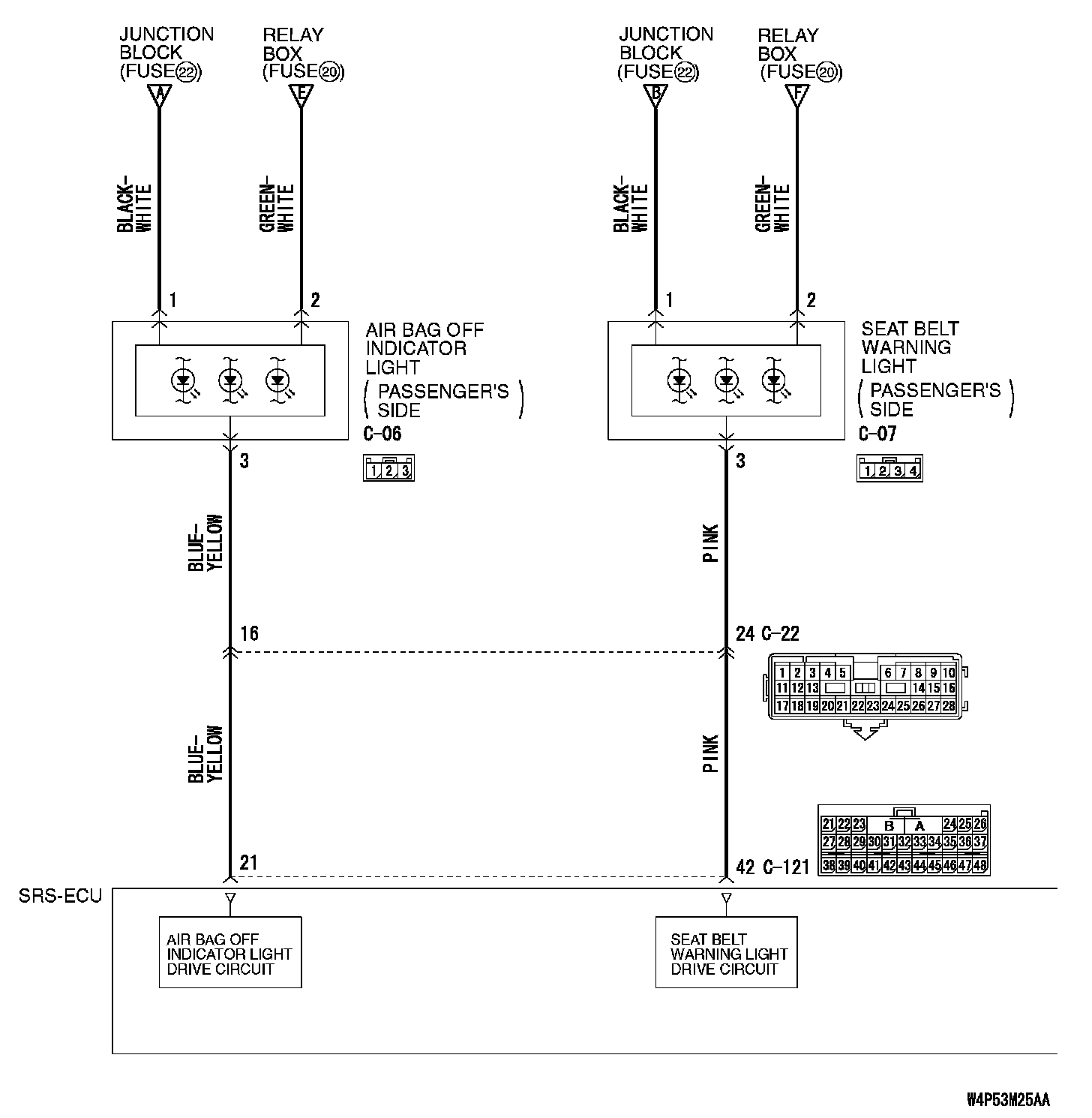

Part 3:

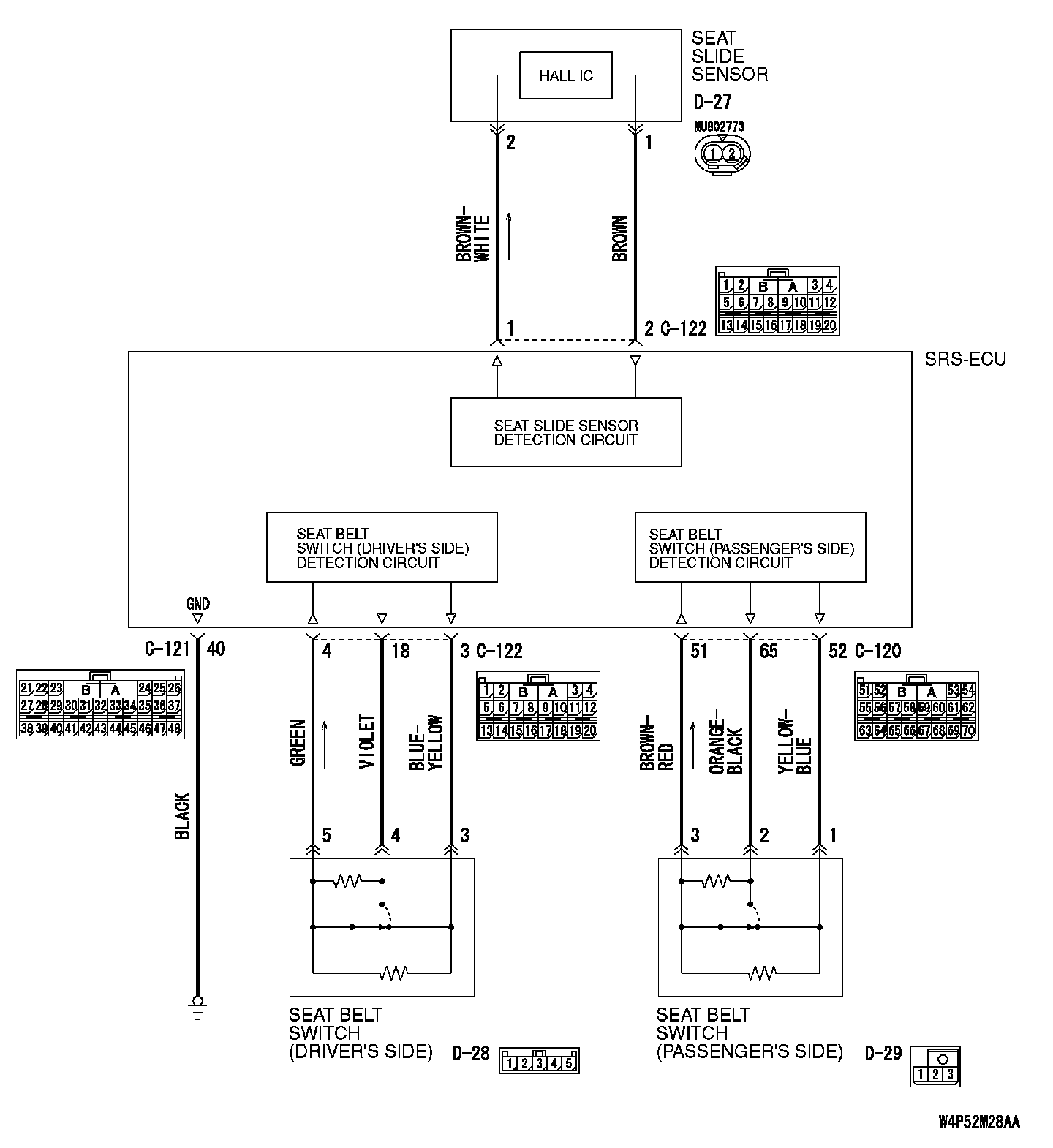

Part 4:

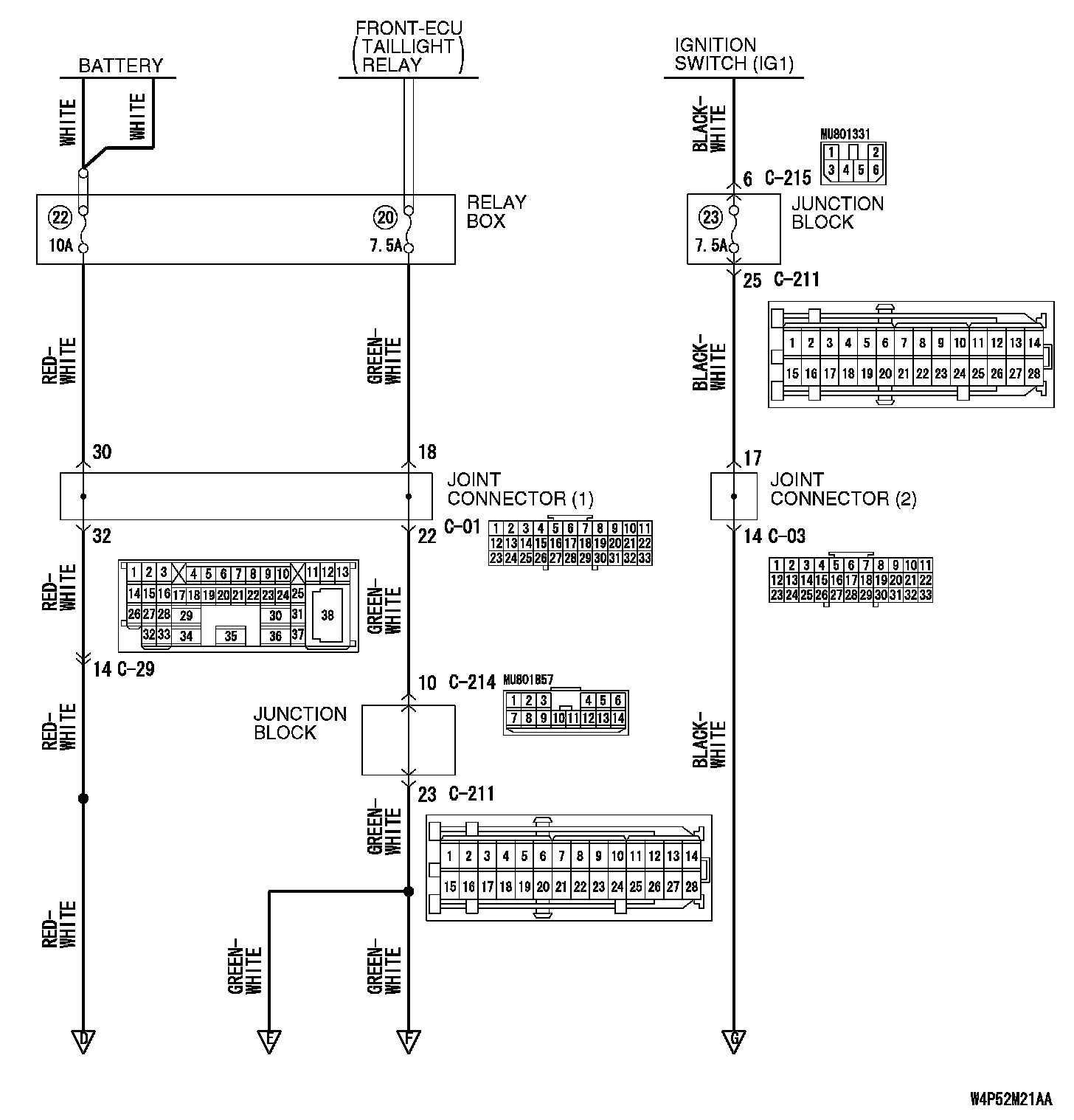

Part 5:

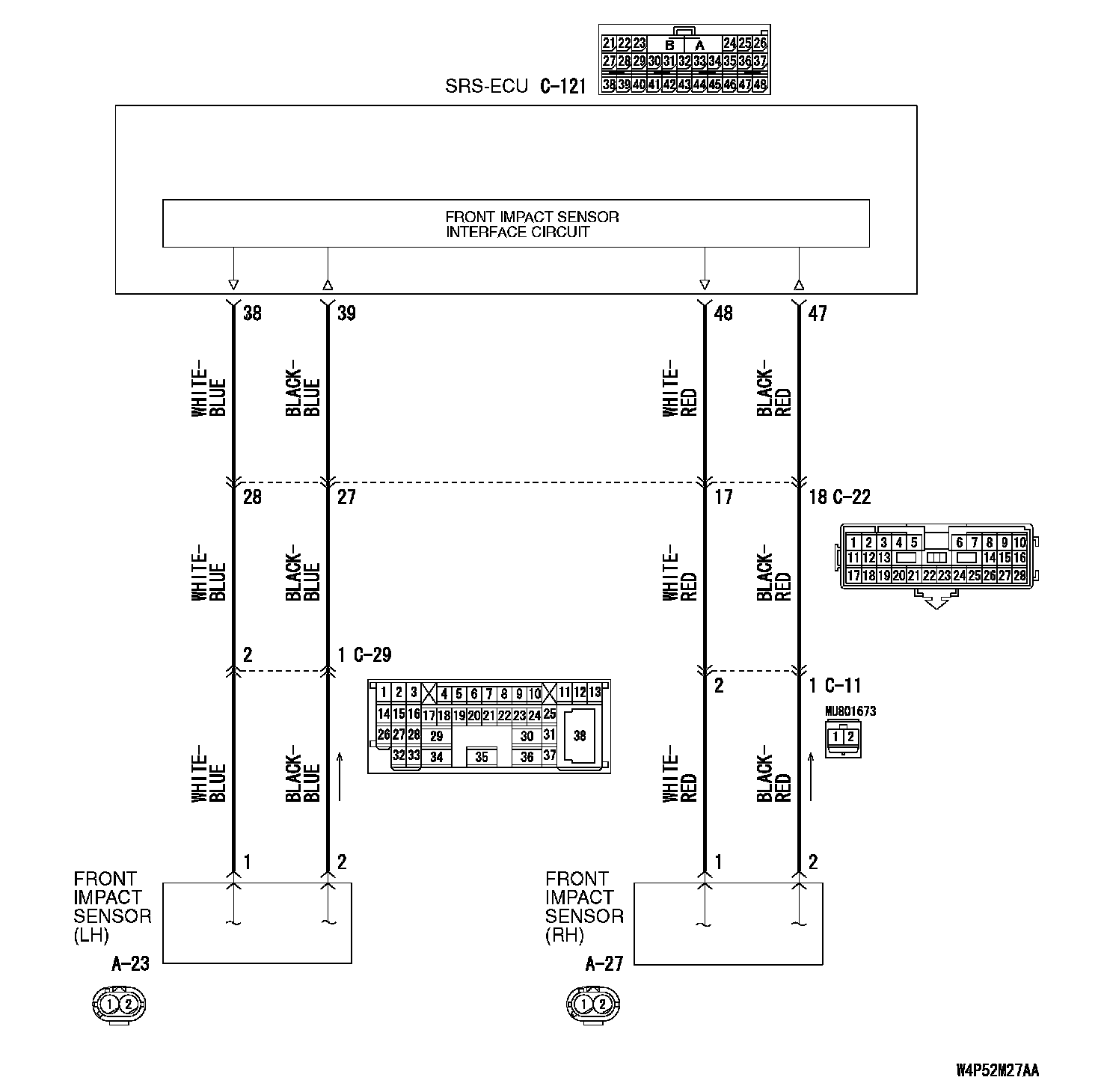

Part 6:

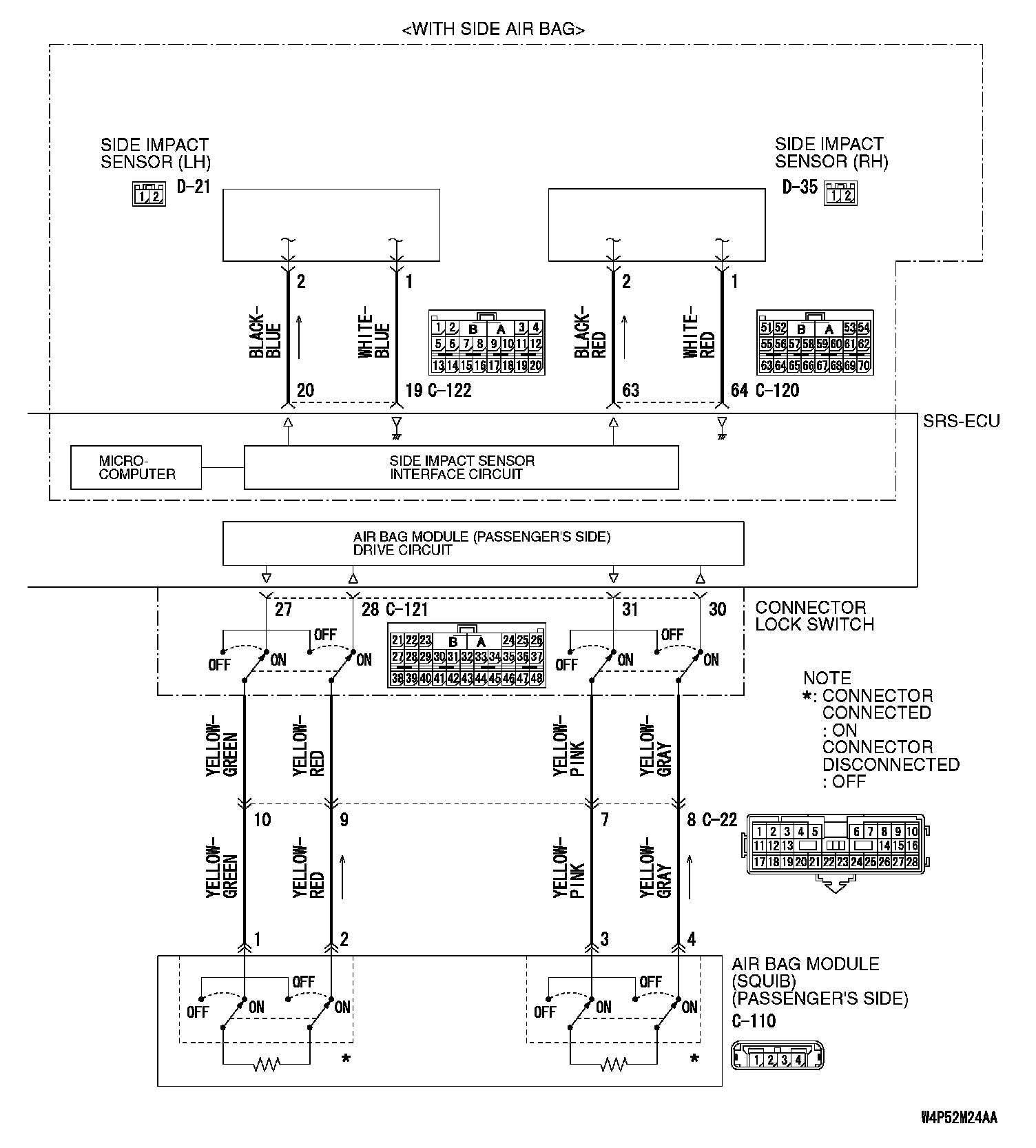

Part 7:

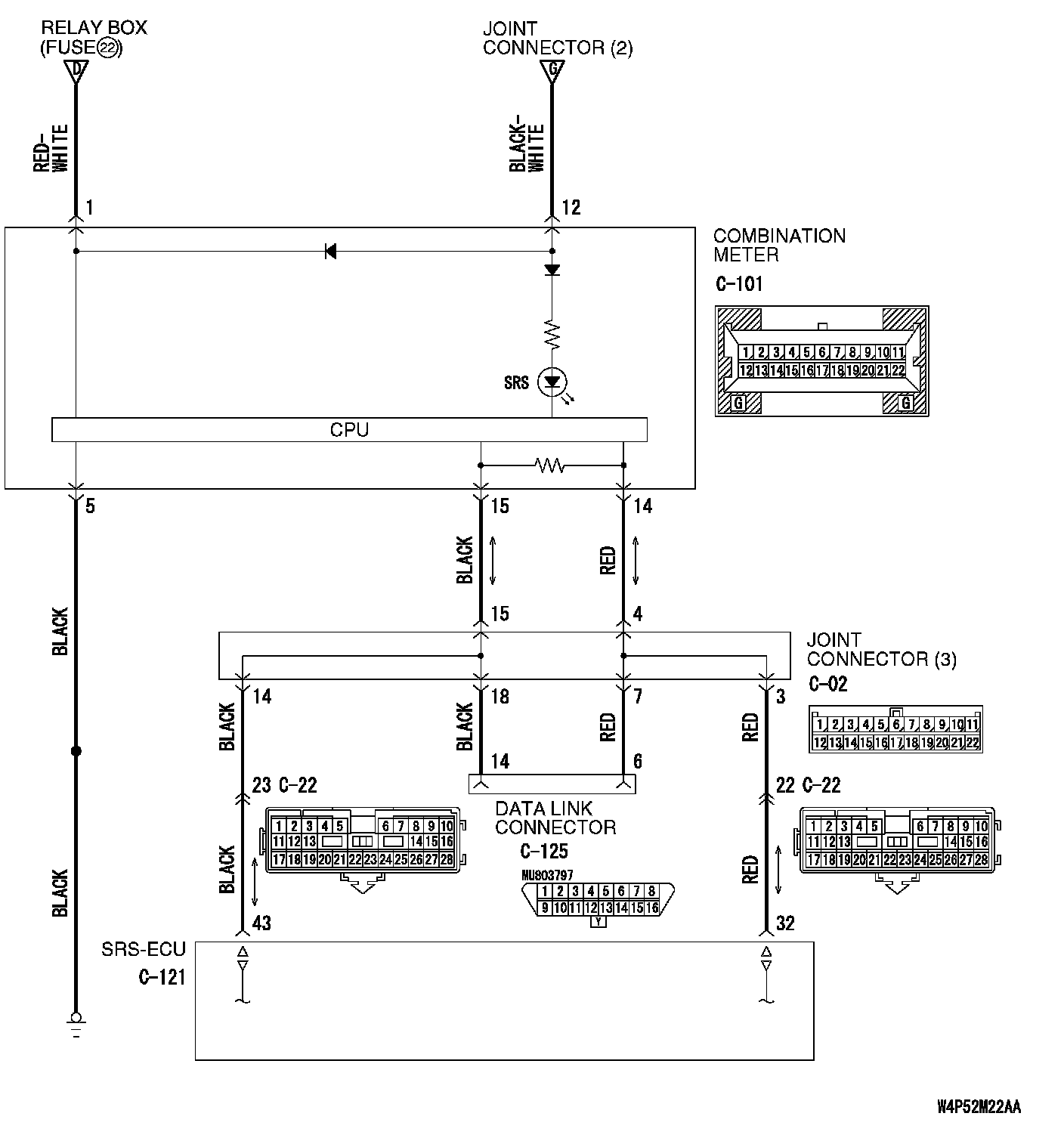

Part 8:

Part 9:

Part 10:

WARNING:
- Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness given in SRS Service Precautions): replace the wiring if necessary, after reading and following all precautions and procedures.
- Do not use an analog Ohmmeter to check the SRS wiring or components; use only the special tools and a digital multi-meter (Refer to Tools and Equipment/Test Equipment).

CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.
