Resistance and Continuity Between Harness-Side Connector Terminals

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS

Required Special Tool:
MB991970: ABS check harness




1. Disconnect the ABS/TCL-ECU connector A-02 and connect special tool MB991970 to the A-02 body-side harness connector. Then turn the ignition switch to the "LOCK" (OFF) position and checking resistance and continuity.

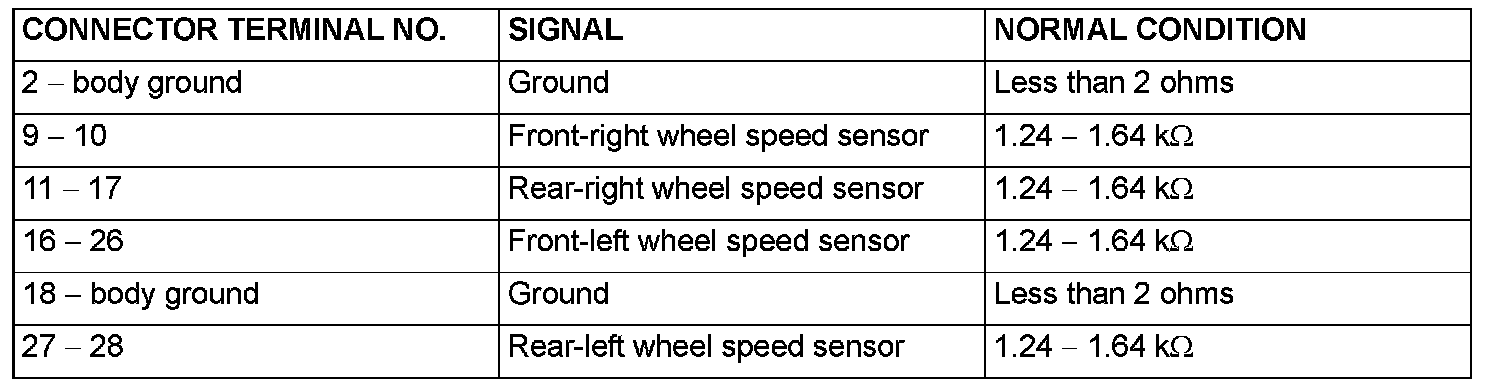

2. Check the resistance and continuity between the terminals indicated in the table given.

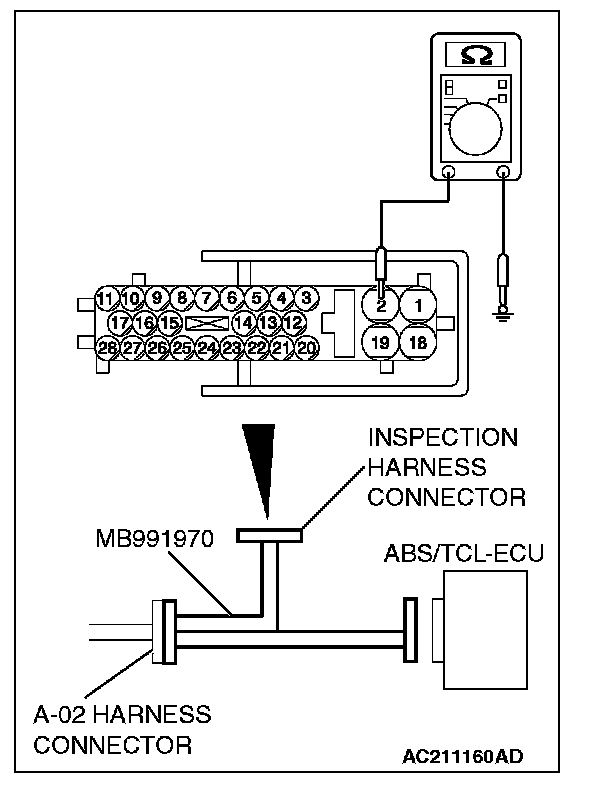

3. The terminal layout is shown in the illustration.
