Removal and Replacement

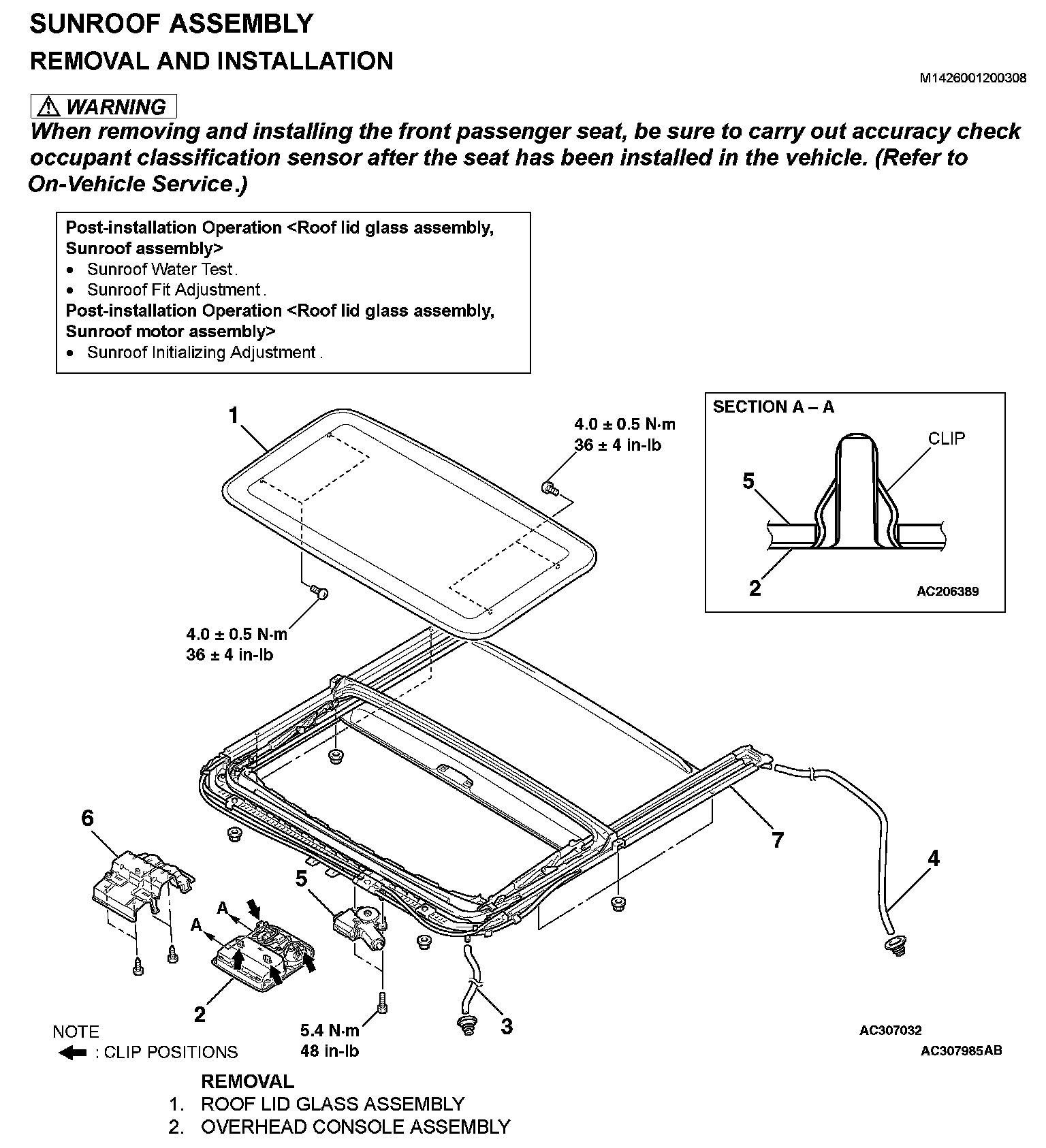

SUNROOF ASSEMBLY

Part 1:

Part 2:

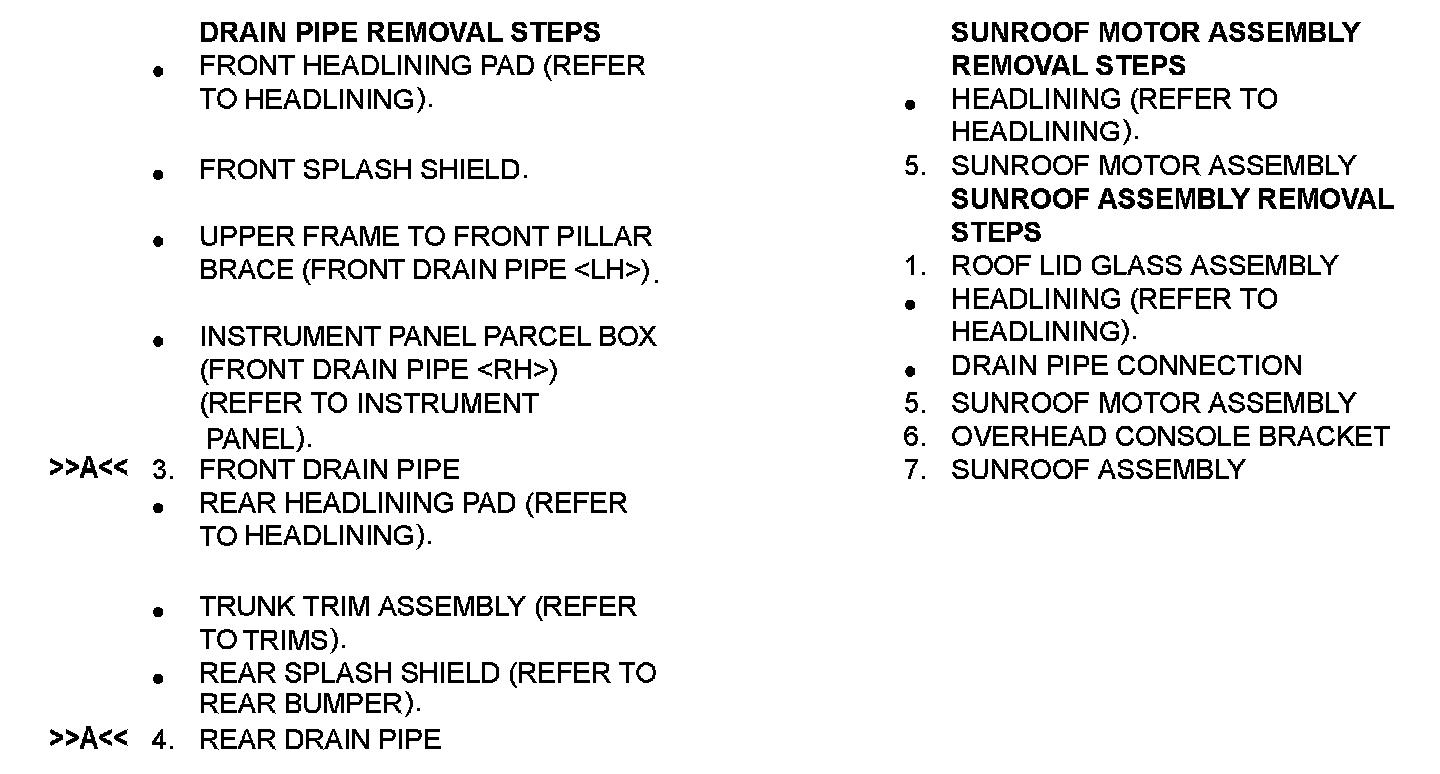

REMOVAL AND INSTALLATION

Required Special Tool:
- MB991223: Harness set

INSTALLATION SERVICE POINT

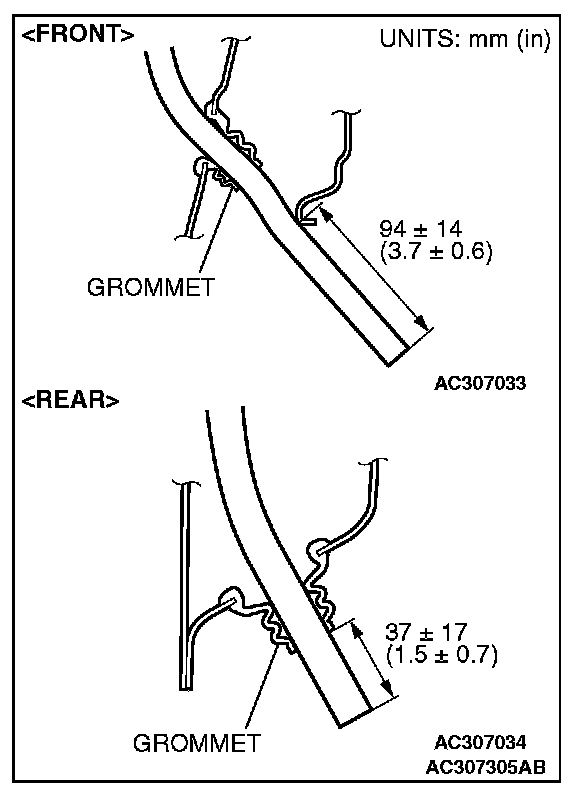

]]A[[ REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLATION
Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
