Power Locks: Description and Operation
CENTRAL DOOR LOCKING SYSTEM
GENERAL DESCRIPTION CONCERNING CENTRAL DOOR LOCKING SYSTEM

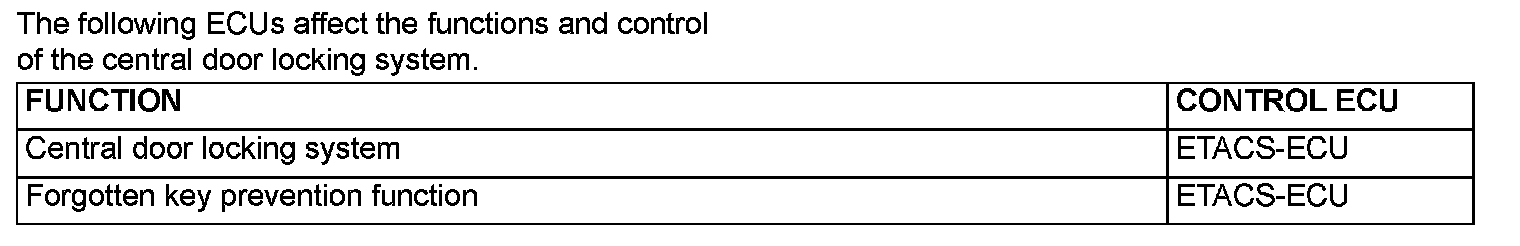

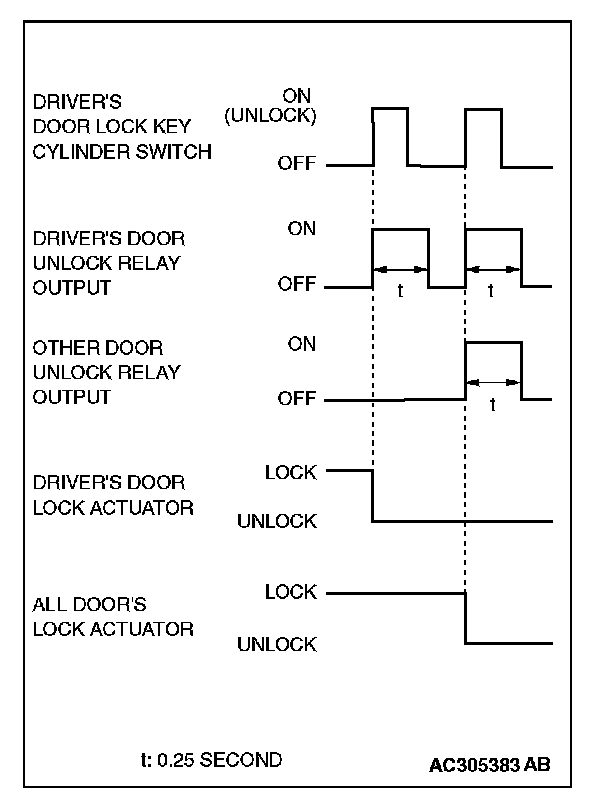

Door unlocking by operating the driver's door lock key cylinder
When the ignition key is inserted in the driver's door lock key cylinder and turned clockwise to unlock the driver's door, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuator of the driver's door for 0.25 seconds to unlock only the driver's door.
When the ignition key is turned clockwise again, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuators of all doors for 0.25 seconds and to unlock all doors.
NOTE: Vehicles with a multi center display (middle grade type) can be customized so that a single unlock operation will unlock all doors.
Door locking or unlocking by operating the driver's or front passenger's door lock switch
When the door is locked by the driver's or front passenger's door lock switch, the ETACS-ECU operates its door lock relay and passes a current through the door lock actuators of all doors for 0.25 seconds to lock all doors.
When the door is unlocked by the driver's or front passenger's door lock switch, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuators of all doors for 0.25 seconds to unlock all doors.
When the door is locked and unlocked by driver's or front passenger's door lock switch consecutively, the ETACS-ECU operates its door lock relay and passes a current through the door lock actuators of all doors for 0.25 seconds to lock all doors. Then, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuators of all doors for 0.25 seconds to unlock all doors. Due to this, there may be a time lag between the driver's or front passenger's door lock switch actuation and the time when all doors are unlocked.
Forgotten key prevention function

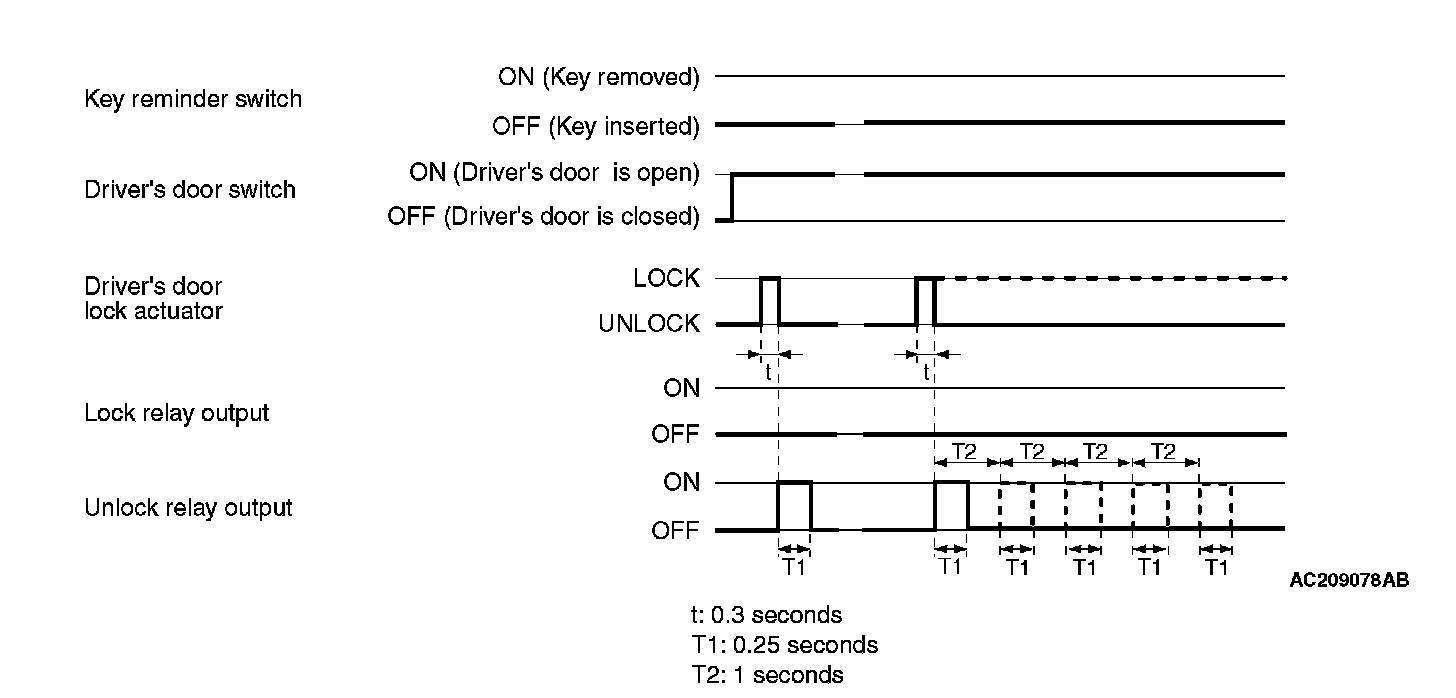

If the driver's door is locked while it is open.
If the driver's door is locked while it is open and when the key is still in the ignition key cylinder, approximately 0.3 second later the ETACS-ECU activates the unlock relay output for 0.25 second to prevent the door from being locked with the key inside the vehicle.
In addition, if locking the door was not prevented, a re-try current is sent (an unlock relay output ON is sent for 0.25 second up to 5 times including the first attempt).
NOTE: The dotted line indicates that the system is trying to turn on the unlock relay if the door cannot be unlocked.

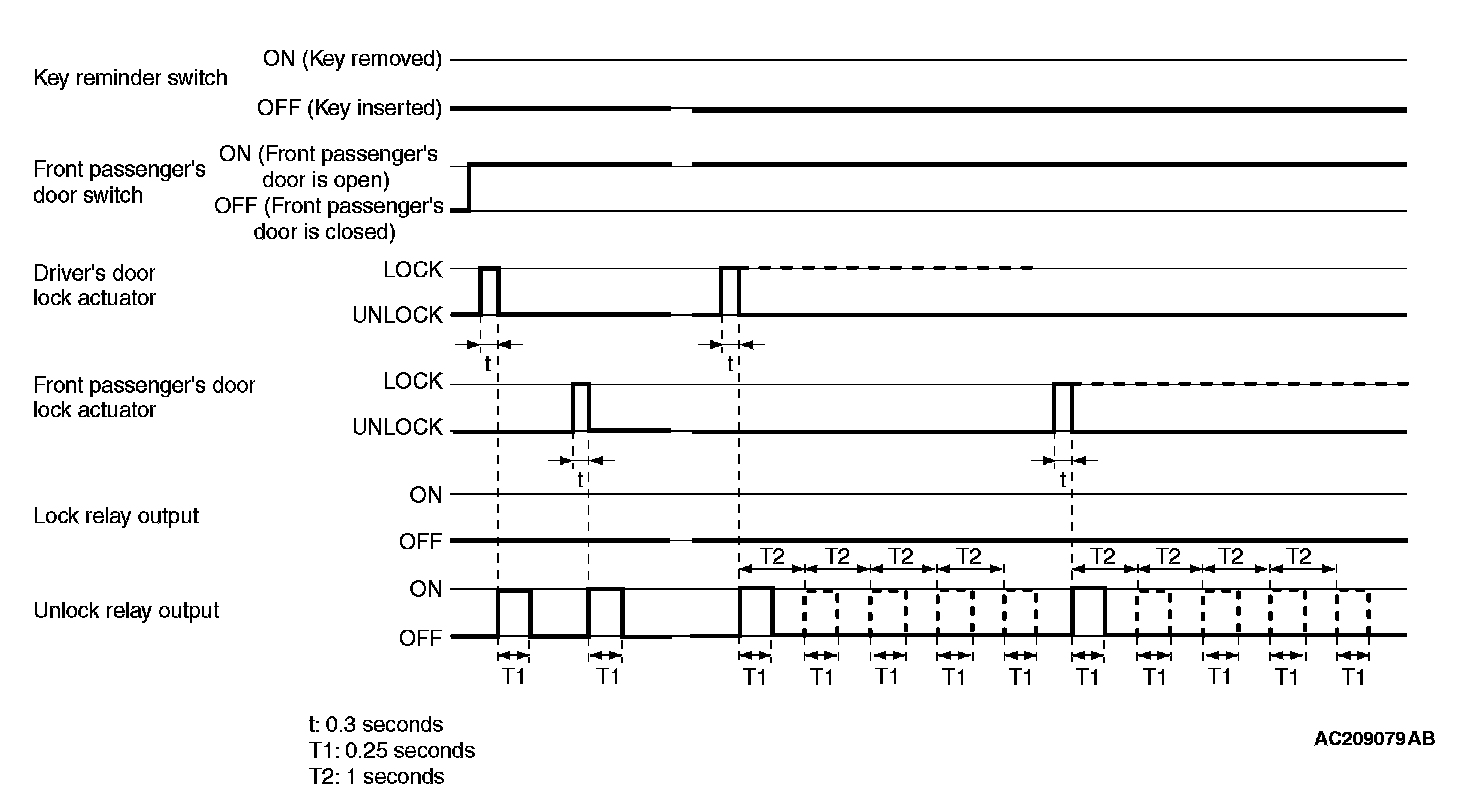

If the front passenger's door is open when it is locked with the driver's door switch.
If the passenger's door or driver's door are locked while the passenger's door is open and when the key is still in the ignition key cylinder, approximately 0.3 second later the ETACS-ECU activates the unlock relay output for 0.25 second to prevent the door from being locked with the key inside the vehicle.
In addition, if locking the door was not prevented, a re-try current is sent (an unlock relay output ON is sent for 0.25 second up to 5 times including the first attempt).
NOTE: The dotted line indicates that the system is trying to turn on the unlock relay if the door cannot be unlocked.
OPERATION
CENTRAL DOOR LOCKING SYSTEM
The central door locking system operates the door lock actuator to lock or unlock the doors using the door lock switch built into the front power window (main or sub) switch or key cylinder built into the driver's side door outside handle. The system has the following operations and features:
- All doors can be locked using the door lock switch built into the front power window (main or sub [RH]) switch.
- Insert the key into the driver's key cylinder and turn once to the unlock side to unlock the driver's door. Turn the key once again to the unlock side to unlock all doors.
- The key reminder function automatically unlocks all doors when door lock operation is performed and the front doors are opened while the key is inserted into the ignition switch.
