Removal and Replacement

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
- For removal and installation of the passenger's side air bag module, always observe the service procedures described in SRS, Air Bag Module and Clock Spring.
- Refer to SRS Service Precautions and Air bag Module and Clock Spring before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

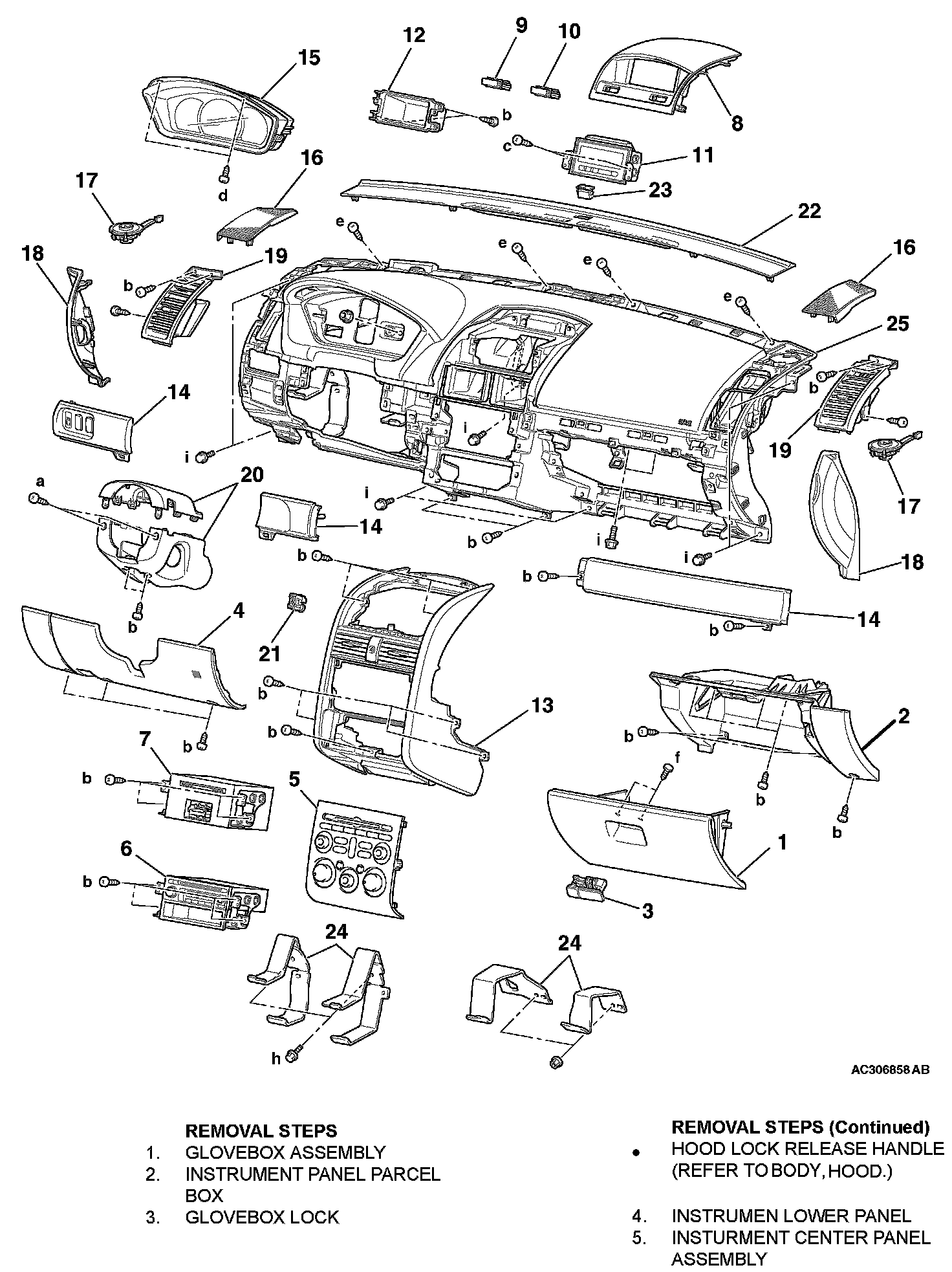

Removal Steps 1-25 (Part 1):

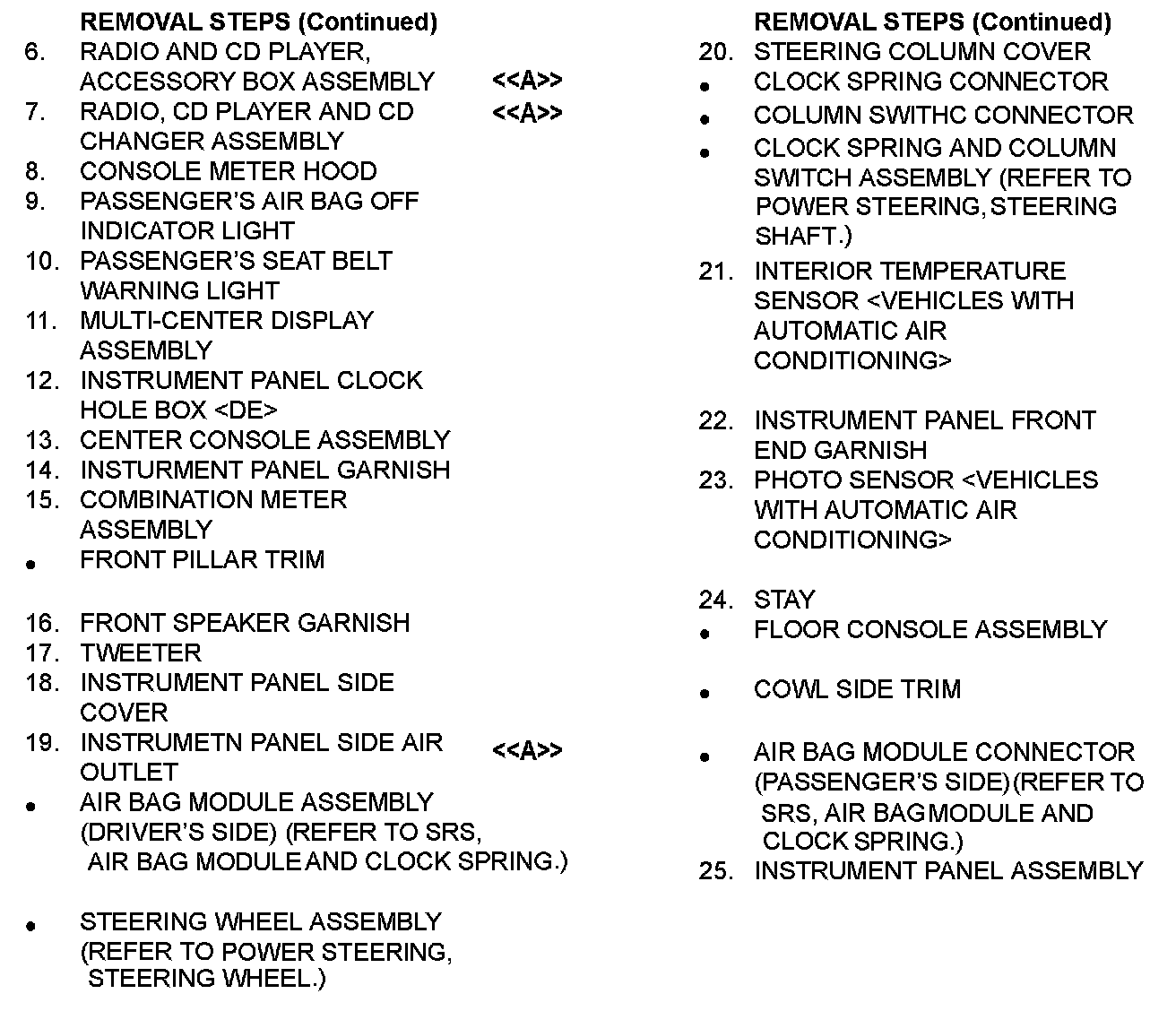

Removal Steps 1-25 (Part 2):

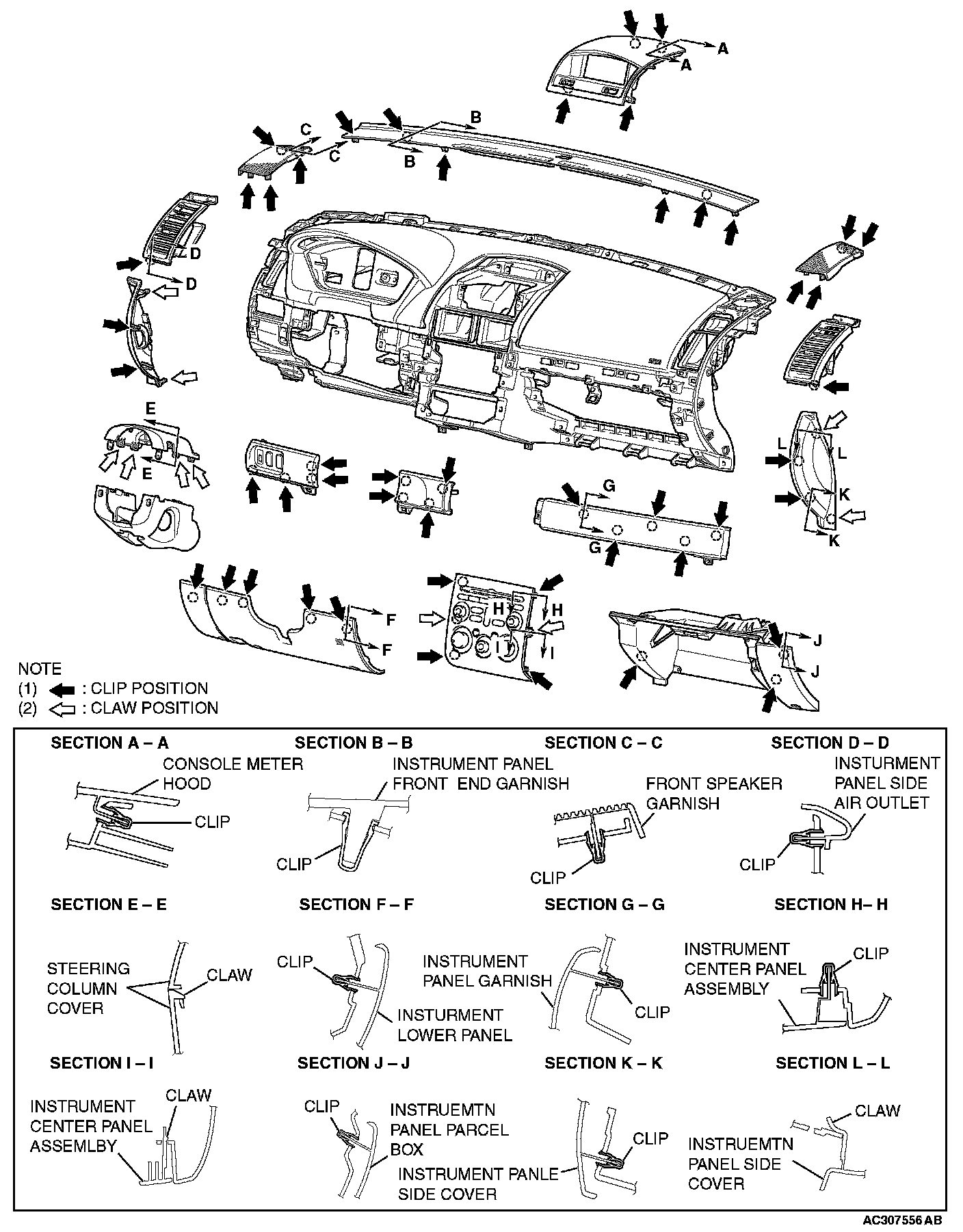

CLIP AND CLAW POSITIONS

Clip And Claw Positions:

REMOVAL SERVICE POINT

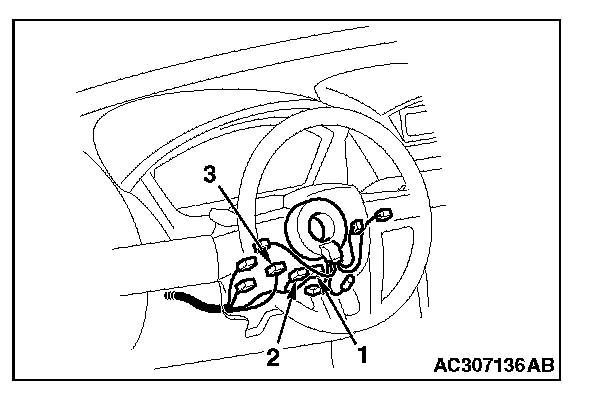

[[A]] CONNECTOR DISCONNECTION

Disconnect the connectors shown in the illustration.






1. CLOCK SPRING CONNECTOR (6)
2. CLOCK SPRING CONNECTOR (4-Y)
3. COLUMN SWITCH CONNECTOR (10)






4. AIR BAG MODULE (FRONT PASSENGER'S SIDE) CONNECTOR (4-Y)
