Amplifier: Service and Repair

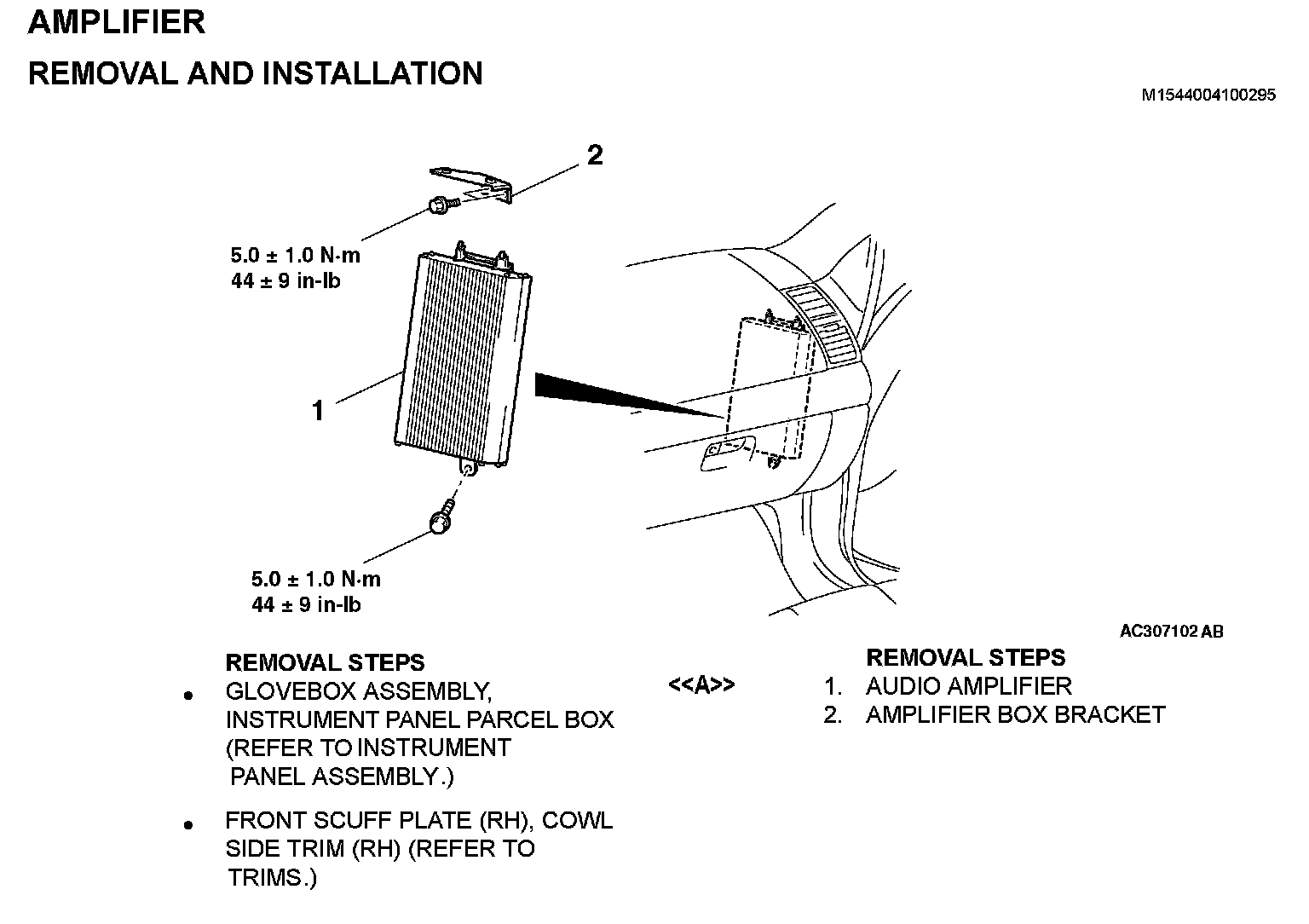

AMPLIFIER




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

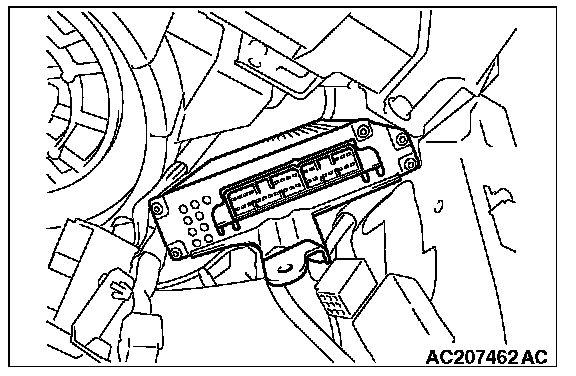

<> AMPLIFIER REMOVAL
Move the audio amplifier wiring harness to one side, and then maneuver out the audio amplifier.

INSTALLATION SERVICE POINTS

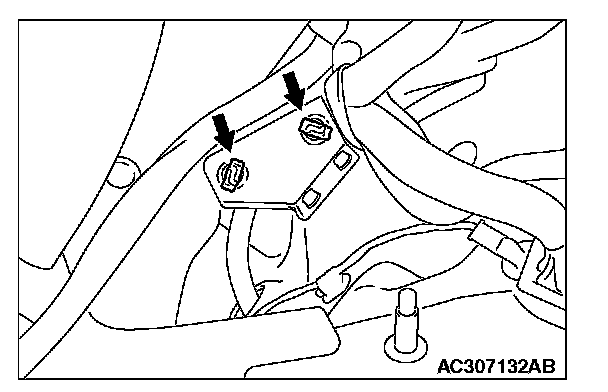

>>A<< AMPLIFIER INSTALLATION
Install while aligning with the amplifier mounting hole.
