Home
>>
Mitsubishi
>>
2004
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Linkage
>>
Service and Repair
>>
Disassembly and Assembly
Disassembly and Assembly
TRANSAXLE CONTROL

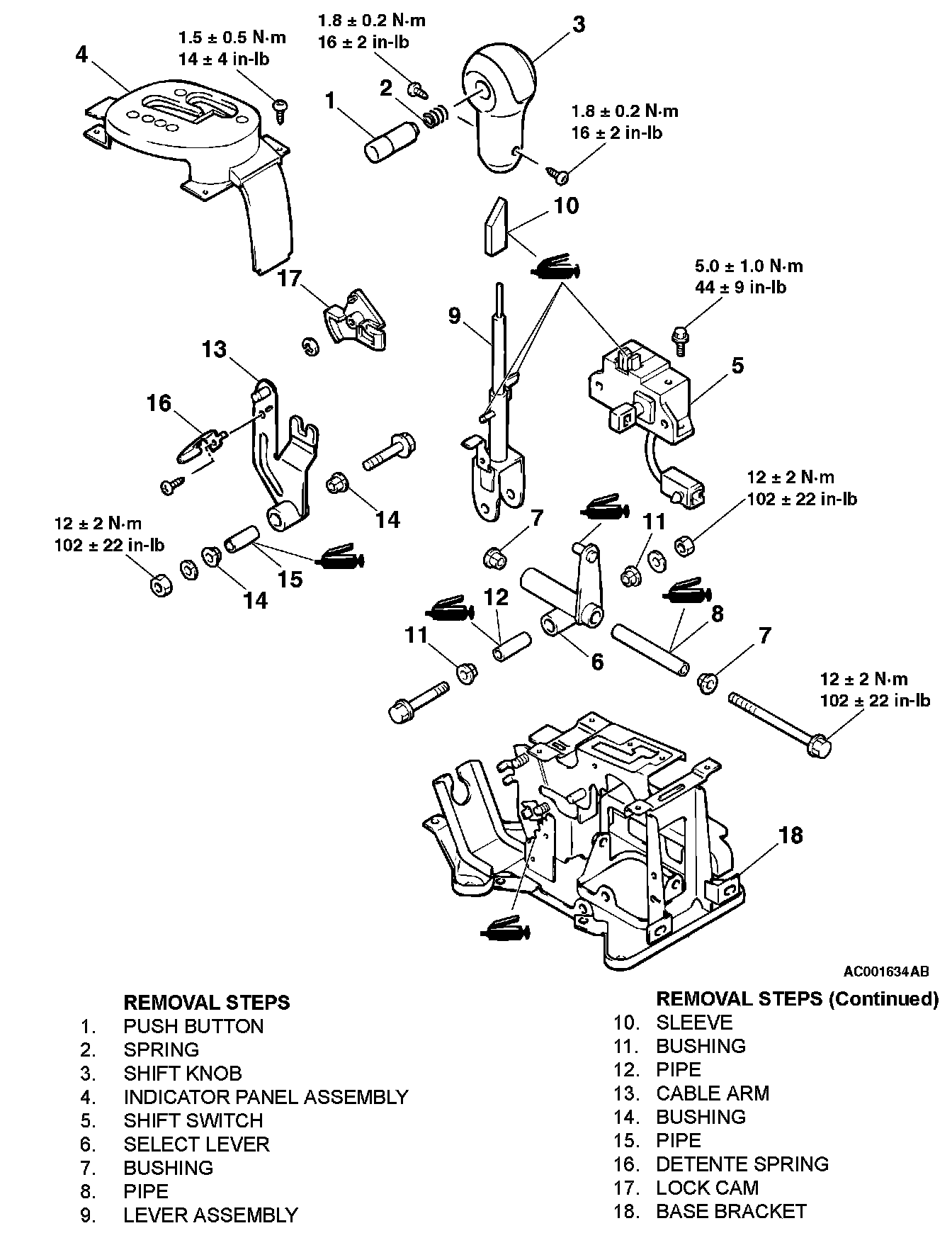

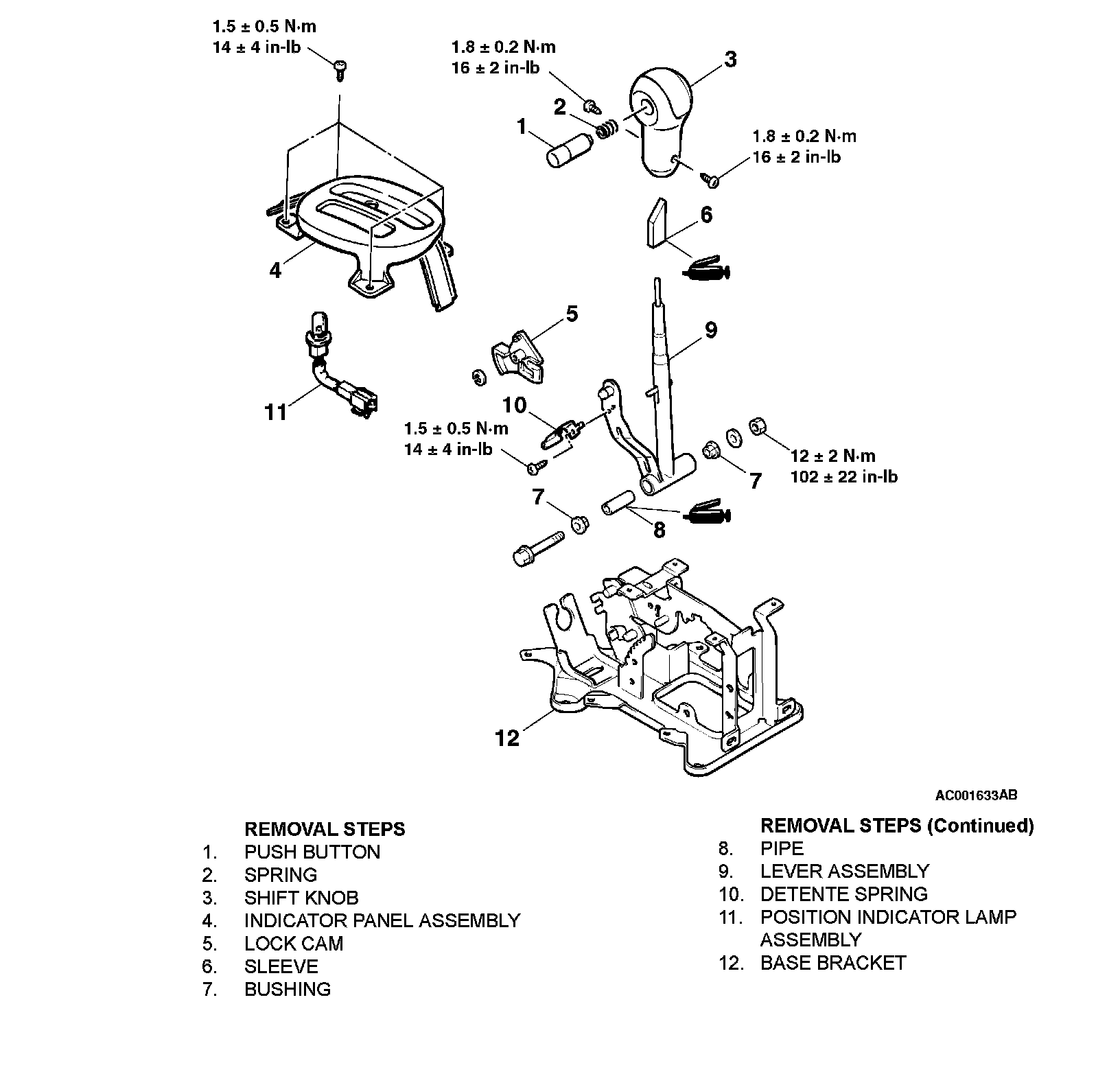

DISASSEMBLY AND ASSEMBLY
INSPECTION

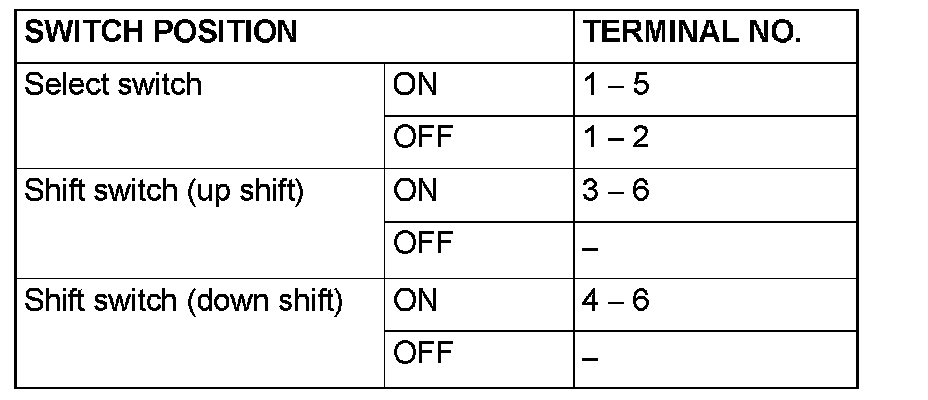

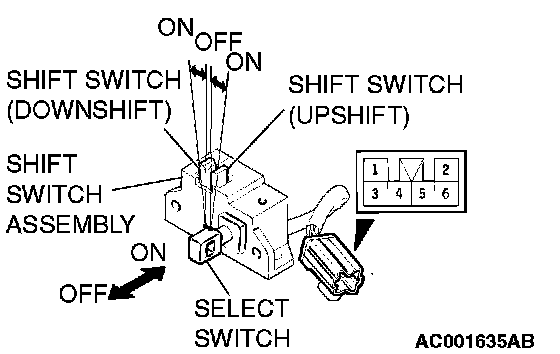

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
