Home
>>
Mitsubishi
>>
2004
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Input Shaft
Input Shaft

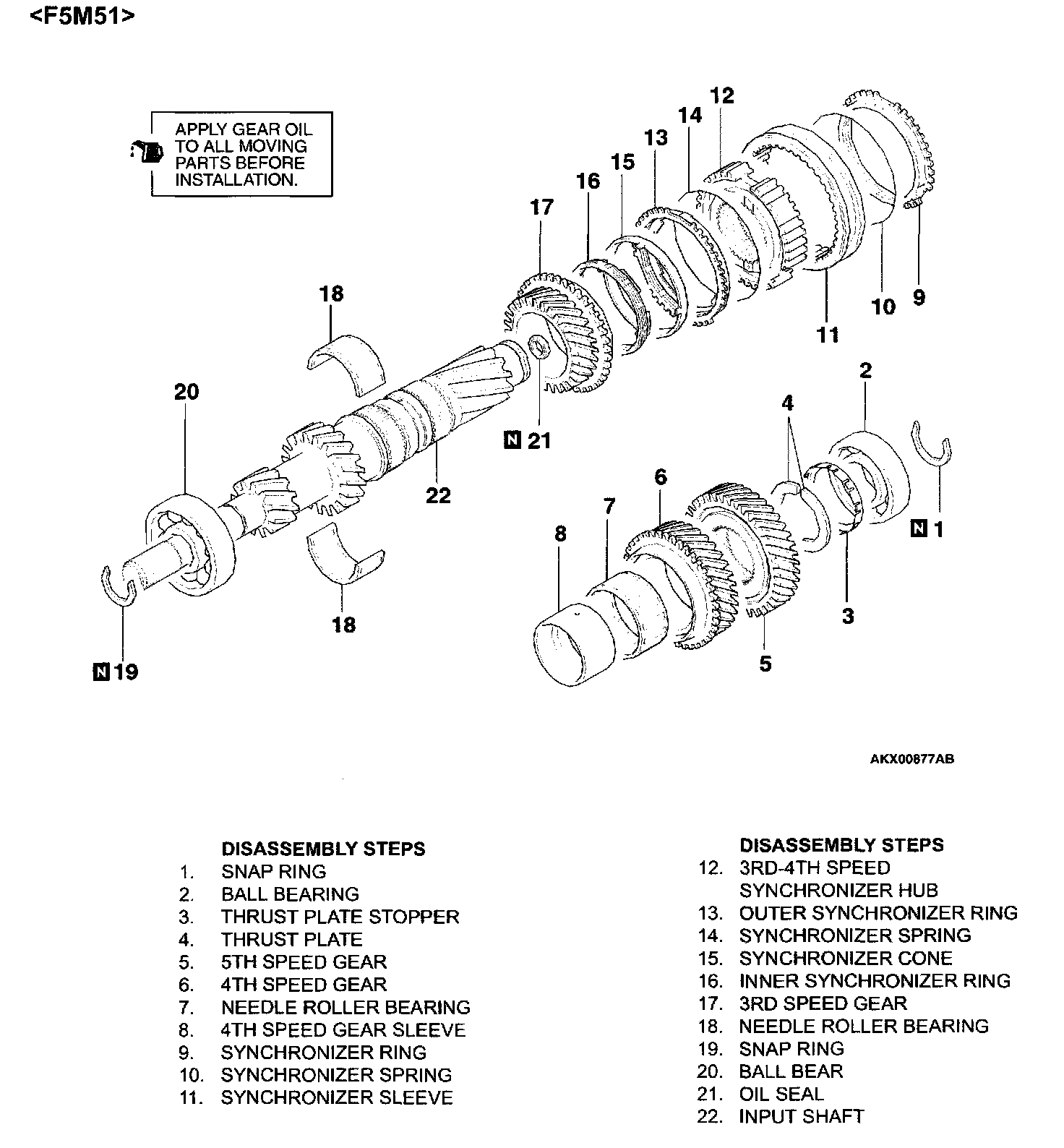

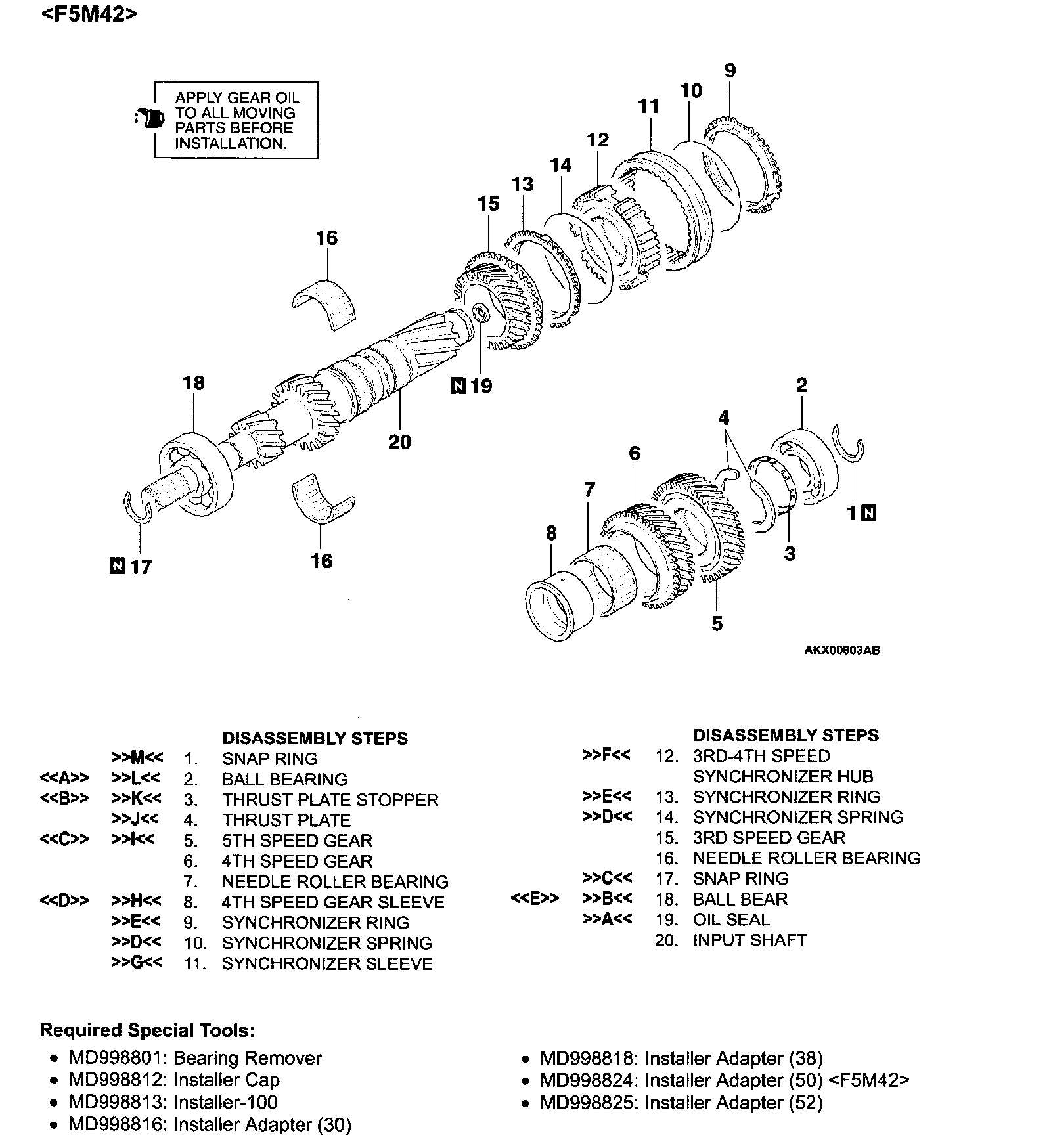

INPUT SHAFT OVERHAUL W/ RELATED COMPONENTS
