Transmission Mount: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

INSTALLATION SERVICE POINT

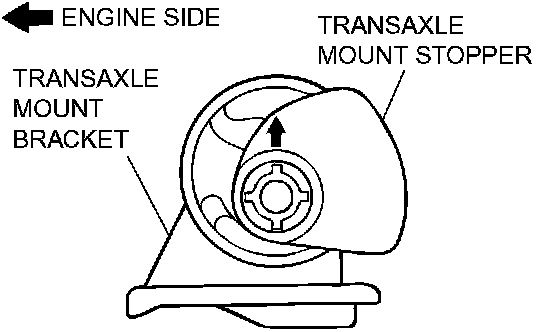

>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION





Install the transaxle mount stopper so that its arrow points upward.

INSPECTION
^ Check the transaxle mount insulator for cracks, separation or deformation.
