Drive Shaft Oil Seal

DISASSEMBLY AND ASSEMBLY

Required Special Tool:
^ MD998800: Oil Seal Installer

ASSEMBLY SERVICE POINTS
>>A<< OIL SEAL INSTALLATION

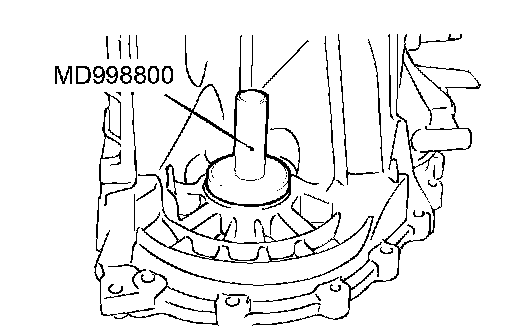

Use special tool MD998800 to tap the oil seal into the torque converter housing.

>>B<< OIL SEAL INSTALLATION





Use special tool MD998800 to tap the oil seal in the transaxle case.
