Throttle Cable/Linkage: Service and Repair

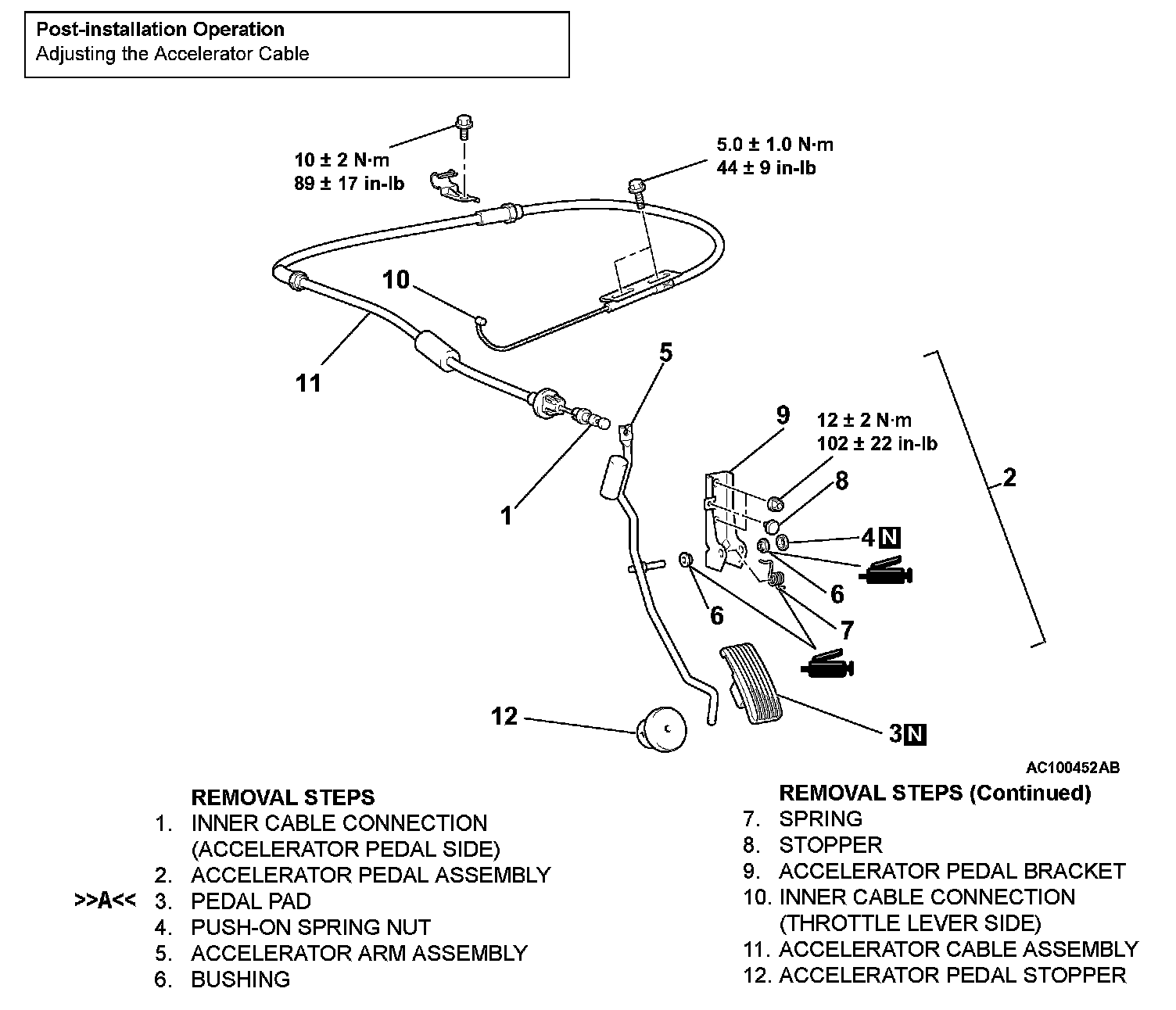

ACCELERATOR CABLE AND PEDAL

Accelerator Cable And Pedal:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<<ACCELERATOR PEDAL PAD INSTALLATION
Warm the peg of the accelerator pedal pad with a dryer before installing the pad.

NOTE: If it is difficult to fit, apply soapy water to the peg lightly.
