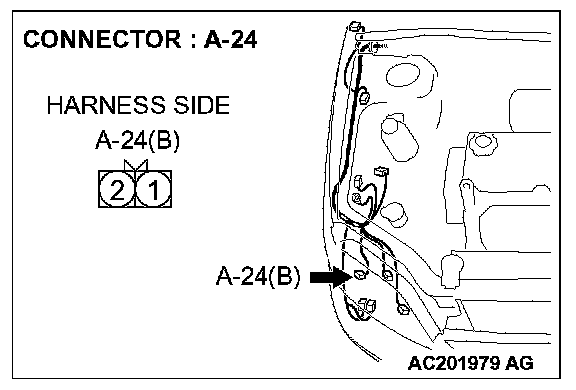

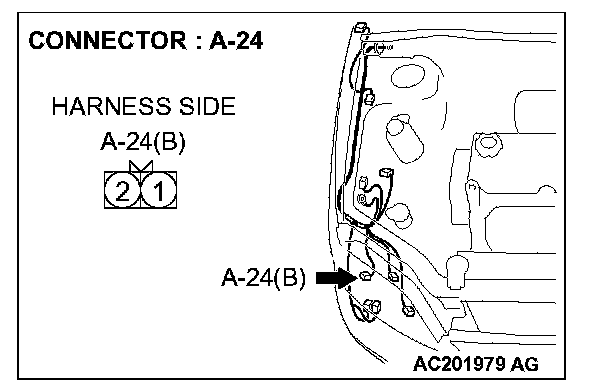

STEP 14. Check position light (RH) connector A-24 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is position light (RH) connector A-24 in good condition?

YES: Go to Step 15.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the position light (RH) illuminates normally.

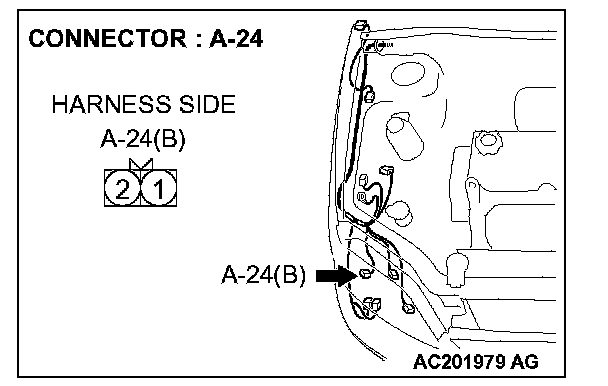

STEP 15. Check the wiring harness between position light (RH) connector A-24 (terminal 1) and ground.

Q: Is the wiring harness between position light (RH) connector A-24 (terminal 1) and ground in good condition?

YES: Replace the position light socket (RH). Verify that the position light (RH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (RH) illuminates normally.

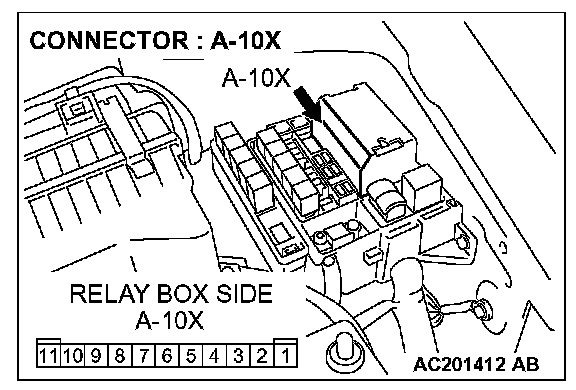

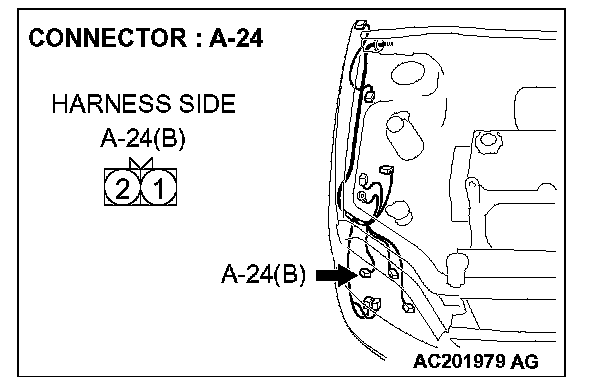

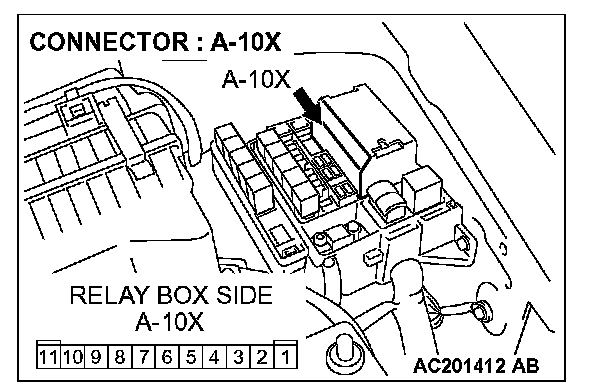

STEP 16. Check position light (RH) connector A-24 and front-ECU connector A-10X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are position light (RH) connector A-24 and front-ECU connector A-10X in good condition?

YES: Go to Step 17.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the position light (RH) illuminates normally.
















STEP 17. Check the wiring harness between position light (RH) connector A-24 (terminal 2) and front-ECU connector A-10X (terminal 8).

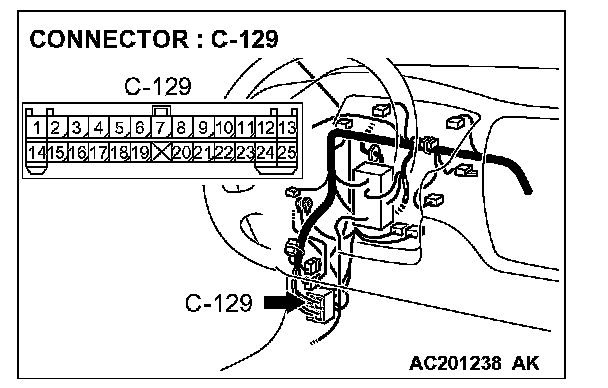

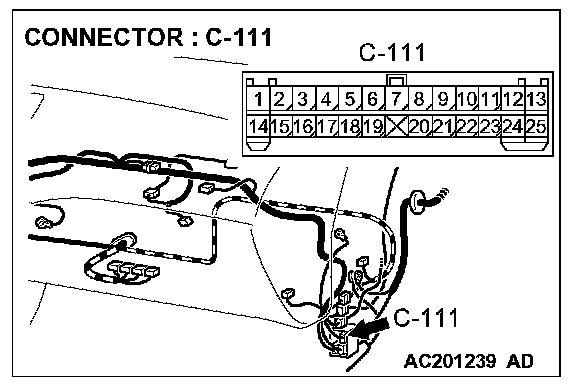

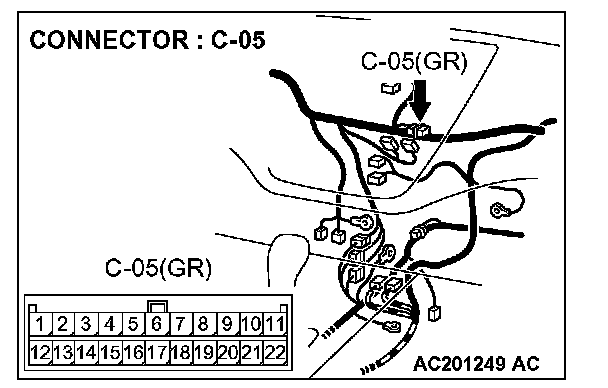

NOTE: Also check joint connector C-05, intermediate connectors C-111 and C-129 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If joint connector C-05, intermediate connectors C-111 or C-129 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between position light (RH) connector A-24 (terminal 2) and front-ECU connector A-10X (terminal 8) in good condition?

YES: No action is necessary and testing is complete.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the position light (RH) illuminates normally.

STEP 18. Check the stop/taillight bulb (LH).
1. Remove the stop/taillight bulb (LH).
2. Verify that the stop/taillight bulb (LH) is not damaged or burned out.

Q: Is the stop/taillight bulb (LH) in good condition?

YES: Go to Step 19.

NO: Replace the stop/taillight bulb (LH). Verify that the taillights (LH) illuminate normally.

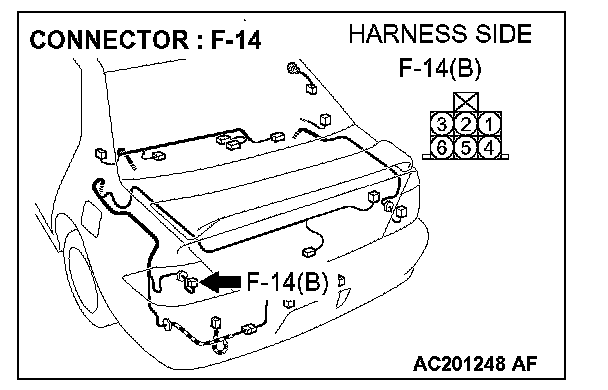

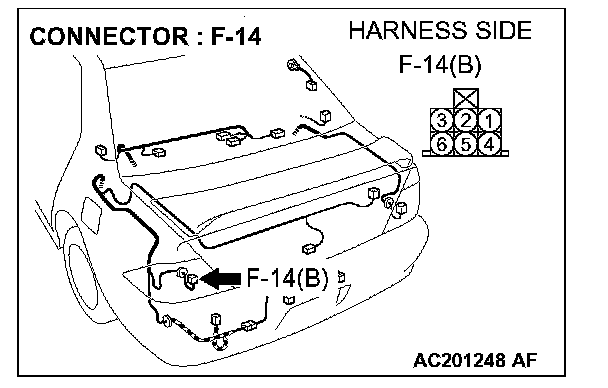

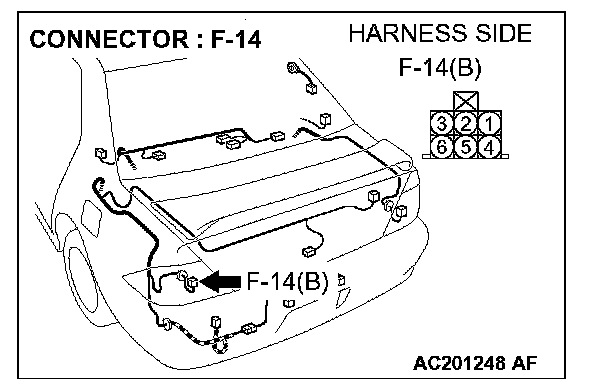

STEP 19. Check the ground circuit to the rear combination light (LH). Test at rear combination light (LH) connector F-14.




1. Disconnect rear combination light (LH) connector F-14 and measure the resistance available at the wiring harness side of the connector.




2. Measure the resistance value between terminal 5 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 22.

NO: Go to Step 20.

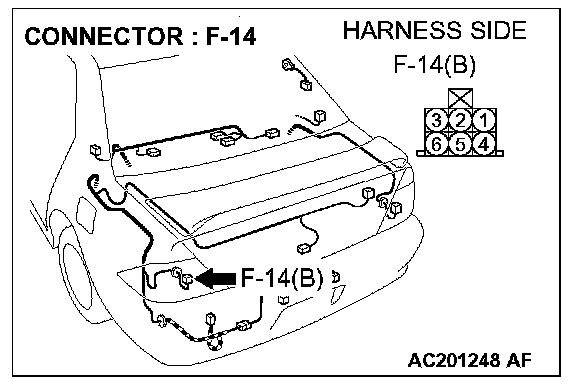

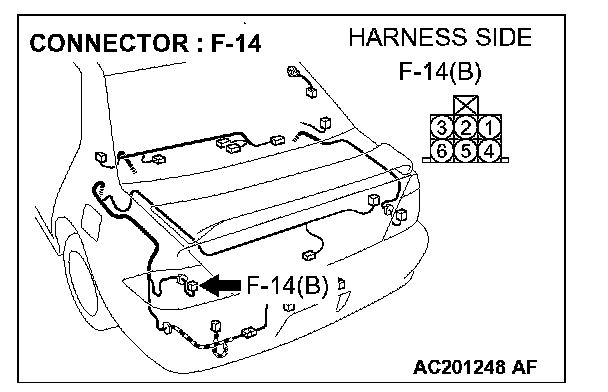

STEP 20. Check rear combination light (LH) connector F-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (LH) connector F-14 in good condition?

YES: Go to Step 21.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the taillights (LH) illuminate normally.




STEP 21. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 5) and ground in good condition?

YES: Replace the rear combination light socket (LH). Verify that the taillight (LH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the taillights (LH) illuminate normally.

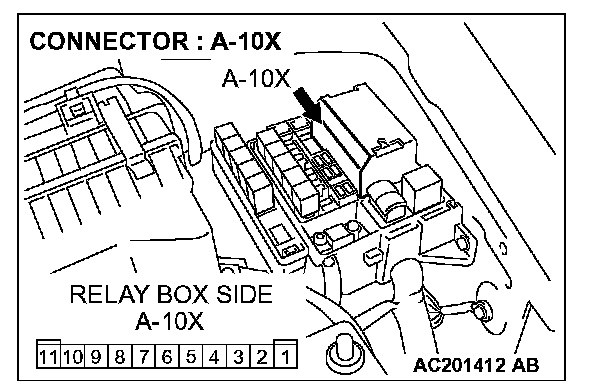

STEP 22. Check rear combination light (LH) connector F-14 and front-ECU connector A-10X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are rear combination light (LH) connector F-14 and front-ECU connector A-10X in good condition?

YES: Go to Step 23.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the taillights (LH) illuminate normally.













STEP 23. Check the wiring harness between rear combination light (LH) connector F-14 (terminal 3) and front-ECU connector A-10X (terminal 8).

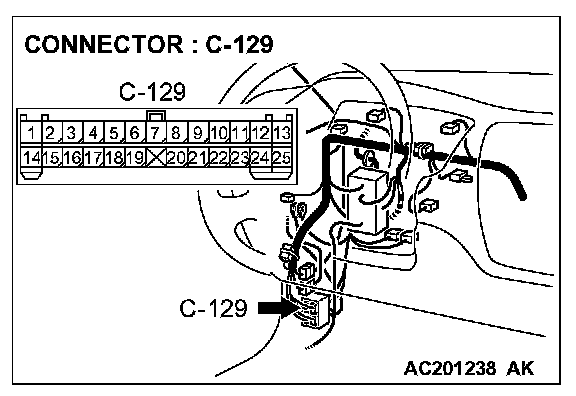

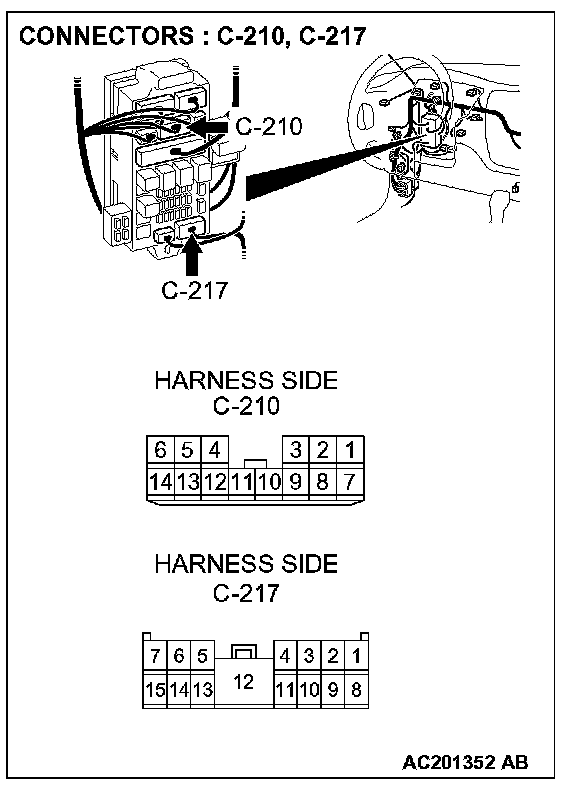

NOTE: Also check intermediate connector C-129, junction block connectors C-210 and C-217 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-129 or junction block connector C-210 or C-217 is damaged, repair or replace the damaged component(s) as described in Harness Connector Inspection.

Q: Is the wiring harness between rear combination light (LH) connector F-14 (terminal 3) and front-ECU connector A-10X (terminal 8) in good condition?

YES: Replace the rear combination light socket (LH). Verify that the taillights (LH) illuminate normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the taillights (LH) illuminate normally.

STEP 24. Check the stop/taillight bulb (RH).
1. Remove the stop/taillight bulb (RH).
2. Verify that the stop/taillight bulb (RH) is not damaged or burned out.

Q: Is the stop/taillight bulb (RH) in good condition?

YES: Go to Step 25.

NO: Replace the stop/taillight bulb (RH). Verify that the taillight (RH) illuminates normally.

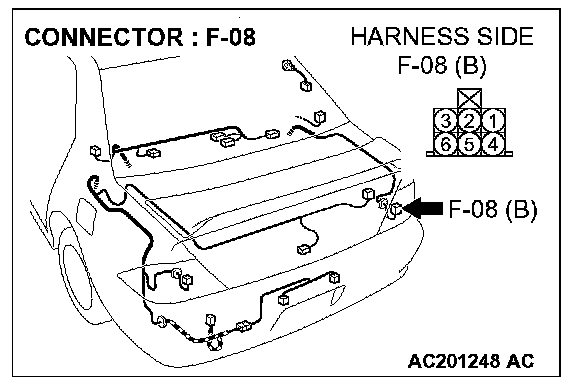

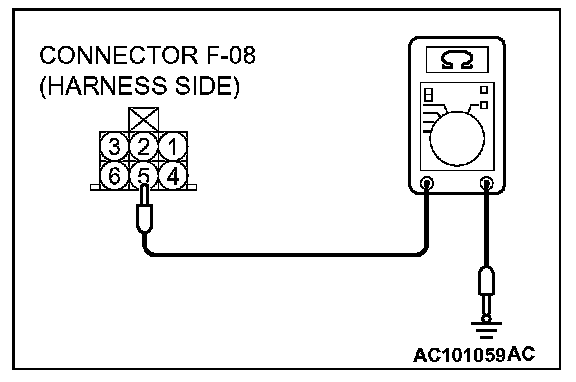

STEP 25. Check the ground circuit to the rear combination light (RH). Test at rear combination light (RH) connector F-08.




1. Disconnect front combination light (RH) connector F-08 and measure the resistance available at the wiring harness side of the connector.




2. Measure the resistance value between terminal 5 and ground.
- The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES: Go to Step 28.

NO: Go to Step 26.

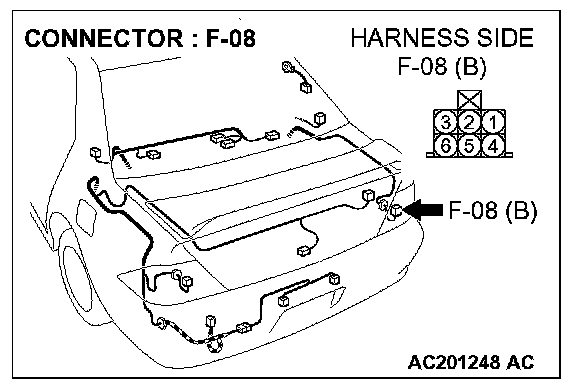

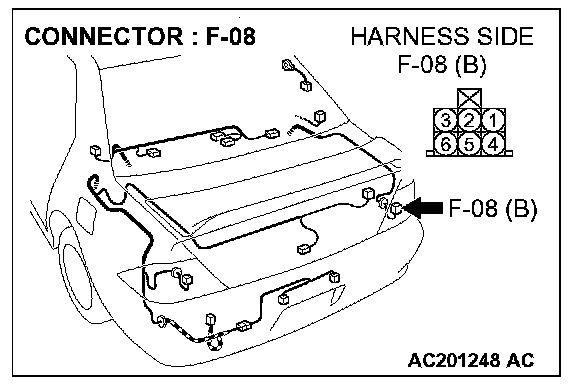

STEP 26. Check rear combination light (RH) connector F-08 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is rear combination light (RH) connector F-08 in good condition?

YES: Go to Step 27.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the taillight (RH) illuminates normally.





STEP 27. Check the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground.

Q: Is the wiring harness between rear combination light (RH) connector F-08 (terminal 5) and ground in good condition?

YES: Replace the rear combination light socket (RH). Verify that the taillight (RH) illuminates normally.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the taillight (RH) illuminates normally.

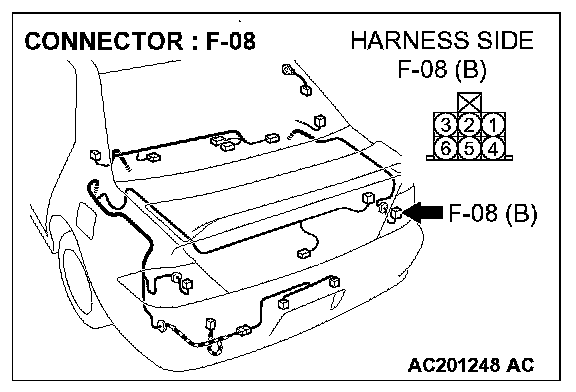

STEP 28. Check rear combination light (RH) connector F-08 and front-ECU connector A-10X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are rear combination light (RH) connector F-08 and front-ECU connector A-10X in good condition?

YES: Go to Step 29.

NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Verify that the taillight (RH) illuminates normally.
