Inspection Procedure G-2

Windshield Wiper and Washer: The windshield wipers do not work when the windshield wiper switch is at "INT" or "MIST" position or the windshield washer switch is at "ON" position. However, the wipers work at low speed when the windshield wiper switch is at "LO" or "HI."

NOTE: This troubleshooting procedure requires the use of scan tool MB991502 and SWS monitor kit MB991862. For details on how to use the SWS monitor, refer to "How to use SWS monitor."

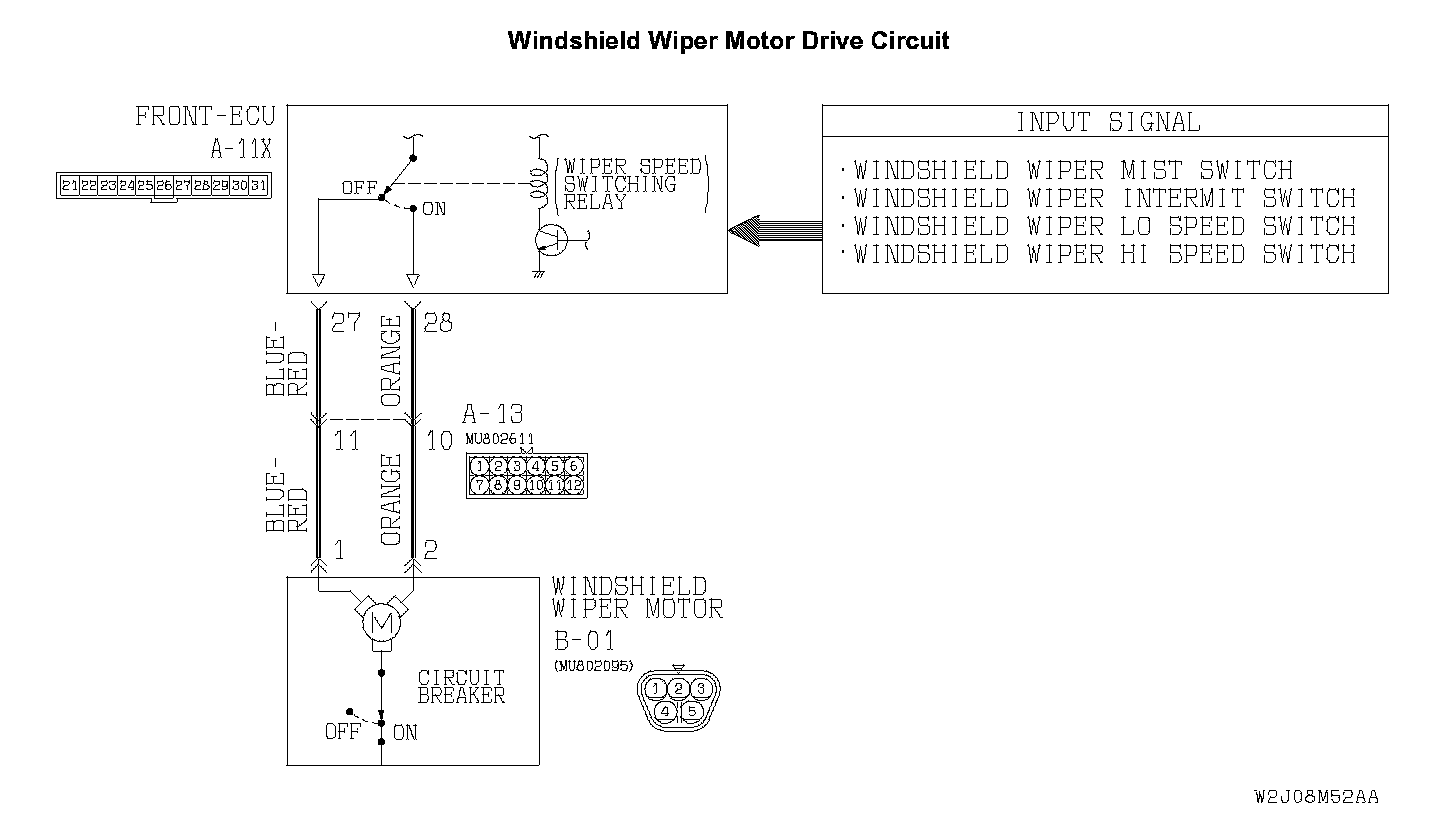

Windshield Wiper Motor Drive Circuit:

TECHNICAL DESCRIPTION (COMMENT)
This system may be at fail-safe mode as the SWS communication line is defective.
If the system can not receive any signal from the column switch (windshield wiper and washer switch) due to a open circuit in the SWS communication line or other reasons, the system will enter the fail-safe mode when the ignition switch is at the "ACC" position.

TROUBLESHOOTING HINTS
- The column switch may be defective (windshield wiper and washer switch)
- The front-ECU may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB991502: Scan Tool (MUT-II)
- MB991862: SWS monitor kit

Use scan tool MB991502 to select "ECU COMM CHK" on the SWS monitor display.
Check the following ECUs:
- Column-ECU
- Front-ECU

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502. Connect the DLC harness before connecting the column-ECU harness. Be sure to connect SWS monitor kit MB991862 after turning on scan tool MB991502.

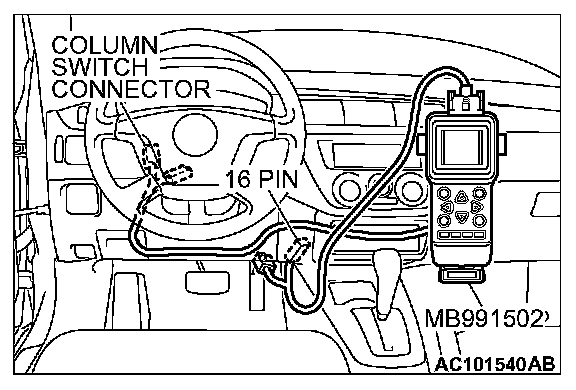

1. Connect scan tool MB991502 to the data link connector.
2. Connect SWS monitor kit MB991862 to the column switch connector.
3. Turn the ignition switch to the "ON" position.
4. Operate scan tool MB991502 according to the procedure below to display "ECU COMM CHK."
1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."




5. Scan tool MB991502 should show "OK" on the "ECU COMM CHK" menus for both the "COLUMN ECU" and the "FRONT ECU" menus.

Q: Is "OK" displayed on both the "COLUMN ECU" and "FRONT ECU" menus?

"OK" are displayed for all the items : Replace the front-ECU. Check that the windshield wiper works normally.
"NG" is displayed on the "COLUMN ECU" menu : Refer to Inspection Procedure A-2 "Communication with column switch (column-ECU) is not possible"
"NG" is displayed on the "FRONT ECU" menu : Refer to Inspection procedure A-4 "Communication with front-ECU is not possible."
