Curiosii for ever!: Car repair manuals for everyone.

Home >> Mitsubishi >> 2003 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> C Connectors - Dash Panel >> C-01 to C-22

C-01 to C-22

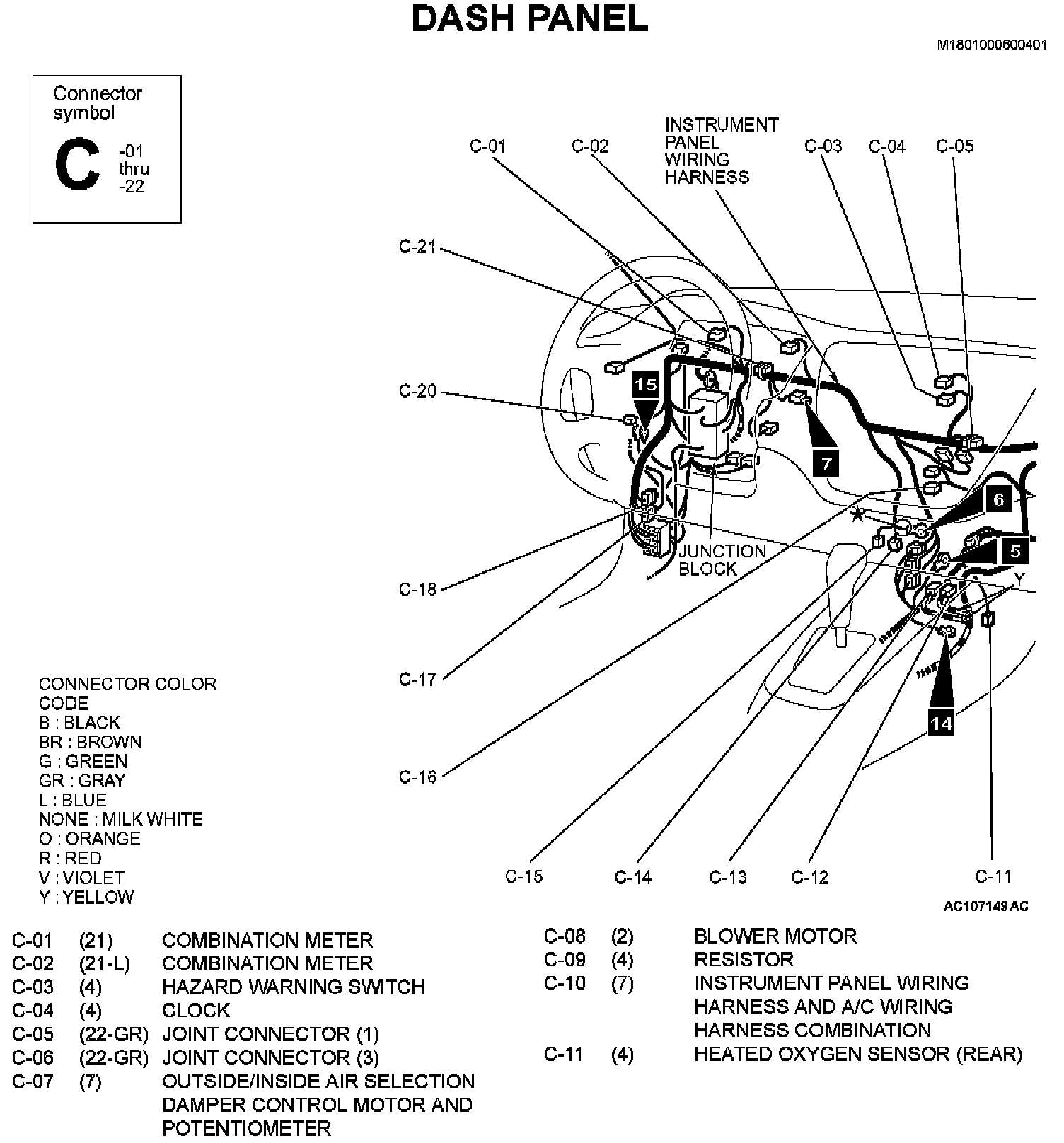

C-01 Thru C-22 (Part 1):

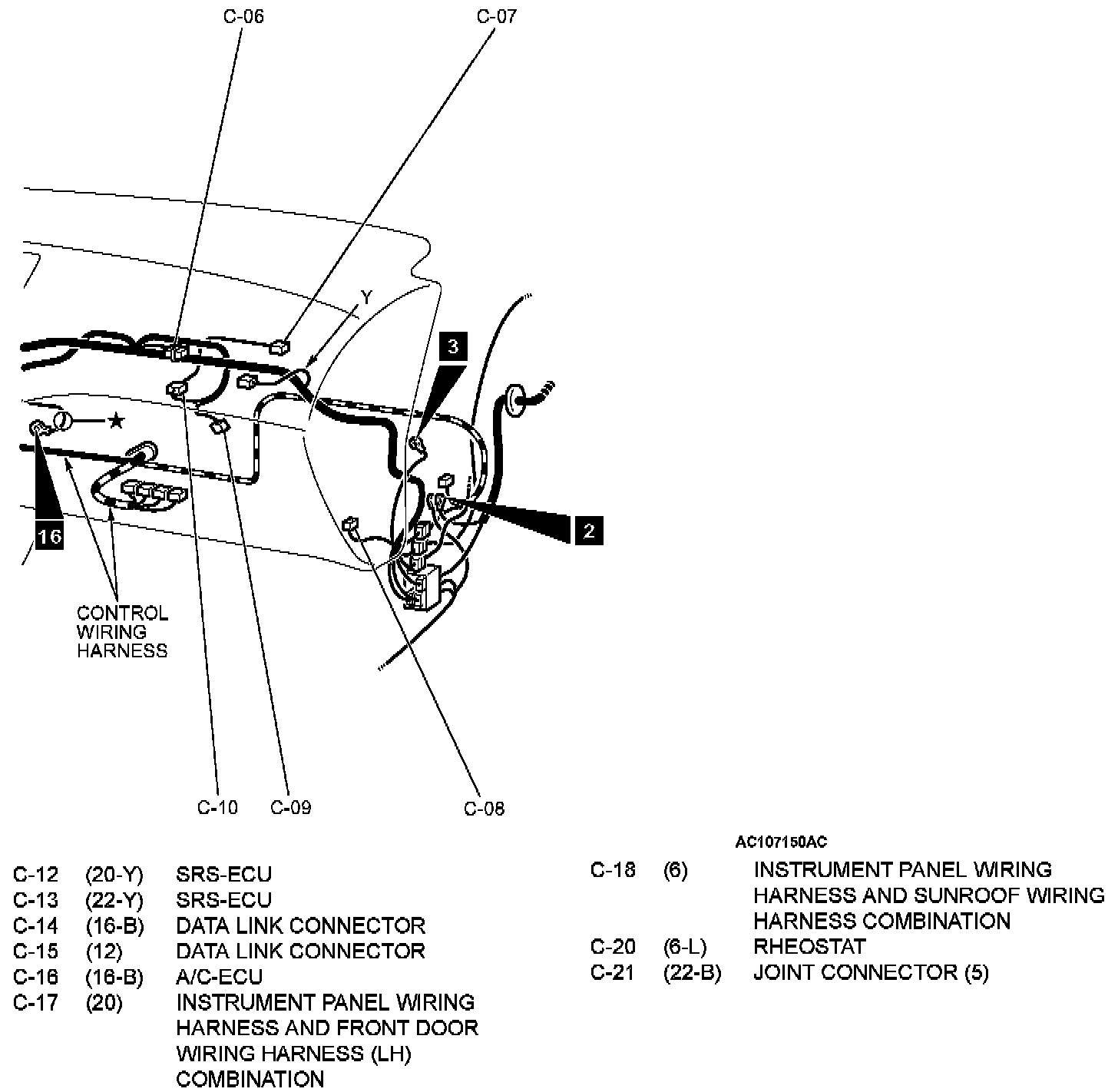

C-01 Thru C-22 (Part 2):
