Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
B Connectors - Engine And Transaxle
>>
B-101 to B-118
B-101 to B-118

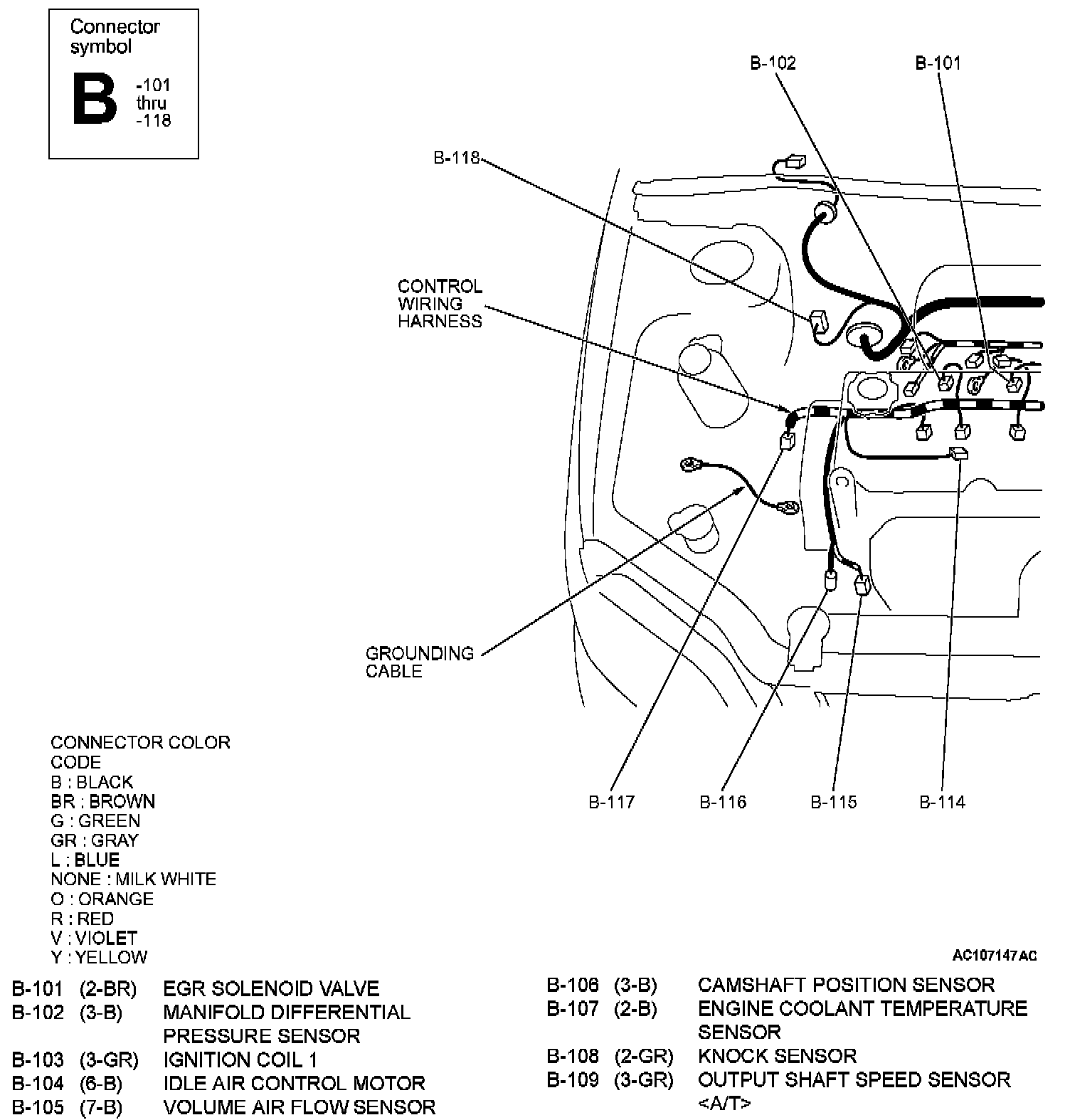

B-101 Thru B-118 (Part 1):

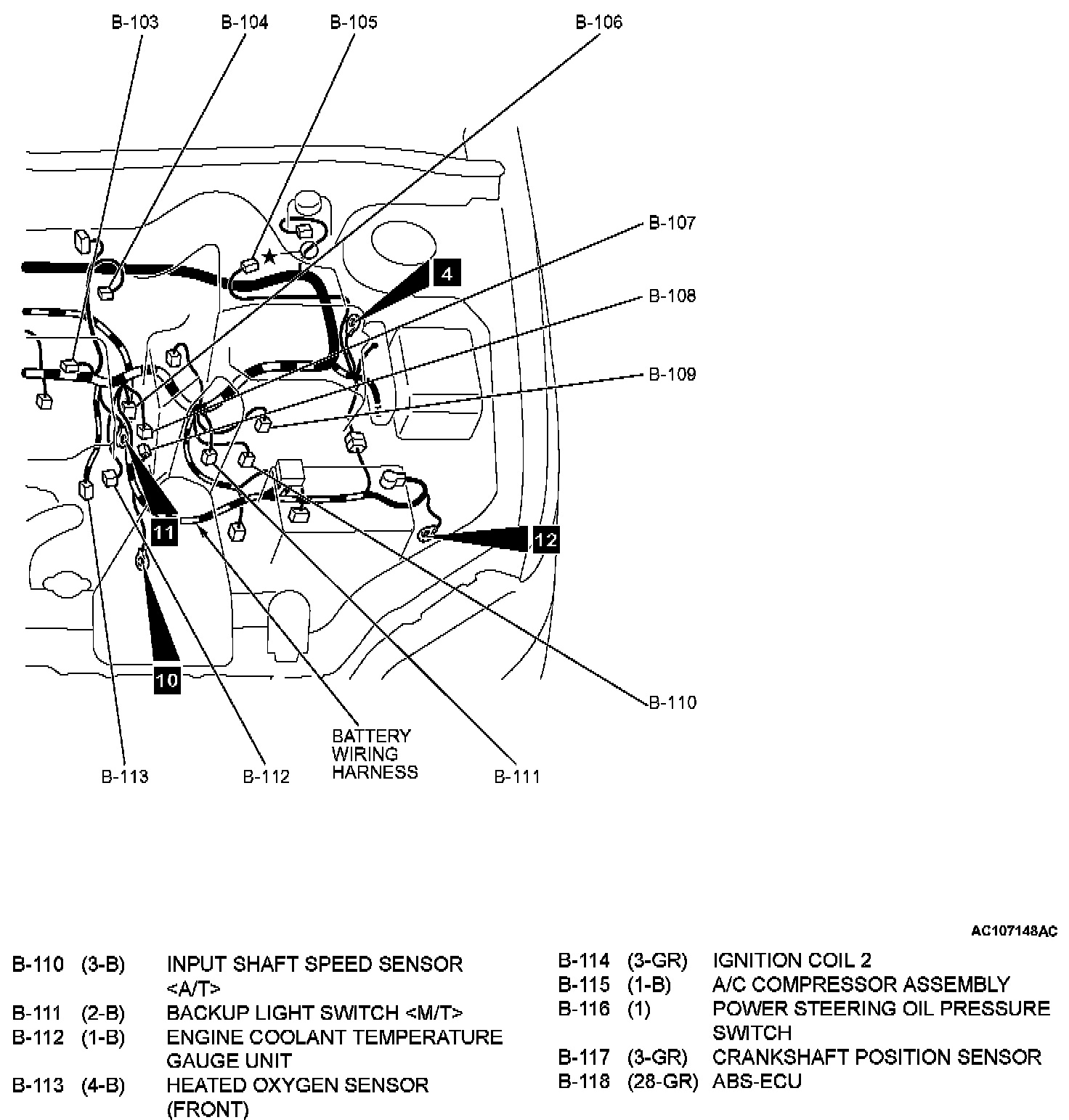

B-101 Thru B-118 (Part 2):
