Evaporator Case: Service and Repair
EVAPORATOR ASSEMBLYEvaporator Assembly:
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE, LIQUID PIPE B, AND THE EXPANSION DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
<> EVAPORATOR REMOVAL
CAUTION: Do not cut the upper side of the pad.

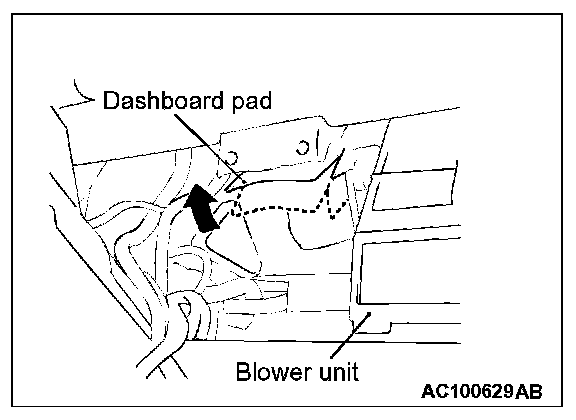

1. When removing the evaporator, cut and fold back the dashboard pad as in the diagram. (The thickness of the pad interferes with the removal of the evaporator.)
2. Remove the evaporator.
INSTALLATION SERVICE POINTS
>>A<< EVAPORATOR INSTALLATION
After installing the evaporator, glue the cut dashboard panel pad with an adhesive agent.
