Turn Signal Flasher

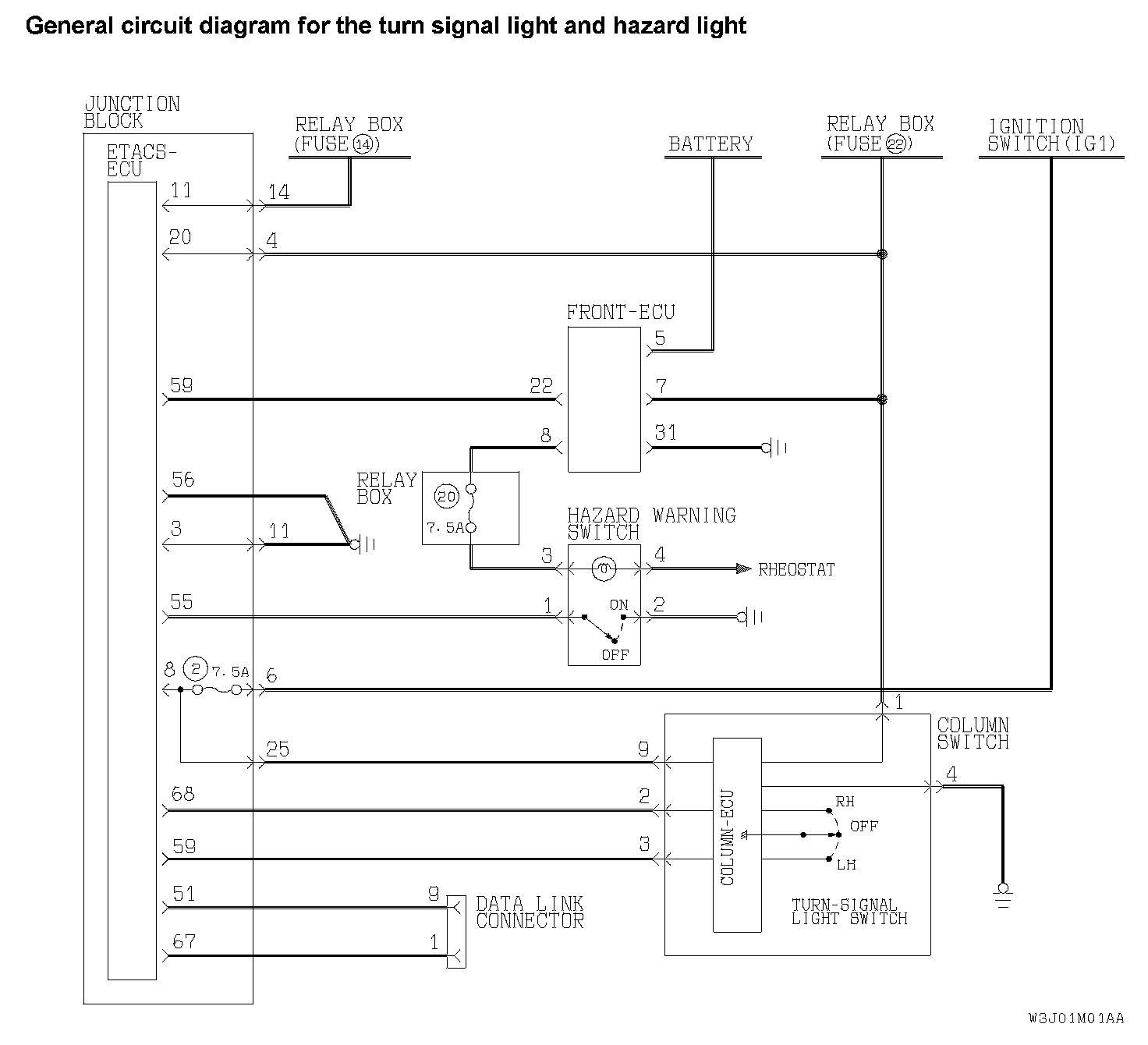

General Circuit Diagram For The Turn Signal Light And Hazard Light Part 1:

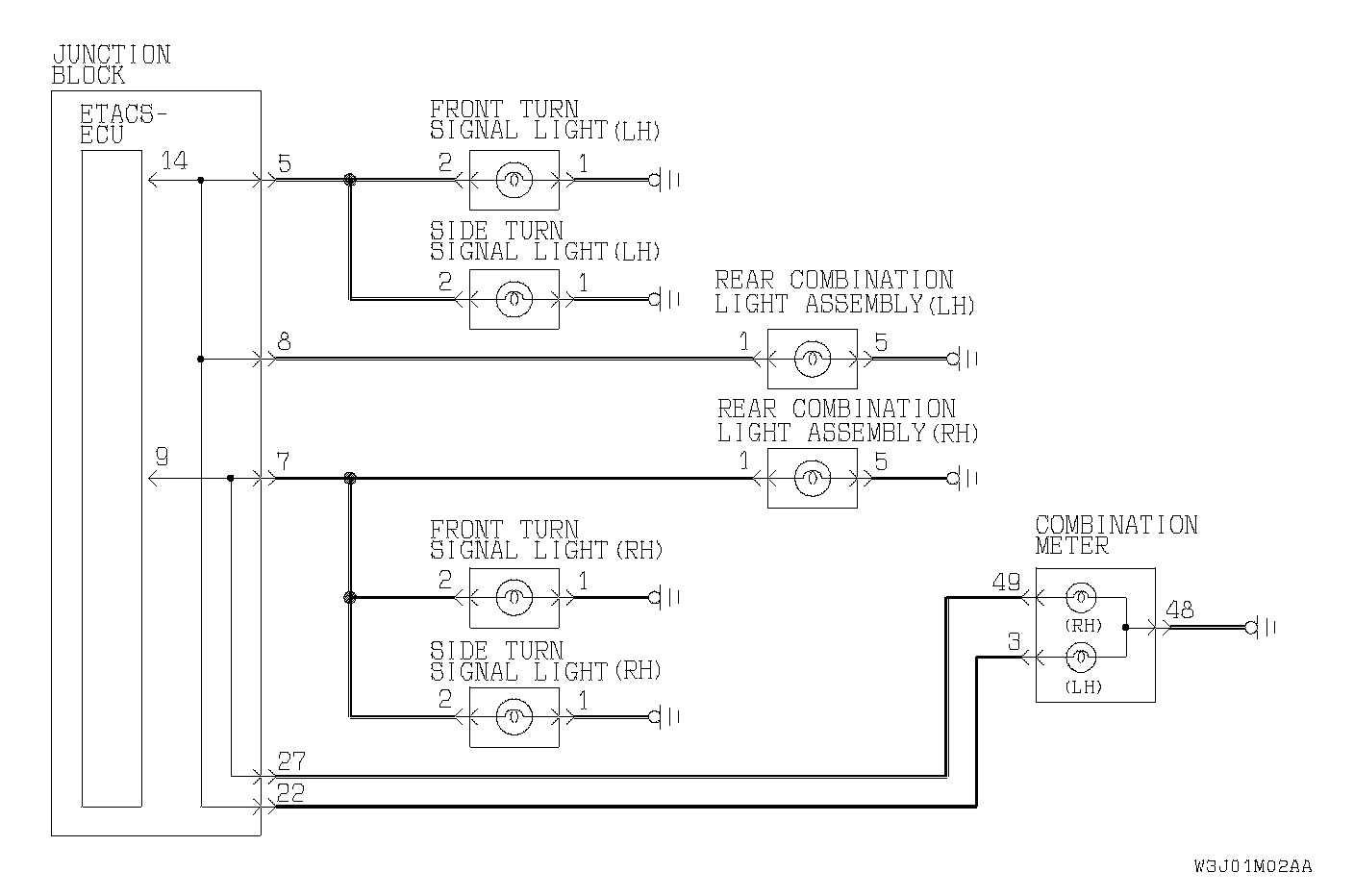

General Circuit Diagram For The Turn Signal Light And Hazard Light Part 2:
