Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
>>
System Diagram
System Diagram

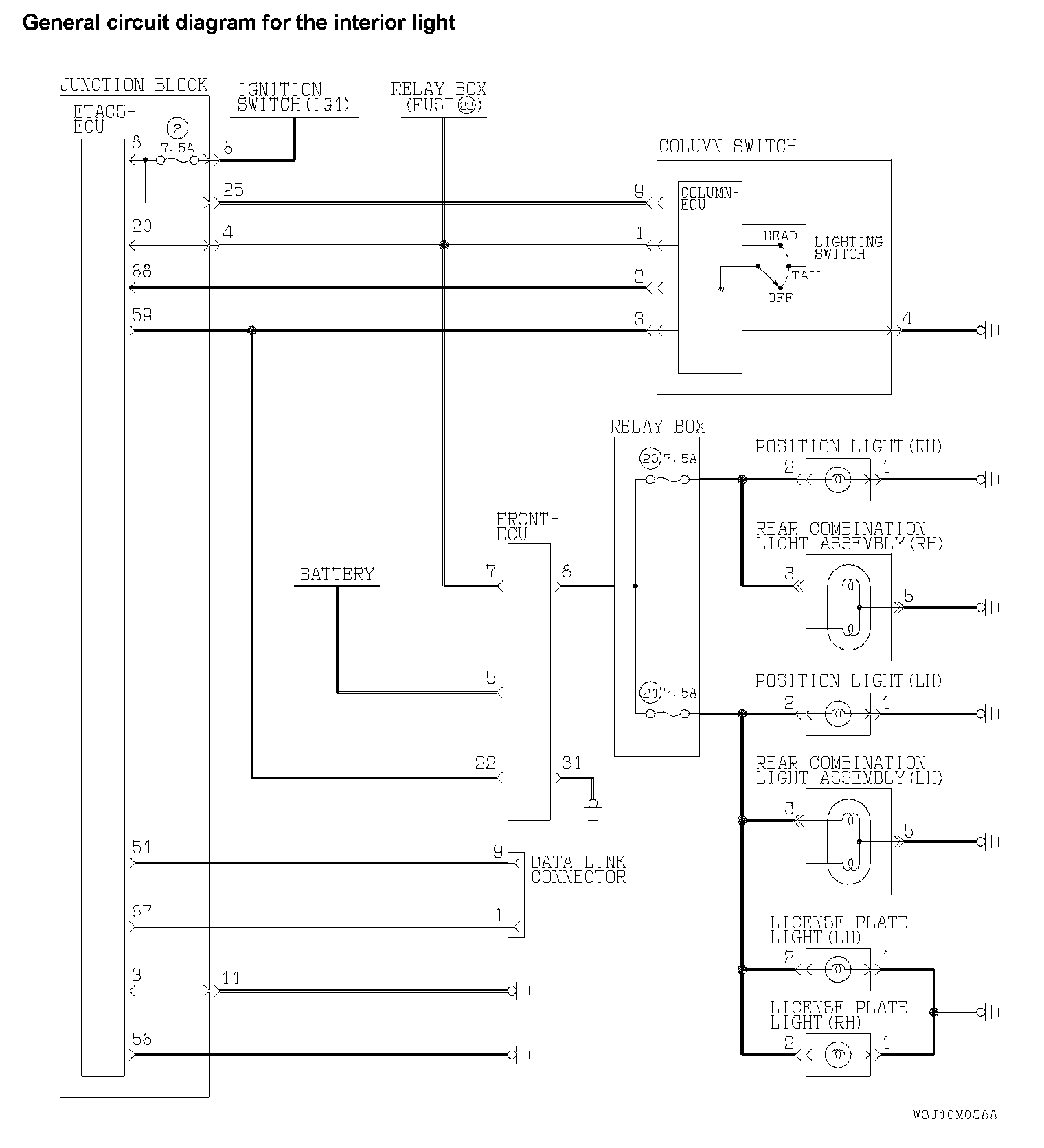

General Circuit Diagram For The Interior Light:
