Rear

HUB BOLT REPLACEMENT

Required Special Tools:
^ MB990767: End Yoke Holder
^ MB991618: Hub Bolt Remover

1. Remove the brake caliper and brake disc.

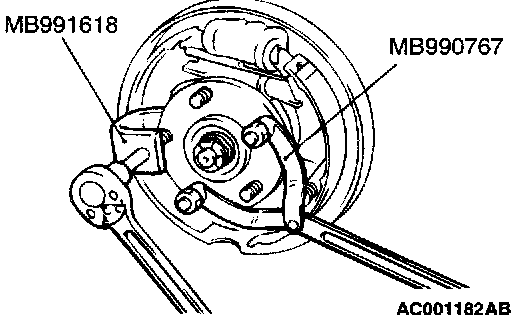

2. Use special tools MB990767 and MB991618 to remove the hub bolts.

NOTE: To retain a space for removing the hub bolts, remove near the retainer spring mounting position.

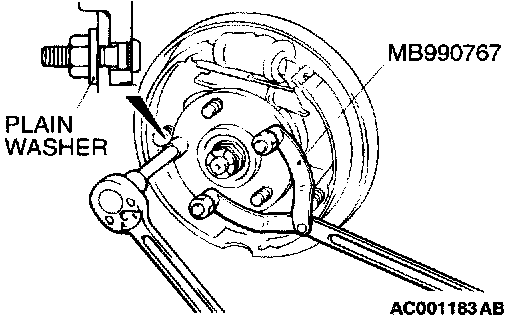

3. Install the plain washer to the new hub bolt, and install the bolt with a nut.
