Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Component Locations
Component Locations

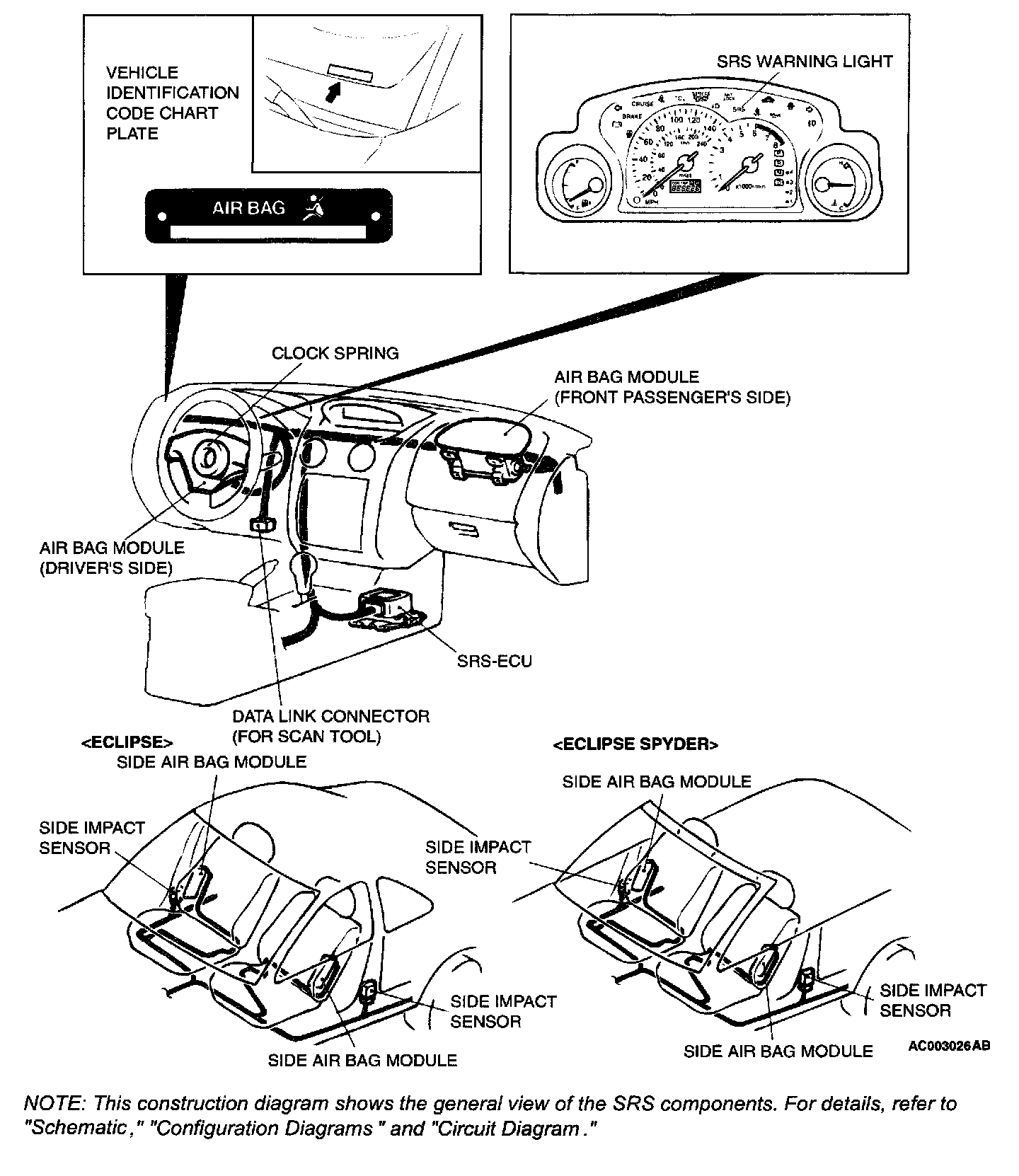

Construction Diagram:

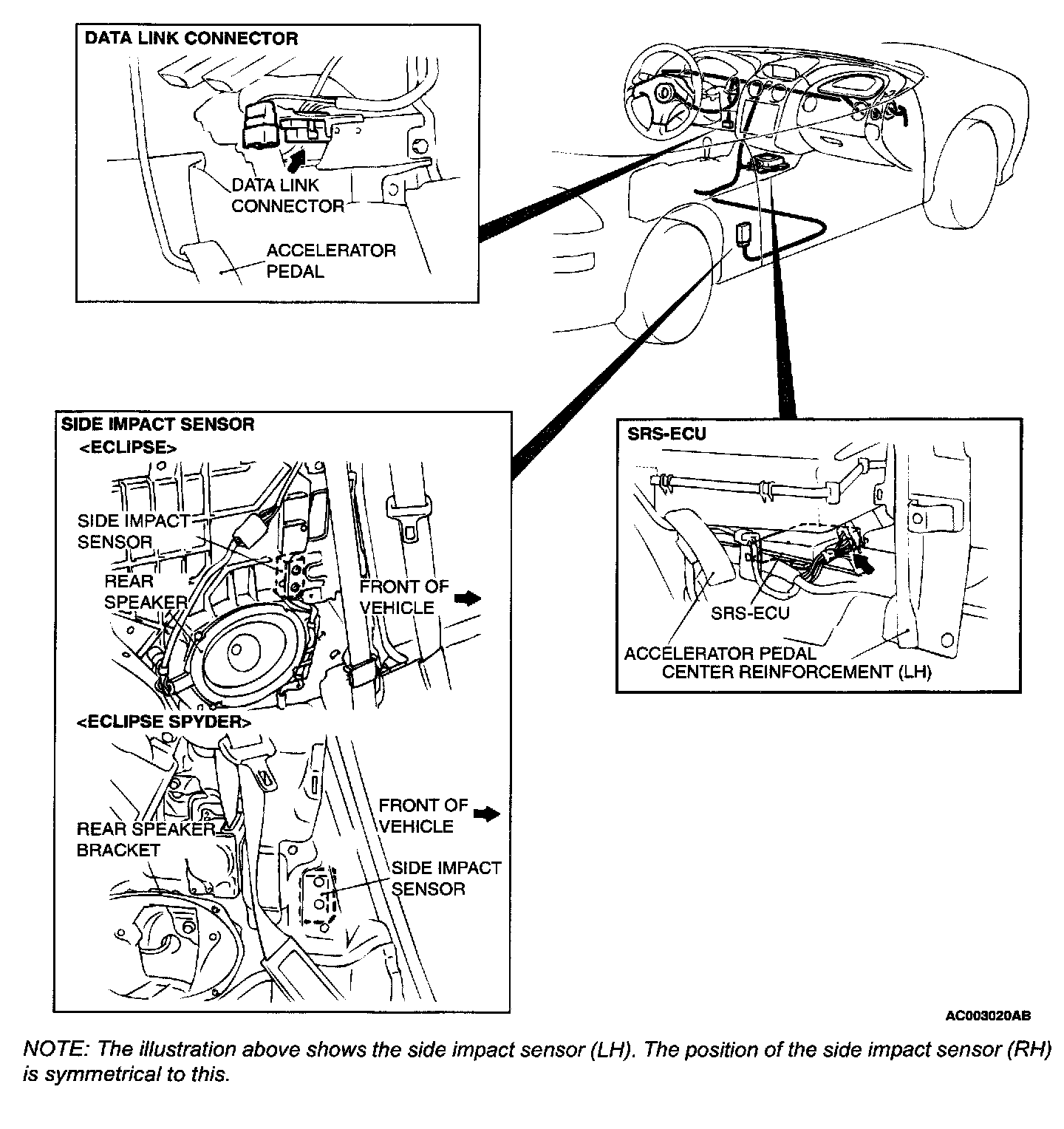

Component Location:
