SRS Air Bag Special Connector

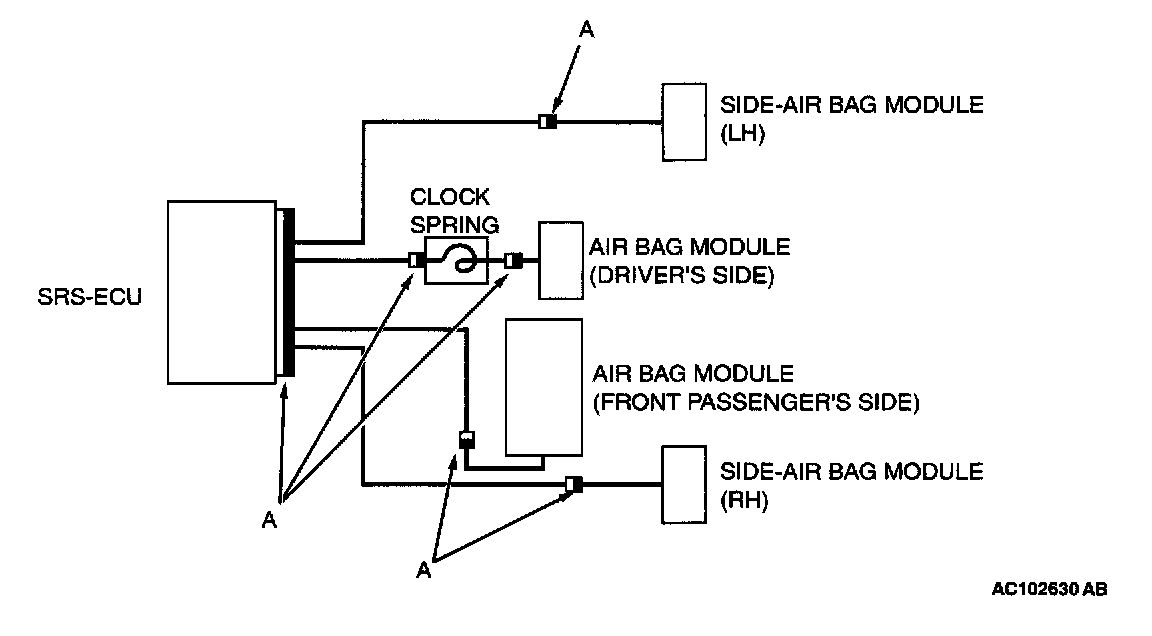

To enhance the system reliability, a connector lock switch is integrated in the SRS-ECU connector, the air bag module connectors and the clock spring connector (black connector "A" shown in the illustration).
To enhance the system reliability, a connector lock switch is integrated in the SRS-ECU connector, the air bag module connectors and the clock spring connector (black connector "A" shown in the illustration).
