Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

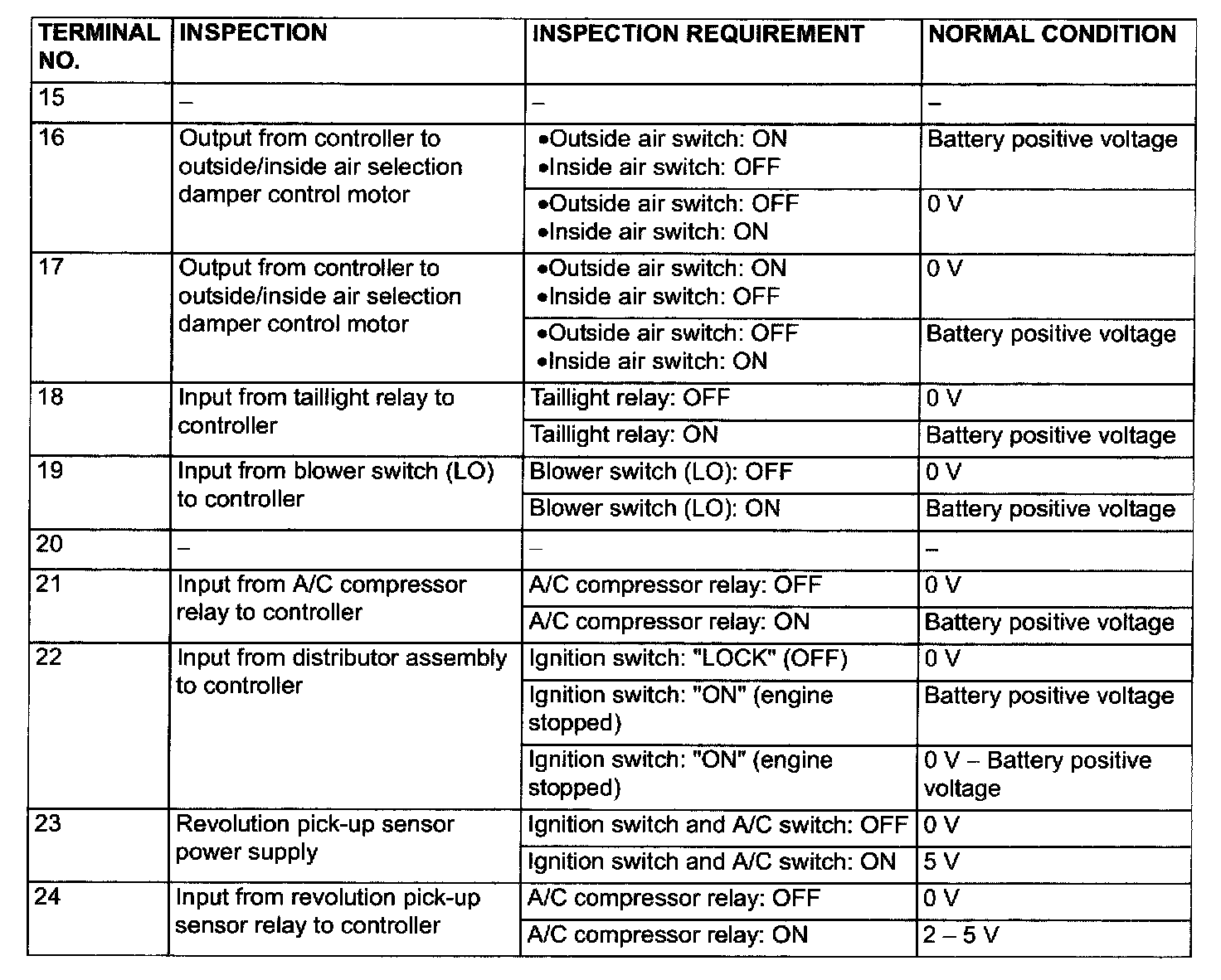

Check At ECU Terminal Part 1:



Check At ECU Terminal Part 2:
