Home
>>
Mitsubishi
>>
2003
>>
Eclipse L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
Clutch Hydraulic System
>>
System Diagram
System Diagram

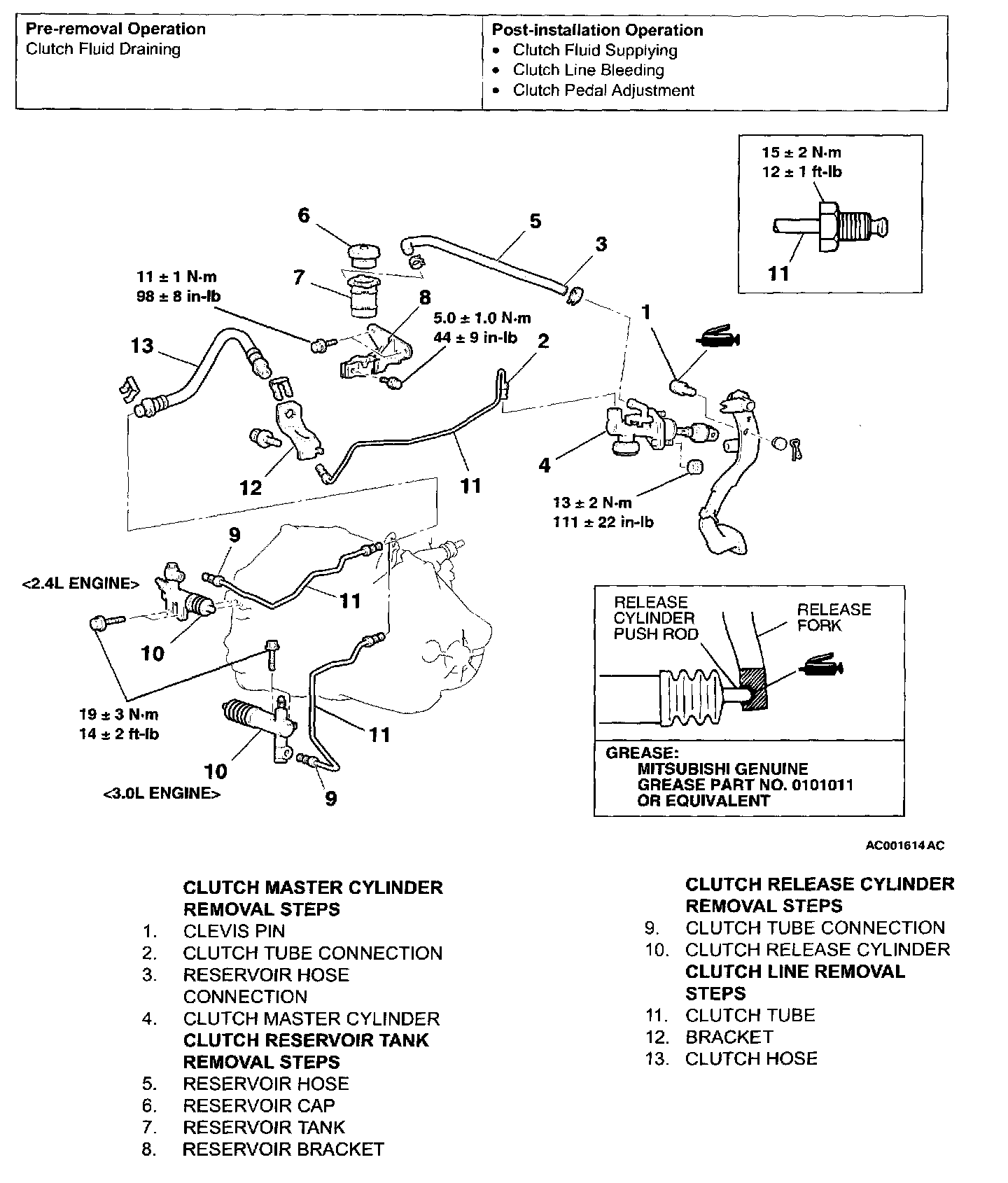

CLUTCH CONTROL REPLACEMENT W/ RELATED COMPONENTS
