Turn Signal Flasher
Turn Signal Flasher

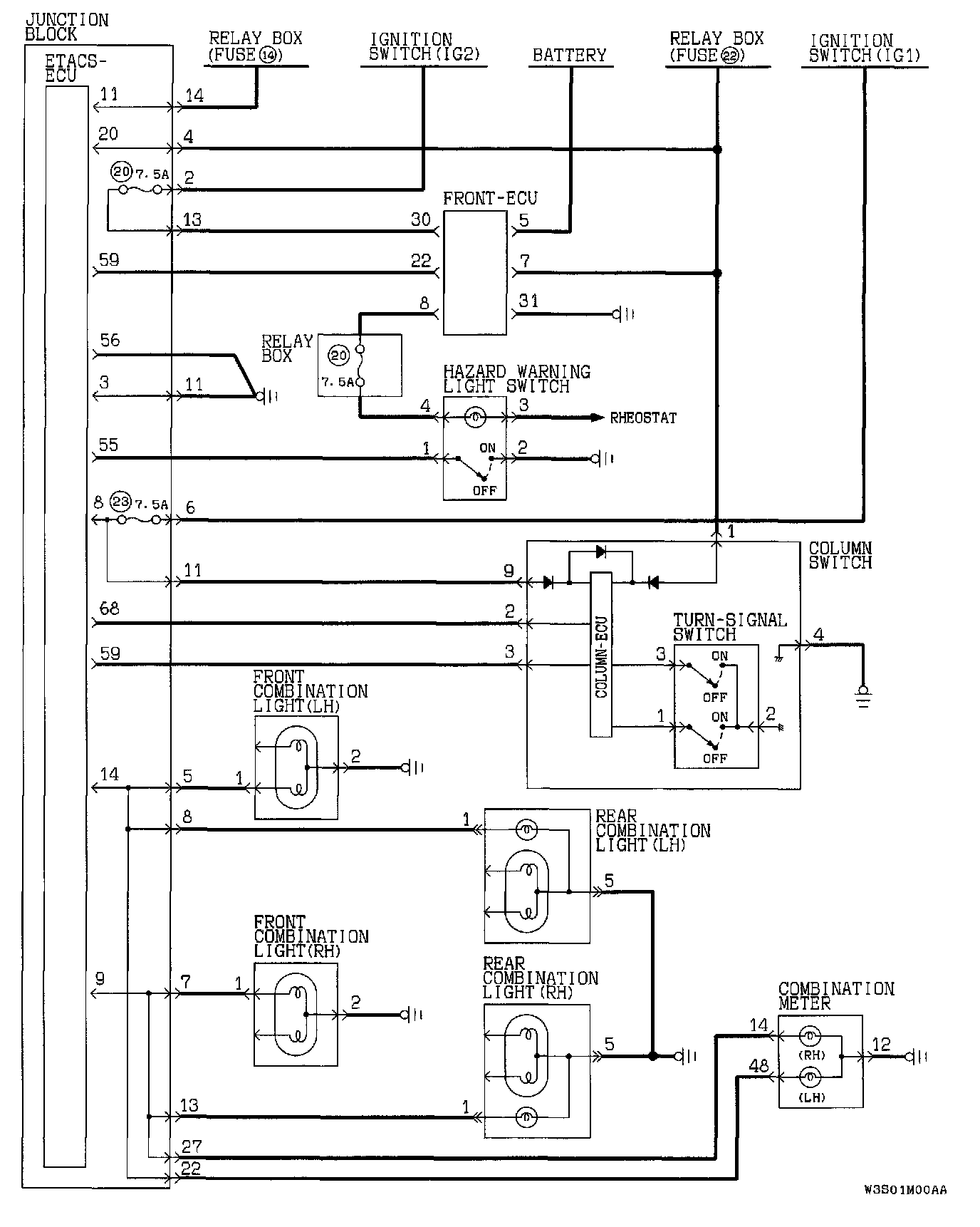

General Circuit Diagram For The Turn Signal Light And Hazard Light:
