Windshield Washer Spray Nozzle: Testing and Inspection

WASHER FLUID EJECTION POINTS CHECK

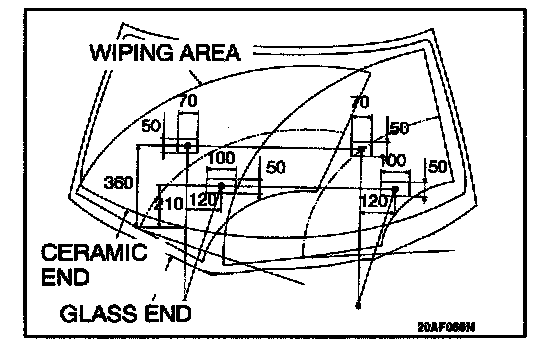

1. Check that the washer fluid contact points are as shown in the illustration.
2. If adjustment is necessary use a metal wire or pin 1.0 mm or less in diameter inserted in the nozzle ball.
