Symptom Related Diagnostic Procedures
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

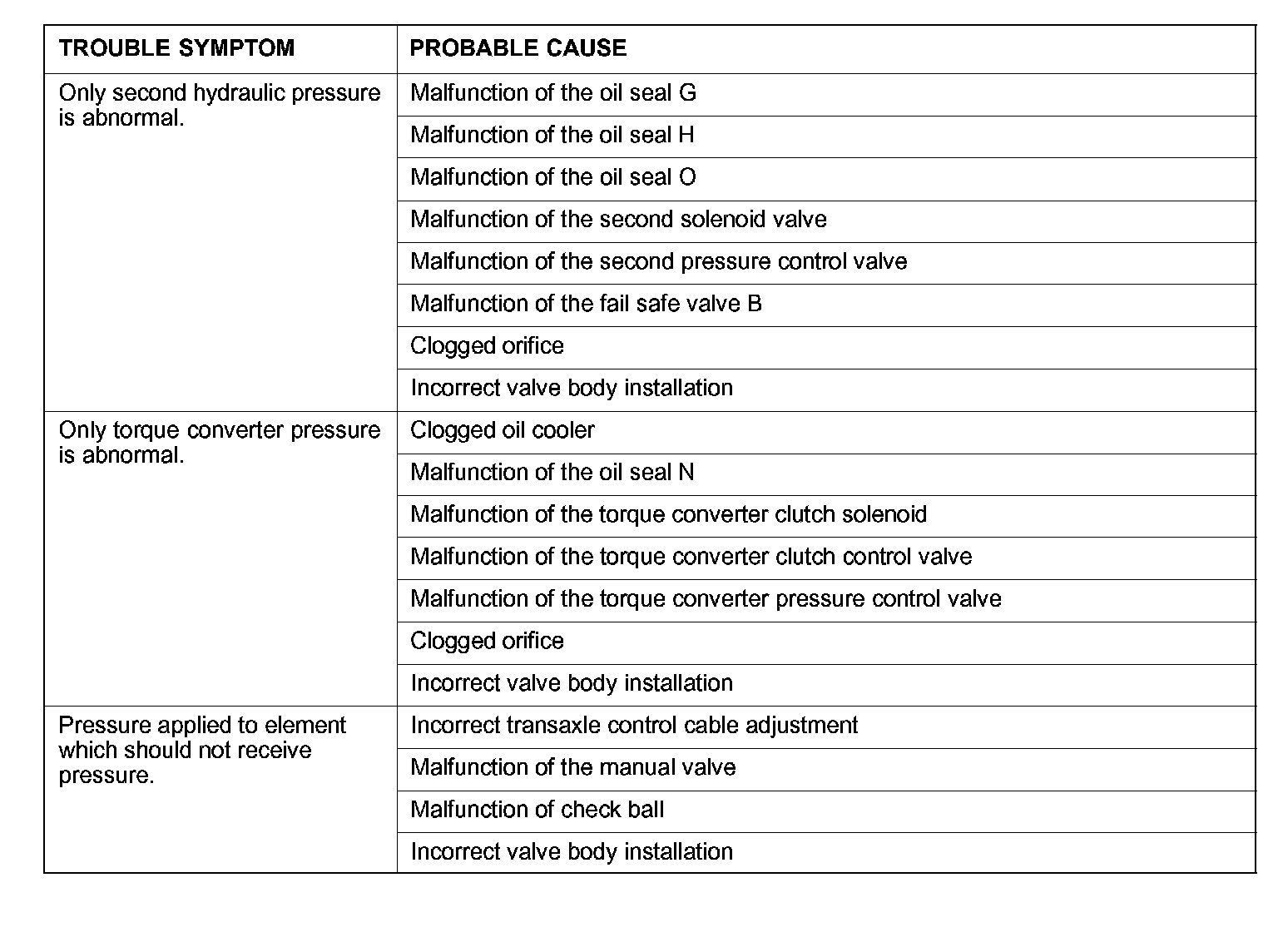

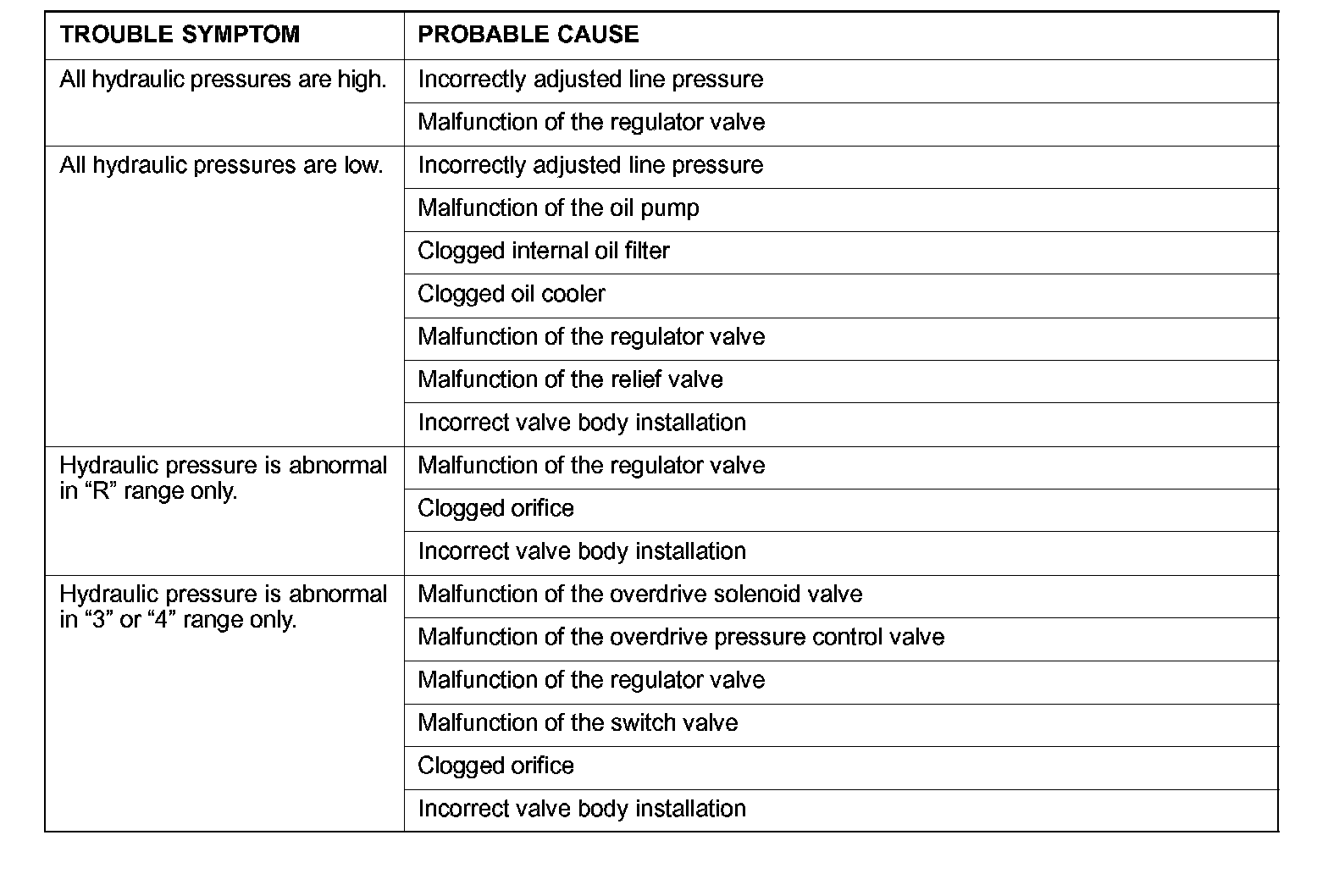

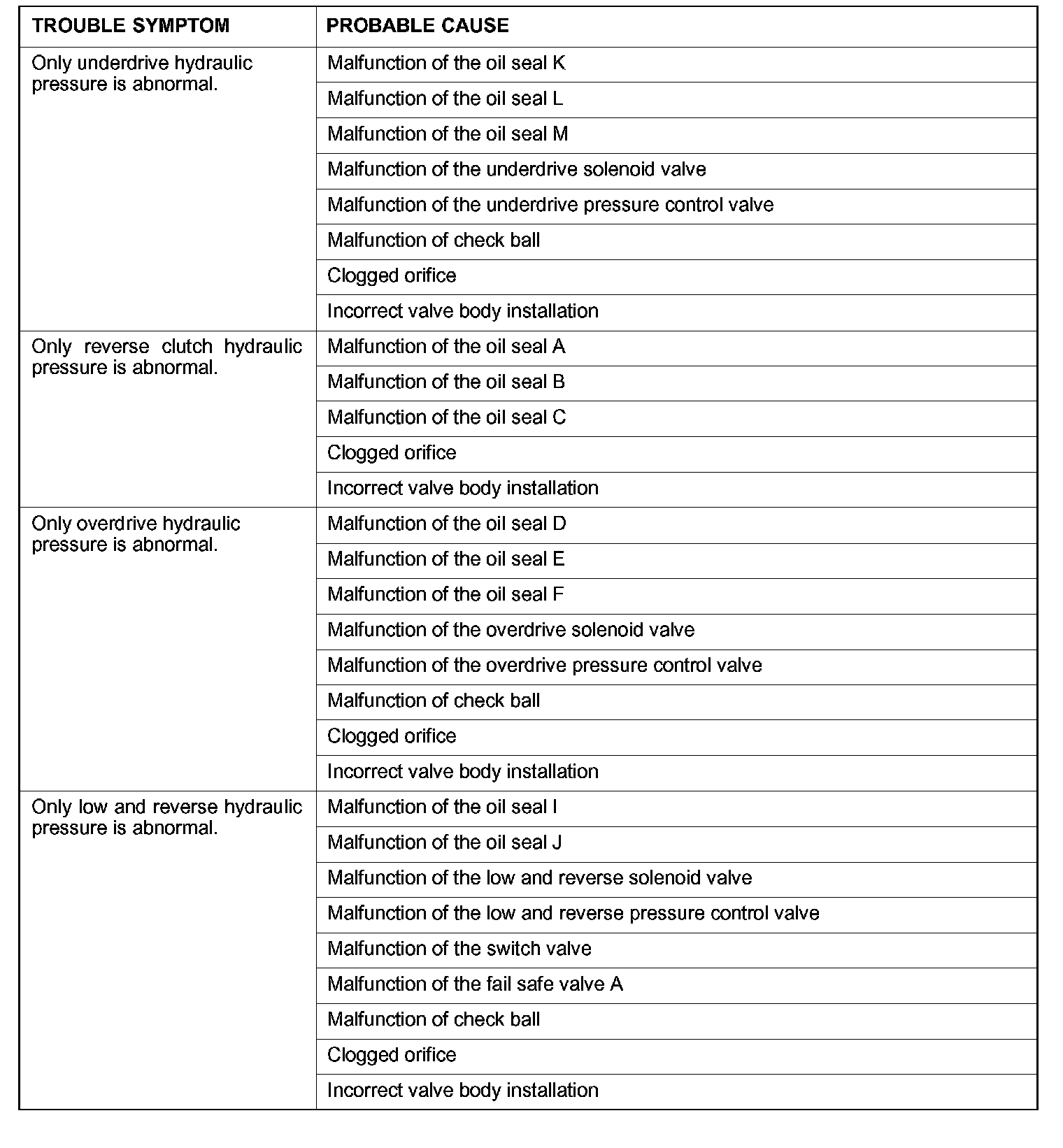

HYDRAULIC PRESSURE TEST DIAGNOSIS TABLE
