Solenoid Valve Check

SOLENOID VALVE CHECK





1. Remove the valve body cover.

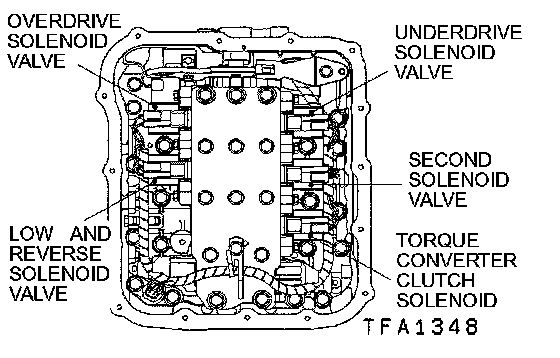

2. Disconnect the connectors of each solenoid valve.

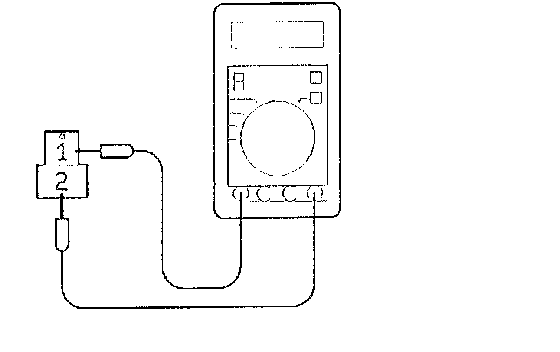

3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

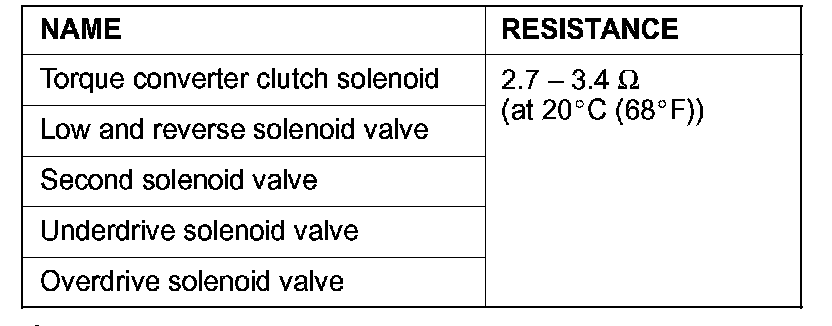

Standard value

4. If the resistance is not within the standard value, replace the solenoid valve.
