Valve Body

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

NOTE: Before removing the solenoid valves, identify each solenoid valve with white paint or similar to facilitate reassembly.

NOTE: Store each solenoid valve separately, according to its location, to avoid incorrect reassembly.

REASSEMBLY SERVICE POINTS

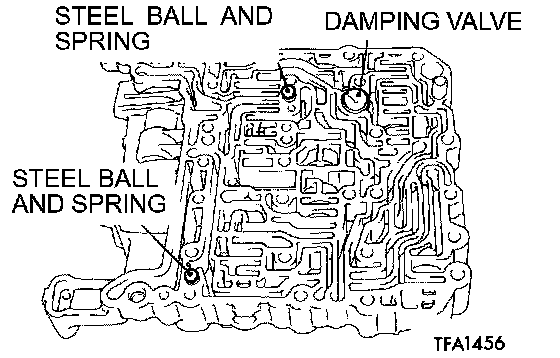

>>A<< SPRING/STEEL BALL/DAMPING VALVE/DAMPING VALVE SPRING INSTALLATION

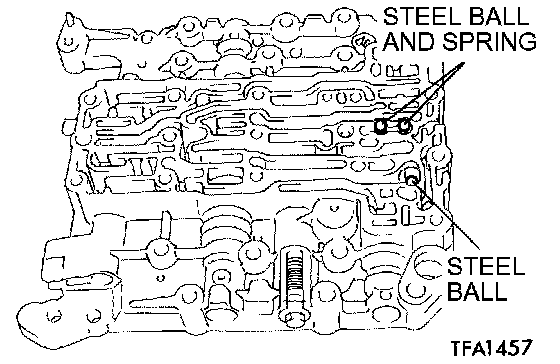

>>B<< SPRING/STEEL BALL INSTALLATION

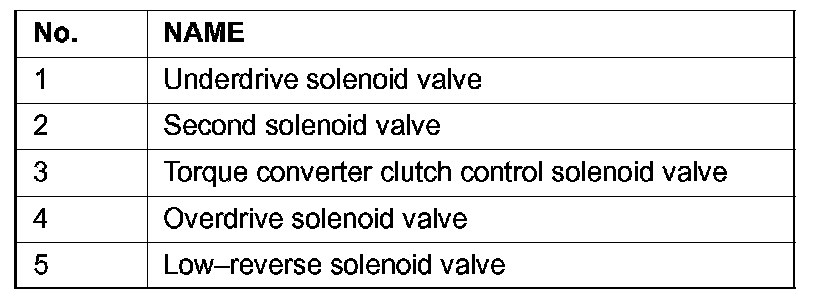

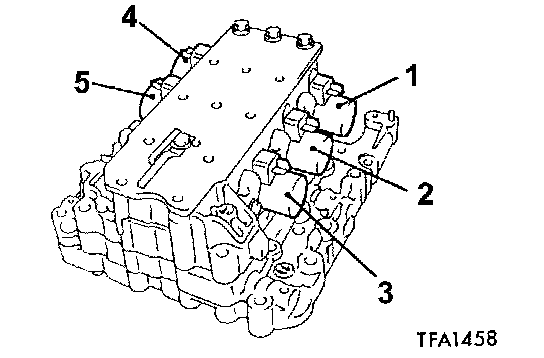

>>C<< SOLENOID VALVES INSTALLATION

1. Apply ATF, blue petroleum jelly or white Vaseline to O-ring, and install carefully.

2. Install the solenoid valves by referring to the marks made during disassembly.
