Oil Pump

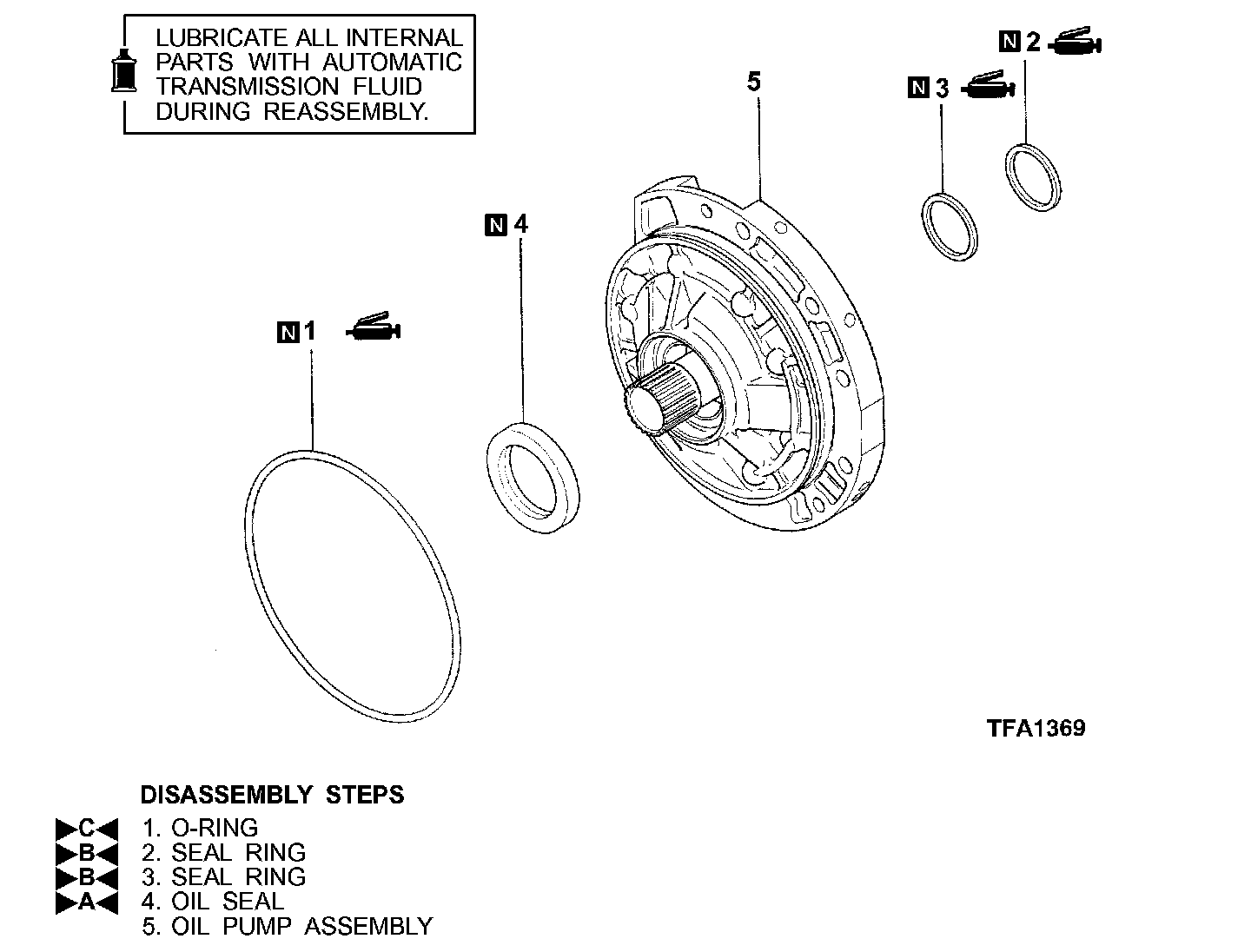

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

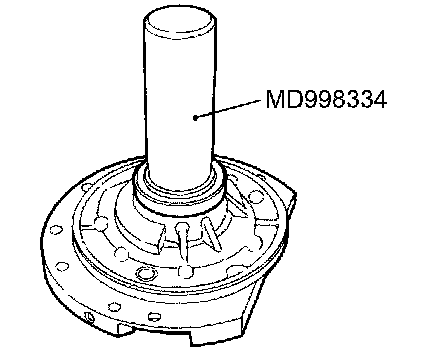

>>A<< OIL SEAL INSTALLATION

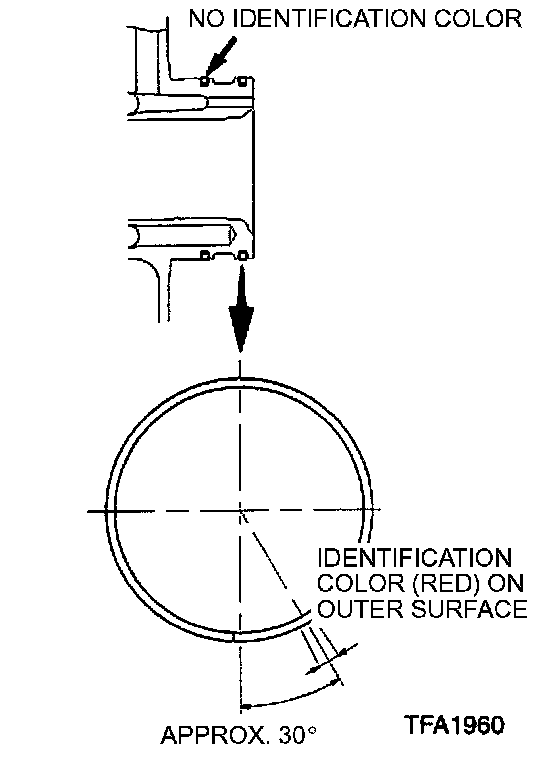

>>B<< SEAL RING INSTALLATION





CAUTION: There are two types of seal rings, with and without identification color. Be sure to install them to their correct positions.

>>C<< O-RING INSTALLATION
Install a new O-ring to the outer groove of the oil pump, and apply ATF, blue petrolatum jelly or white Vaseline to the outer inside diameter of the O-ring.
