Differential

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

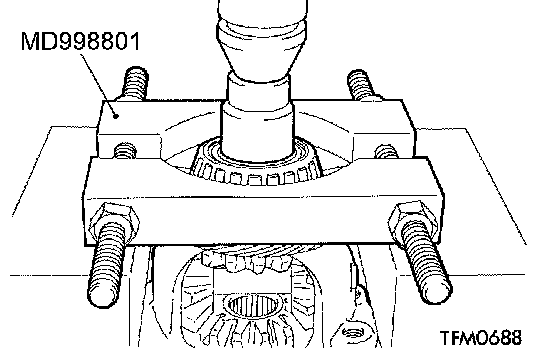

<> TAPER ROLLER BEARING REMOVAL

REASSEMBLY SERVICE POINTS
>>A<< SPACER, SIDE GEAR, WASHER, PINION, PINION SHAFT INSTALLATION

1. Install the spacers to the back side of the side gears, and then assemble the side gears into the differential case.

NOTE: Select the medium size spacer[0.93 - 1.00 mm (0.0366 - 0.0394 inch)] when assembling a new side gear.

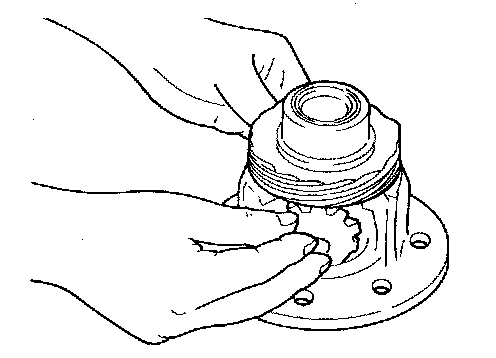

2. Attach the washers to the back side of the pinions, engage the pinions simultaneously to the side gears, and settle the gears by turning.

3. Insert the pinion shaft.

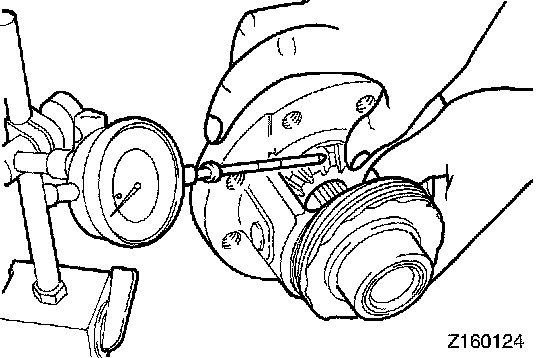

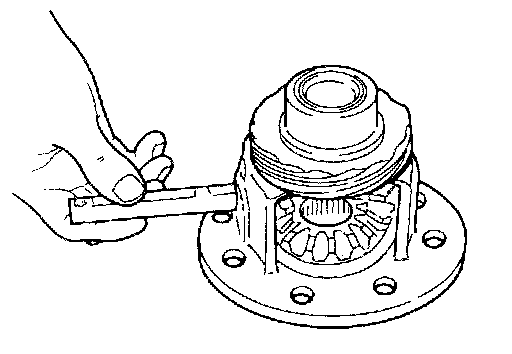

4. Measure the backlash between the side gears and pinions.
Standard value: 0.025 - 0.150 mm (0.00098 - 0.00591 inch)
5. If not within the standard value, change a spacer and measure the backlash again.

NOTE: Adjust so that both backlashes are equal.

>>B<< LOCK PIN INSTALLATION

1. Install the chamfered side of the lock pin first.

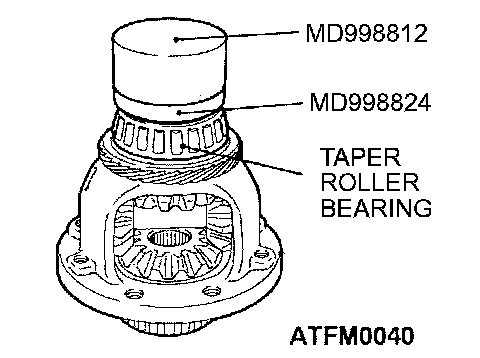

>>C<< TAPER ROLLER BEARING INSTALLATION

>>D<< DIFFERENTIAL DRIVE GEAR INSTALLATION

Apply ATF to the bolt, tighten the bolts to the specified torque in the shown sequence.
Standard value: 132 Nm (98 ft. lbs.)
