Automatic Transmission/Transaxle: Adjustments

LINE PRESSURE ADJUSTMENT





1. Discharge the automatic transmission fluid, and then remove the valve body cover.

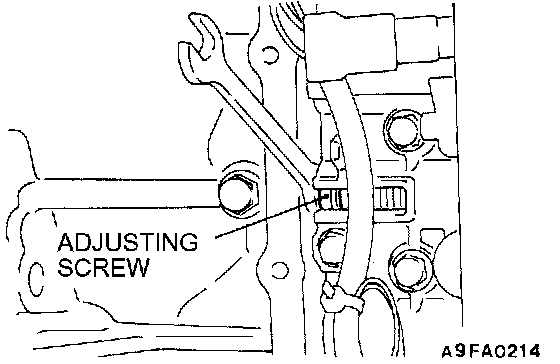

2. Turn the adjusting screw shown in the illustration to adjust the underdrive pressure in "D" range 1st or 2nd gear to the standard value. The pressure increases when the screw is turned to the left.

NOTE: When adjusting the underdrive pressure, adjust to the middle of the standard value range.

Standard value: 1,010 - 1,050 kPa (147 - 152 psi)
Change in pressure for each turn of the adjusting screw: 35 kPa (5.1 psi)
3. Install the valve body cover, and pour in the standard volume of automatic transmission fluid.
4. Carry out a hydraulic pressure test. Readjust the line pressure if necessary.
