Front Suspension

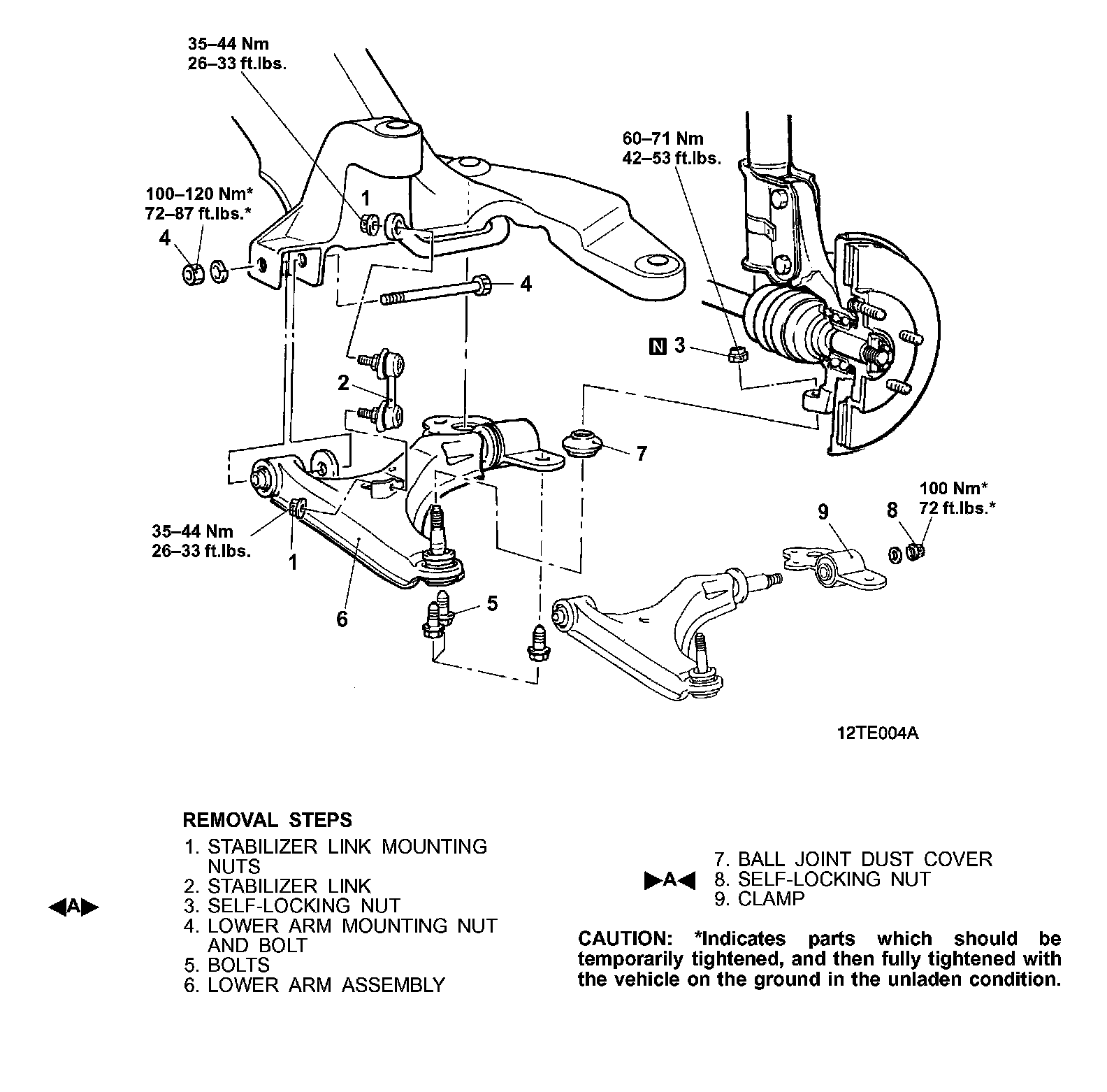

REMOVAL AND INSTALLATION

CAUTION: *Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

REMOVAL SERVICE POINTS

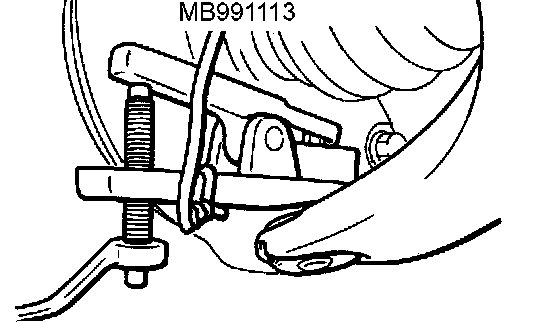

[[A]] DISCONNECTION OF LOWER ARM BALL JOINT AND KNUCKLE





CAUTION: Be sure to tie the cord of the special tool to a nearby part.

CAUTION: Loosen the nut but do not remove it.

INSTALLATION SERVICE POINTS
]]A[[ SELF-LOCKING NUT INSTALLATION

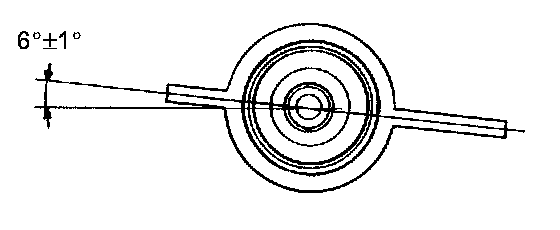

1. After positioning the clamp at the angle indicated, install the self-locking nut.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the lower arm for bends or damage.
^ Check the ball joint dust cover for cracks.
^ Check all bolts for condition and straightness.
^ Check clamp for deterioration or damage.

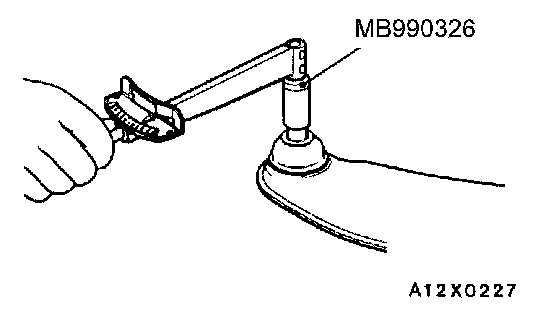

BALL JOINT BREAKAWAY TORQUE CHECK





Standard value: 10.0 - 22.0 Nm (87 - 190 inch lbs.)

BALL JOINT DUST COVER REPLACEMENT





1. Remove the dust cover.

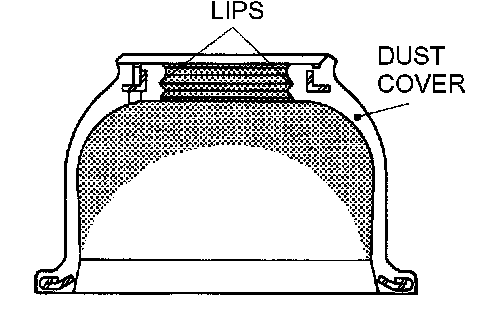

2. Apply multipurpose grease to the lip and inside of the dust cover.

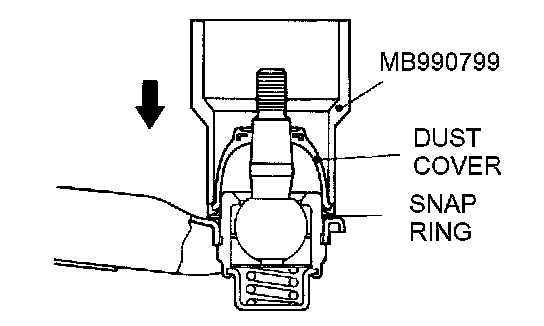

3. Using the special tool, drive in the dust cover to the position shown in the illustration.
