Removal and Replacement

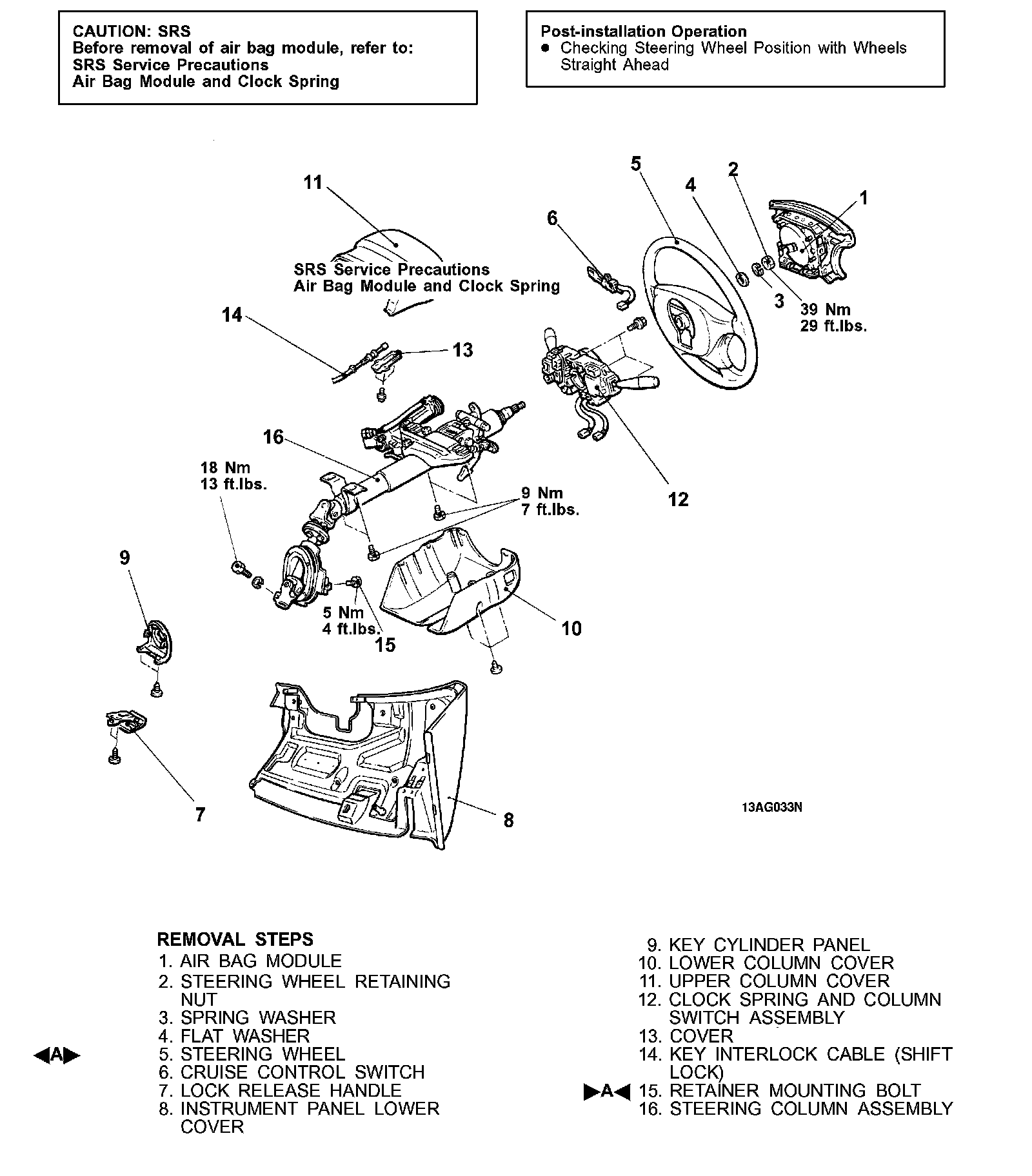

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT





[[A]] STEERING WHEEL REMOVAL

INSTALLATION SERVICE POINTS
]]A[[ RETAINER MOUNTING BOLT





1. Before installing the bolt, coat the mounting hole on the toe board with the specified sealant.
Specified Sealant: Three-bond 1104 or equivalent product.
