Overhaul

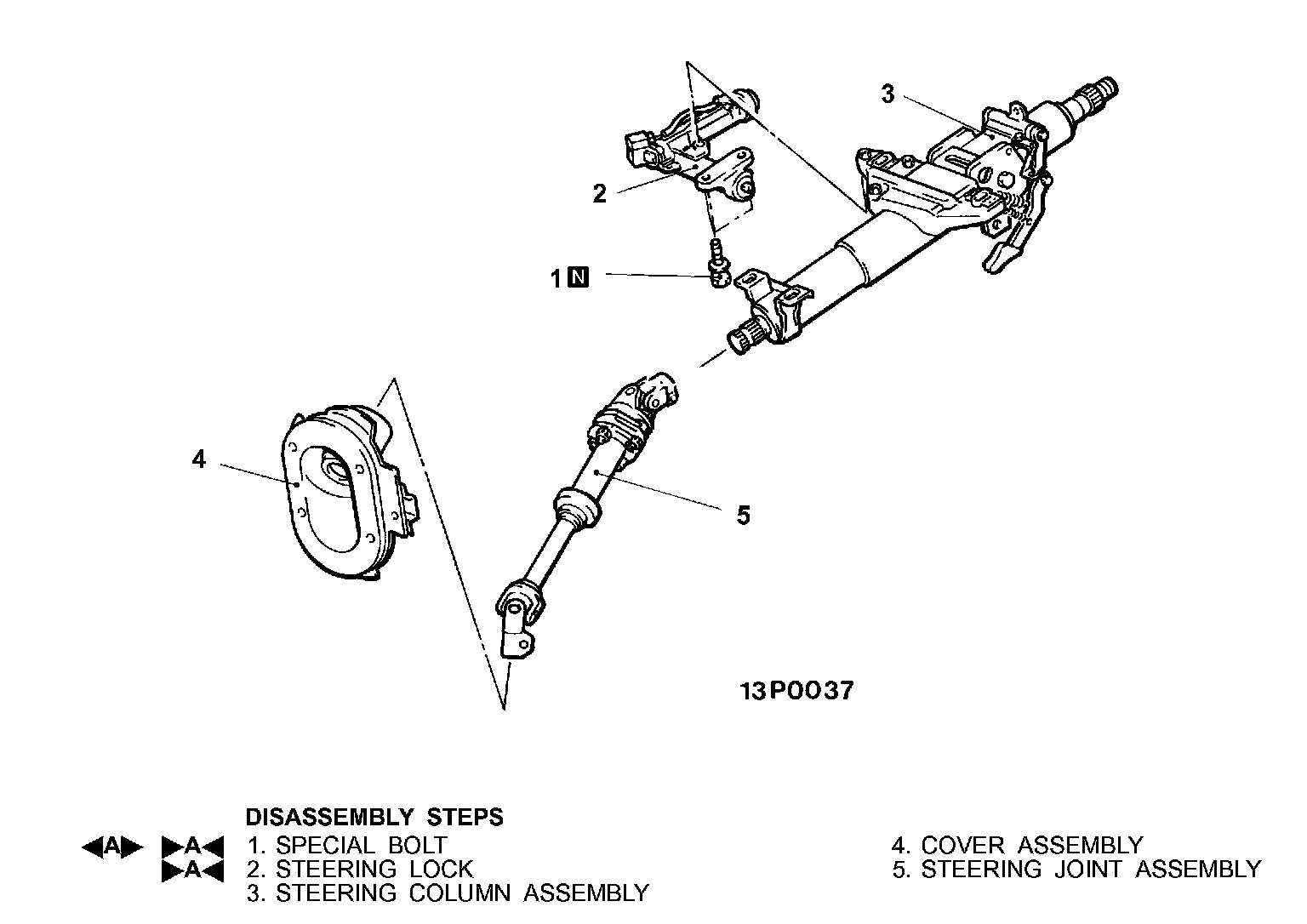

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

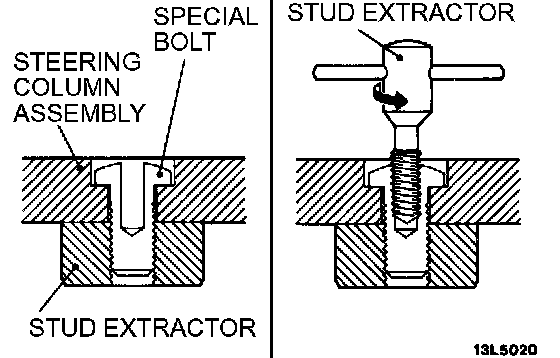

[[A]] SPECIAL BOLT





1. Drill a hole in the special bolt to a depth to enable a suitable size stud extractor to stand up.
2. Using the stud extractor, remove the special bolt.

REASSEMBLY SERVICE POINTS

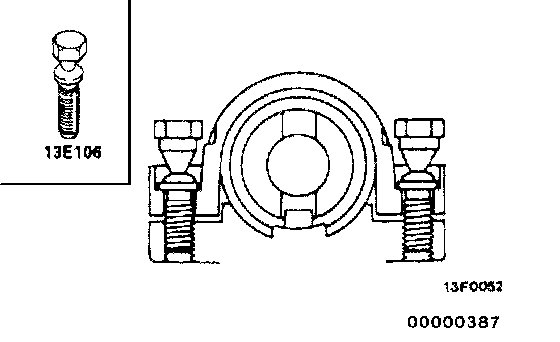

]]A[[ STEERING LOCK CYLINDER/STEERING LOCK BRACKET/SPECIAL BOLT INSTALLATION





1. When installing the steering lock and steering lock bracket to the column tube, temporarily install the steering lock in alignment with the column boss.
2. After checking that the lock works properly, tighten the special bolts until the head twists off.

CAUTION: The steering lock bracket and bolts must be replaced with new ones when the steering lock is installed.

INSPECTION
^ Check the steering shaft for play and rough movement.
^ Check the joints for play, damage, or rough movement.
^ Check the joint bearing for wear and damage.
^ Check the dust shield for damage.
