Key Reminder Switch: Testing and Inspection

KEY REMINDER SWITCH, KEY HOLE ILLUMINATION LIGHT CONTINUITY CHECK
1. Remove the instrument undercover (Refer to Instrument Panel).

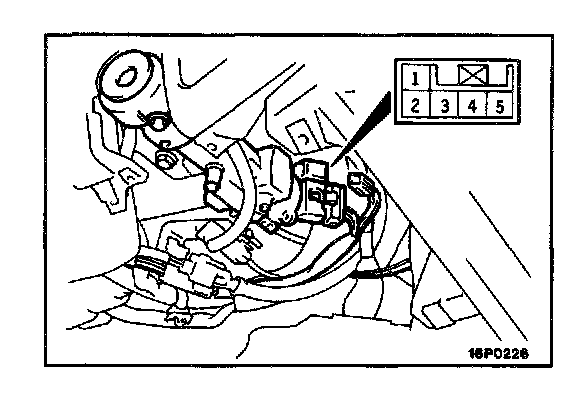

2. Disconnect the wiring connector from the key reminder switch and connect an ohmmeter to the switch side connector.

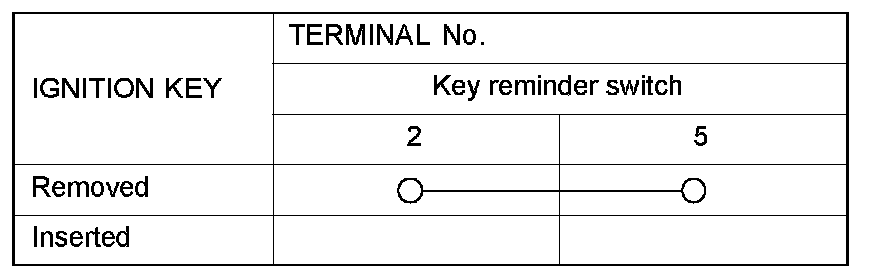

3. Check the continuity when the ignition key is pulled out of and inserted into the steering lock cylinder.
