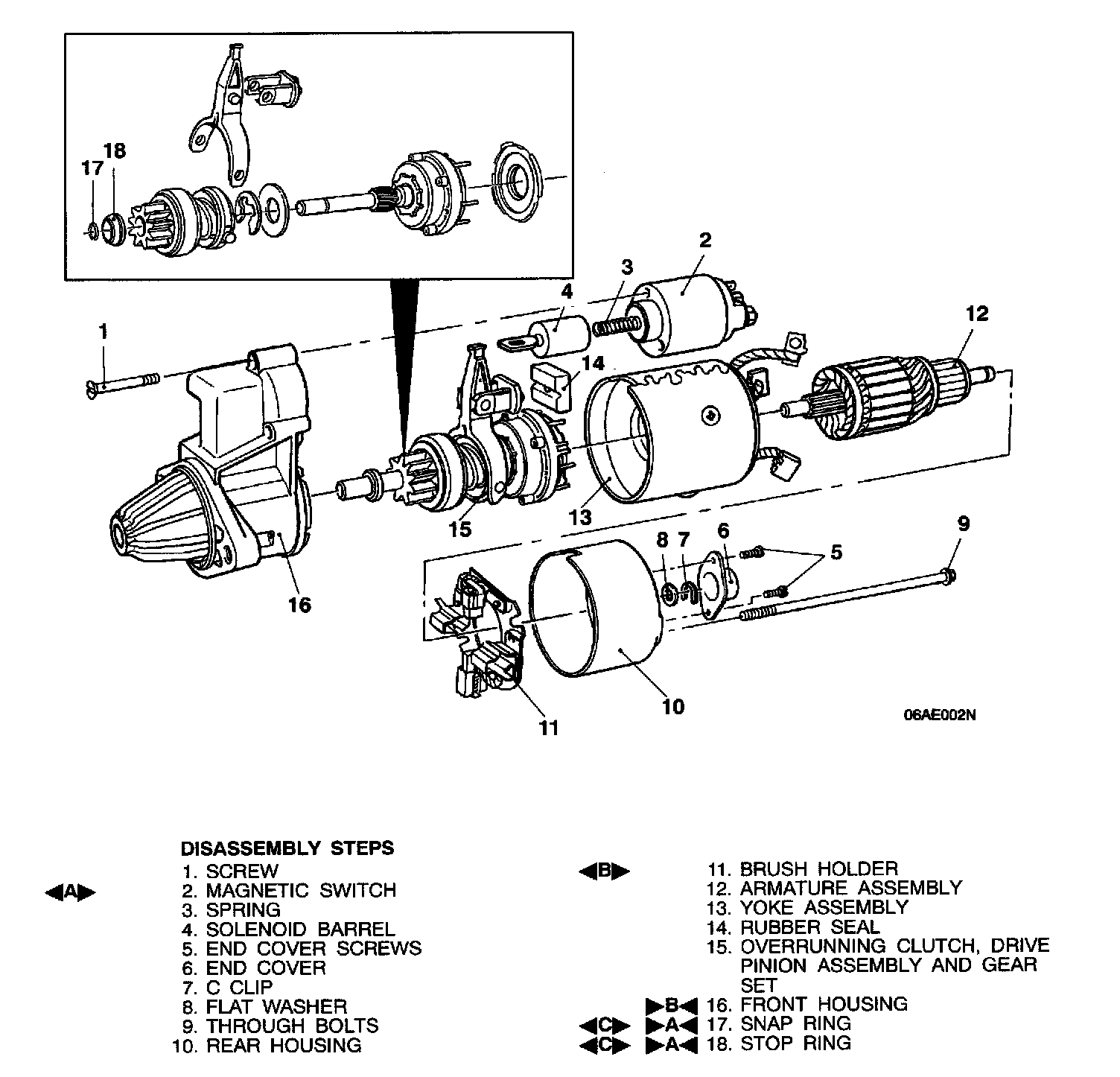

Overhaul
DISASSEMBLY SERVICE POINTS
MAGNETIC SWITCH REMOVAL
1. Disconnect the field coil wire from terminal M of the magnetic switch.
BRUSH HOLDER REMOVAL
1. Mark the position of the brush holder in relation to the yoke assembly.
2. Prise back the brush retaining lugs of the brushes which are connected to the yoke assembly and remove the brush plate.
1. Press the stop ring, by using an appropriate socket wrench.
2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.
REASSEMBLY SERVICE POINT
Stop Ring/Snap Ring Installation:
>A< STOP RING AND SNAP RING INSTALLATION
Using a suitable pulling tool, pull the overrunning clutch stop ring over the snap ring.

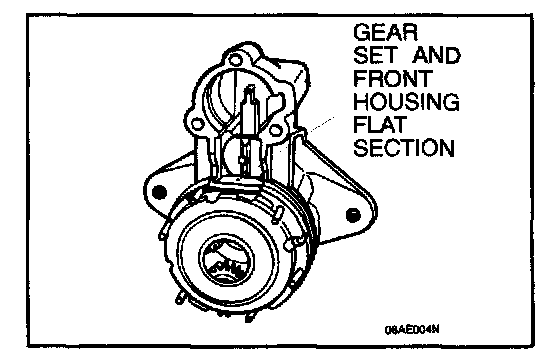

>B< GEAR SET HOUSING INSTALLATION
Ensure the flat of the gear set housing and the flat of the front housing are aligned together.
