Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)

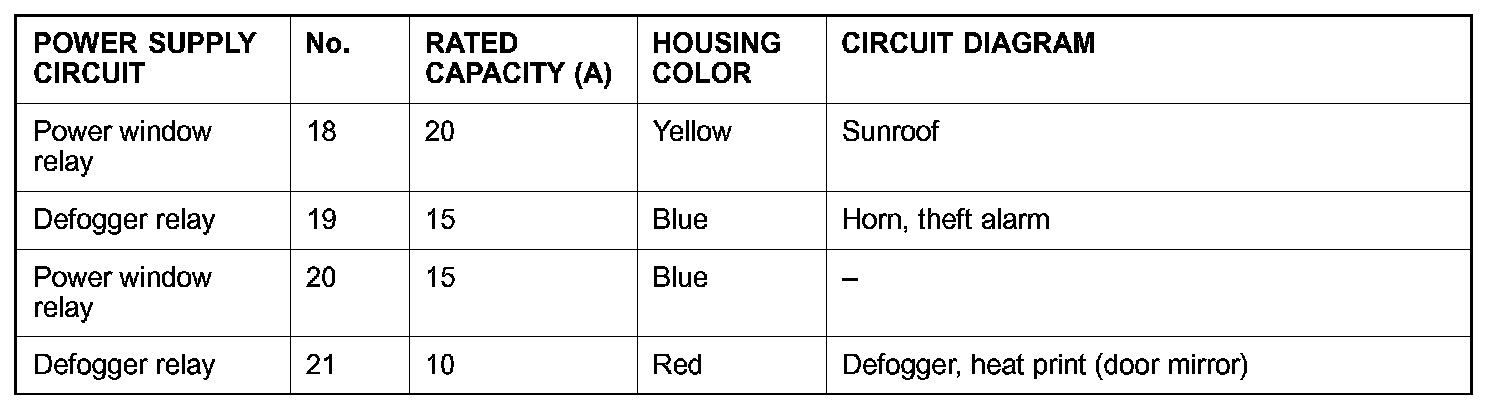

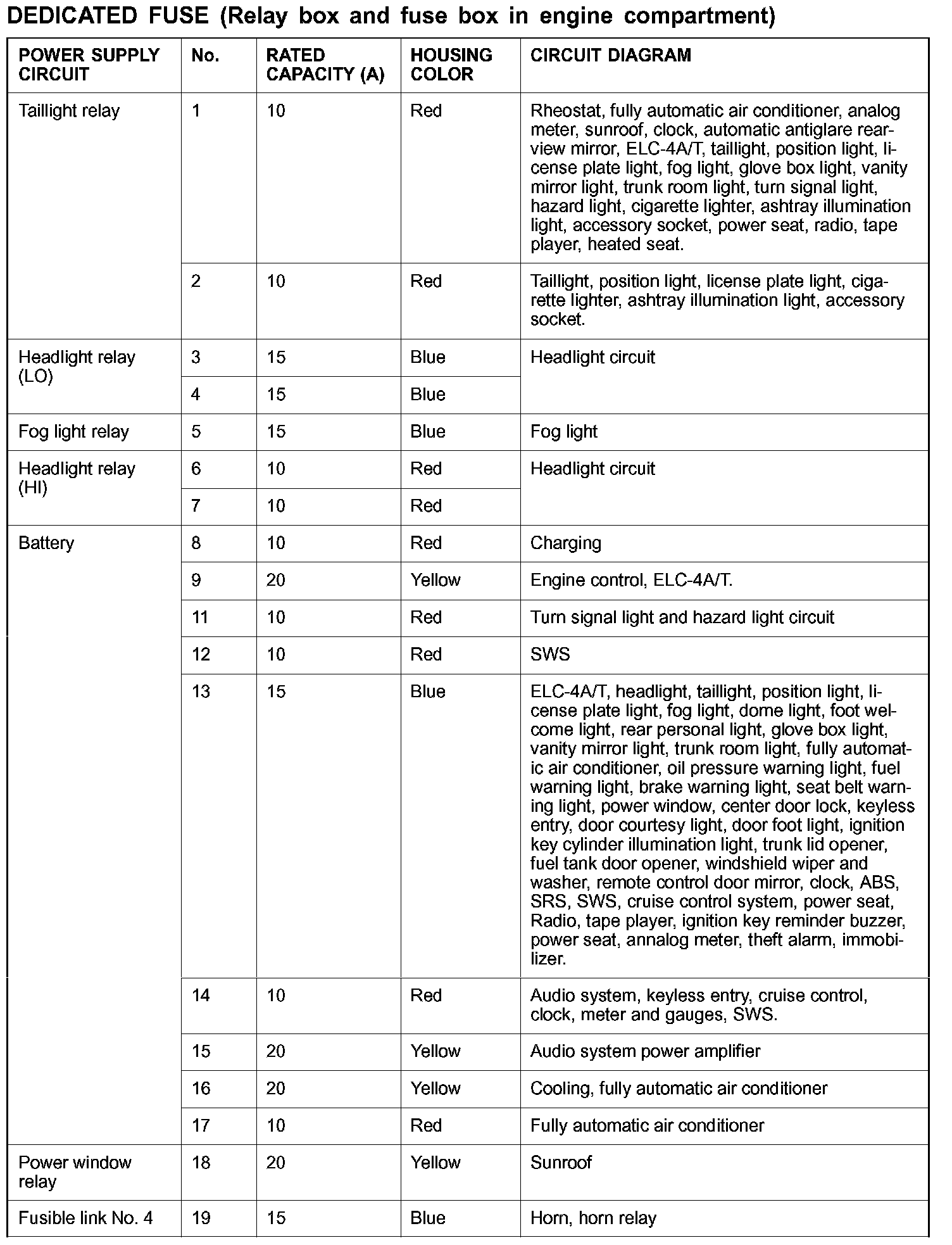

Application Table:
Application Table:

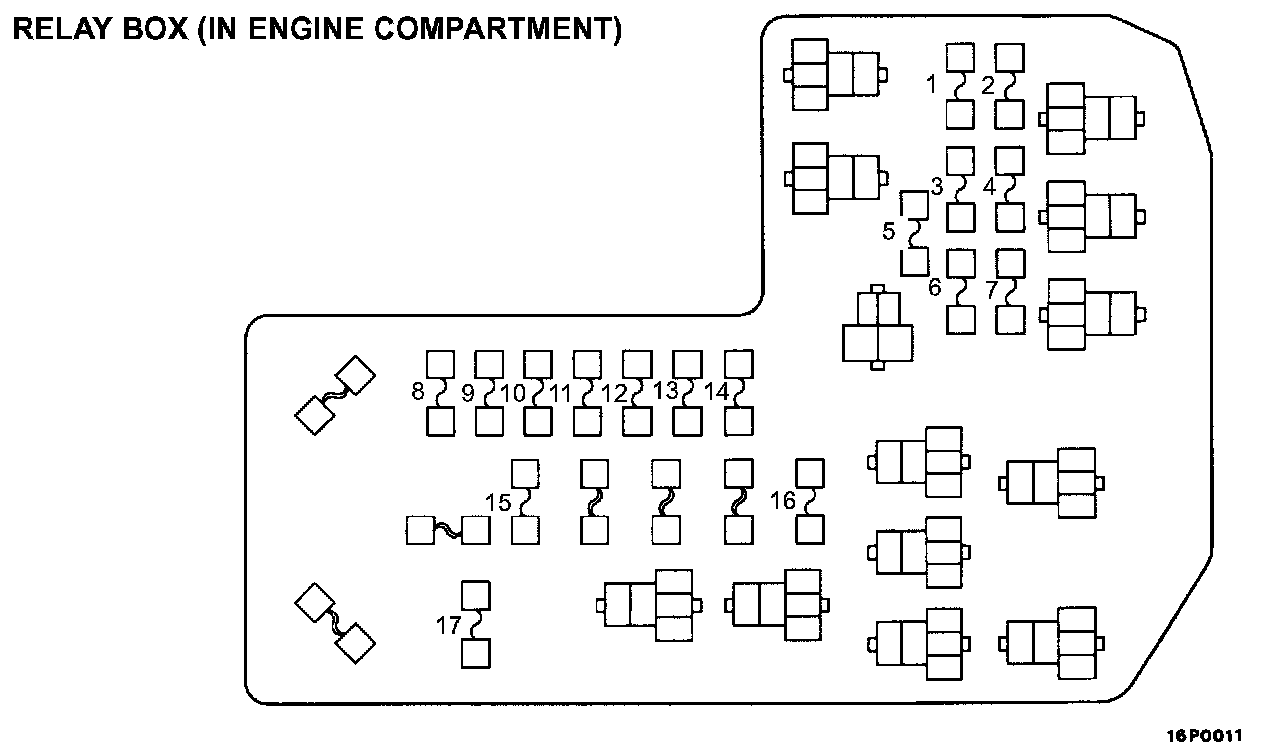

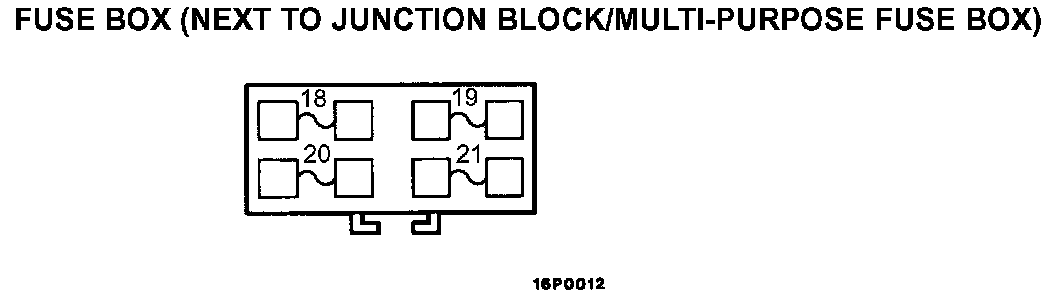

Location View:
Location View:
