Diamante V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics
INSPECTION
FRONT

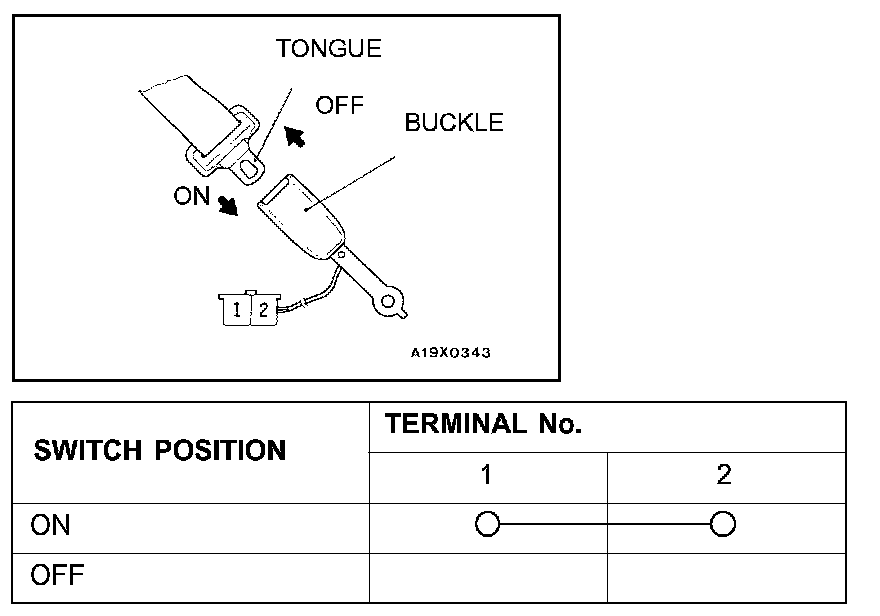

SEAT BELT BUCKLE SWITCH
CONTINUITY CHECK
