Connector Locations

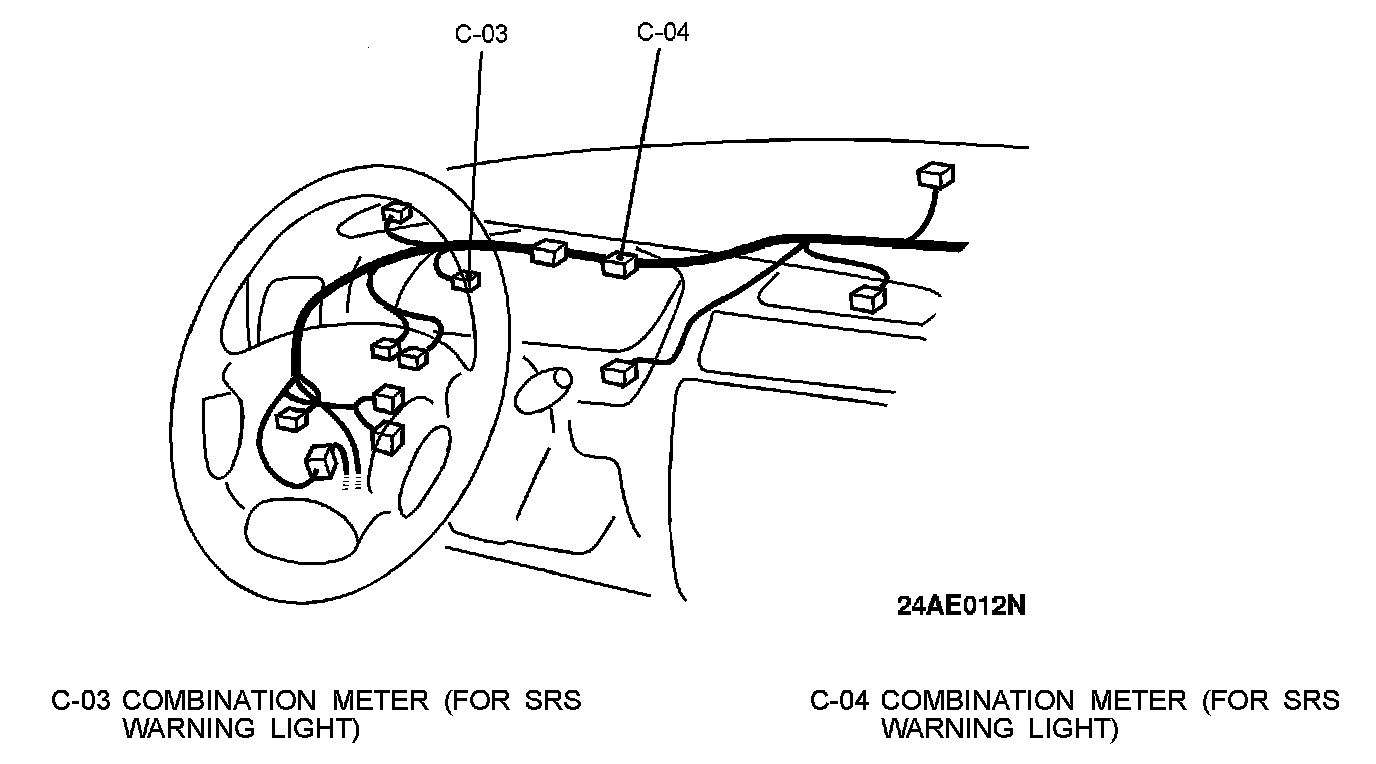

Configuration Diagram - Steering Column/Dash Panel:

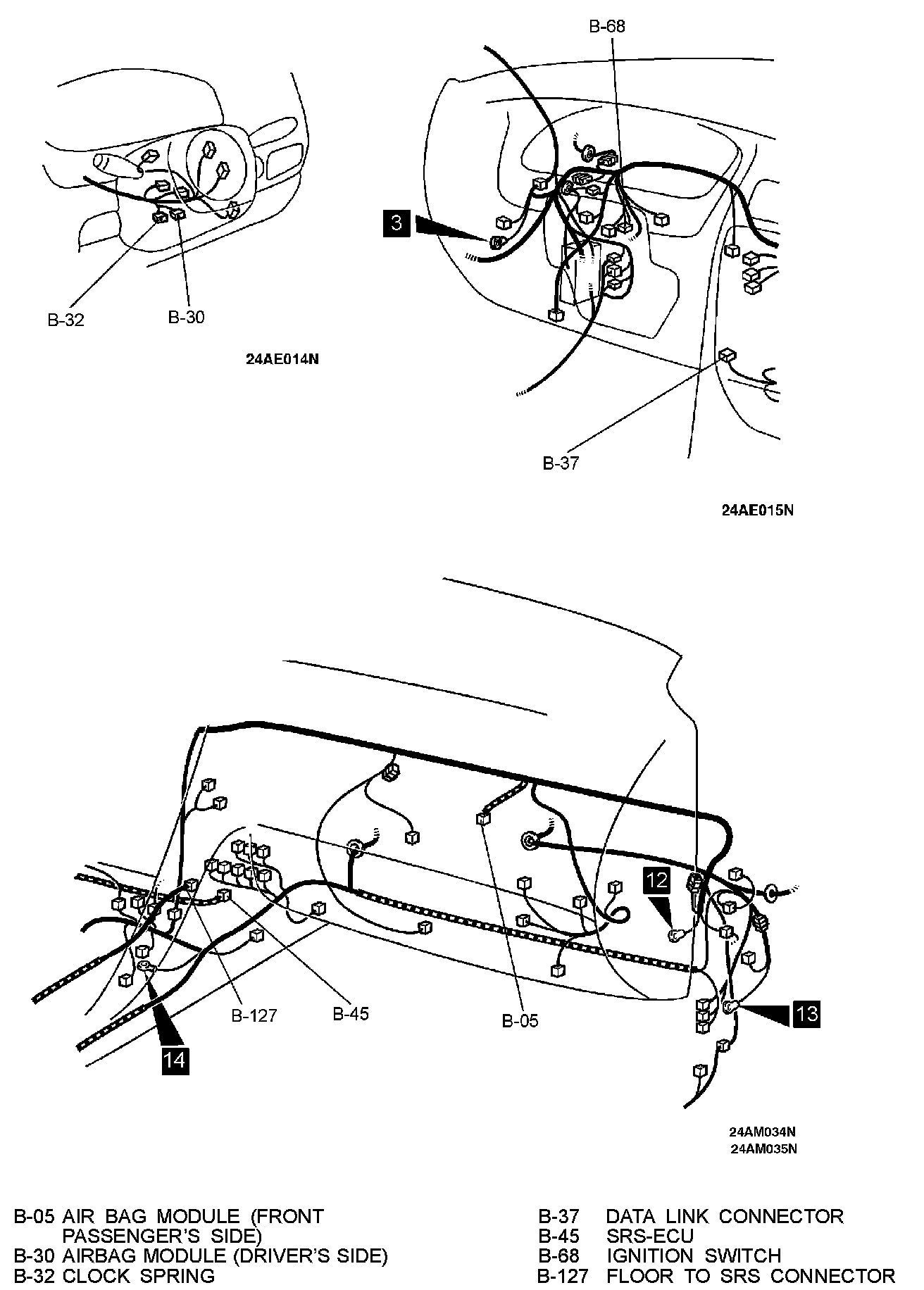

Configuration Diagram - Dash Panel:

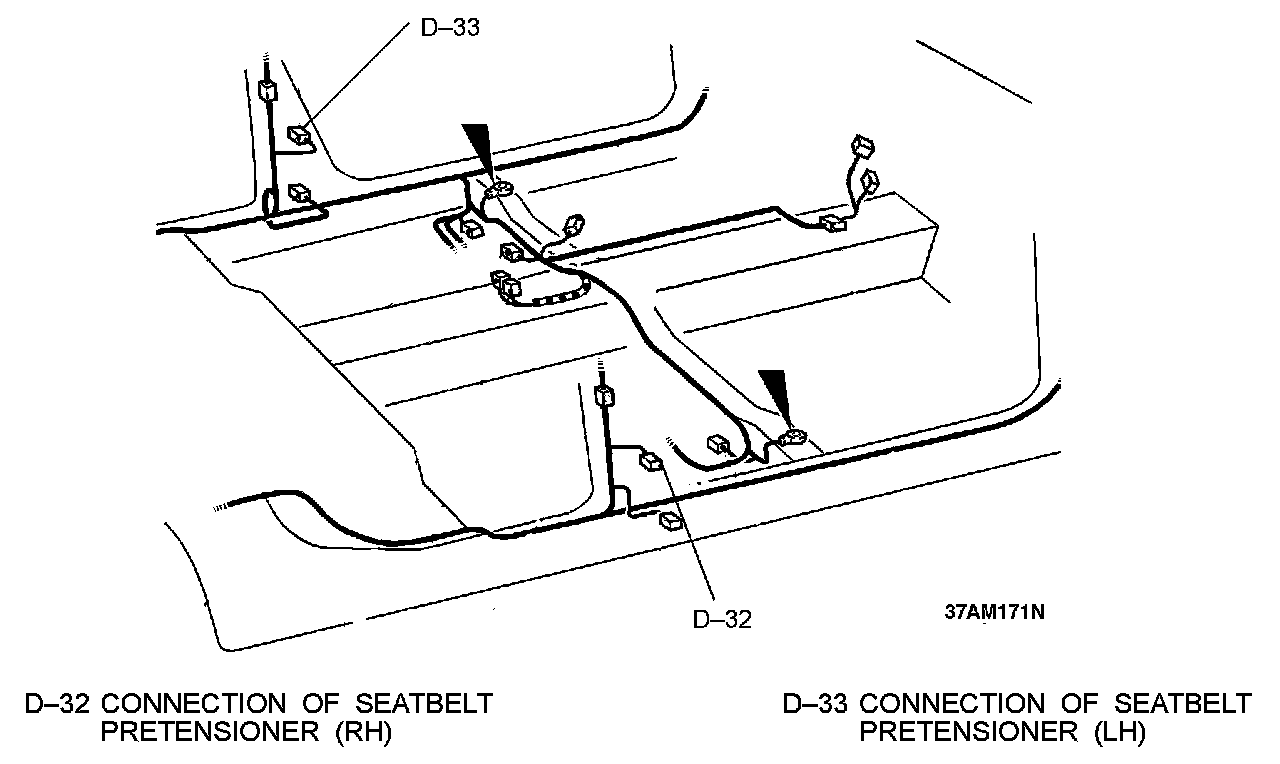

Configuration Diagram - Floor:
