Electrical Diagrams

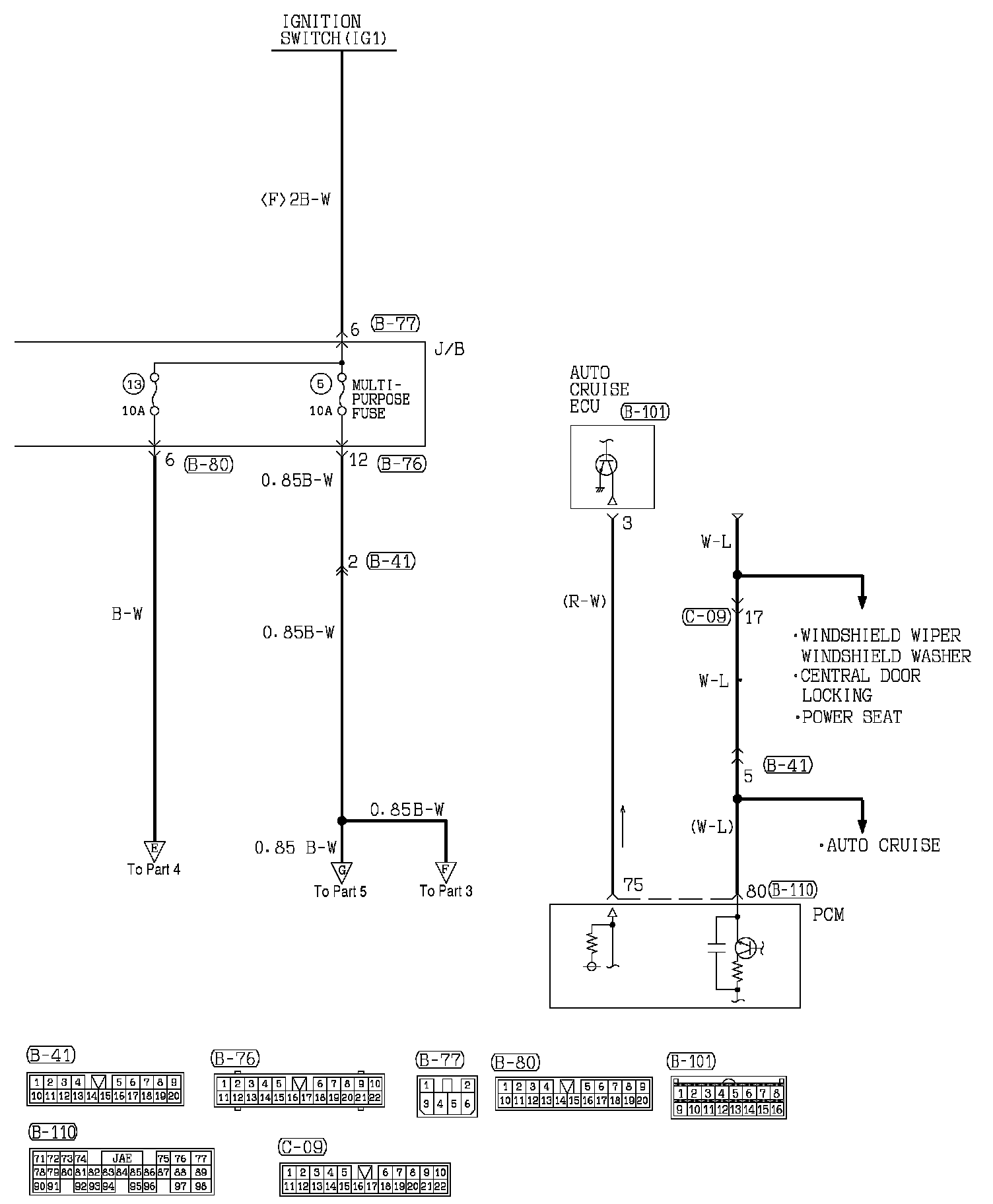

ELC 4-Speed Automatic Transaxle Part 1:

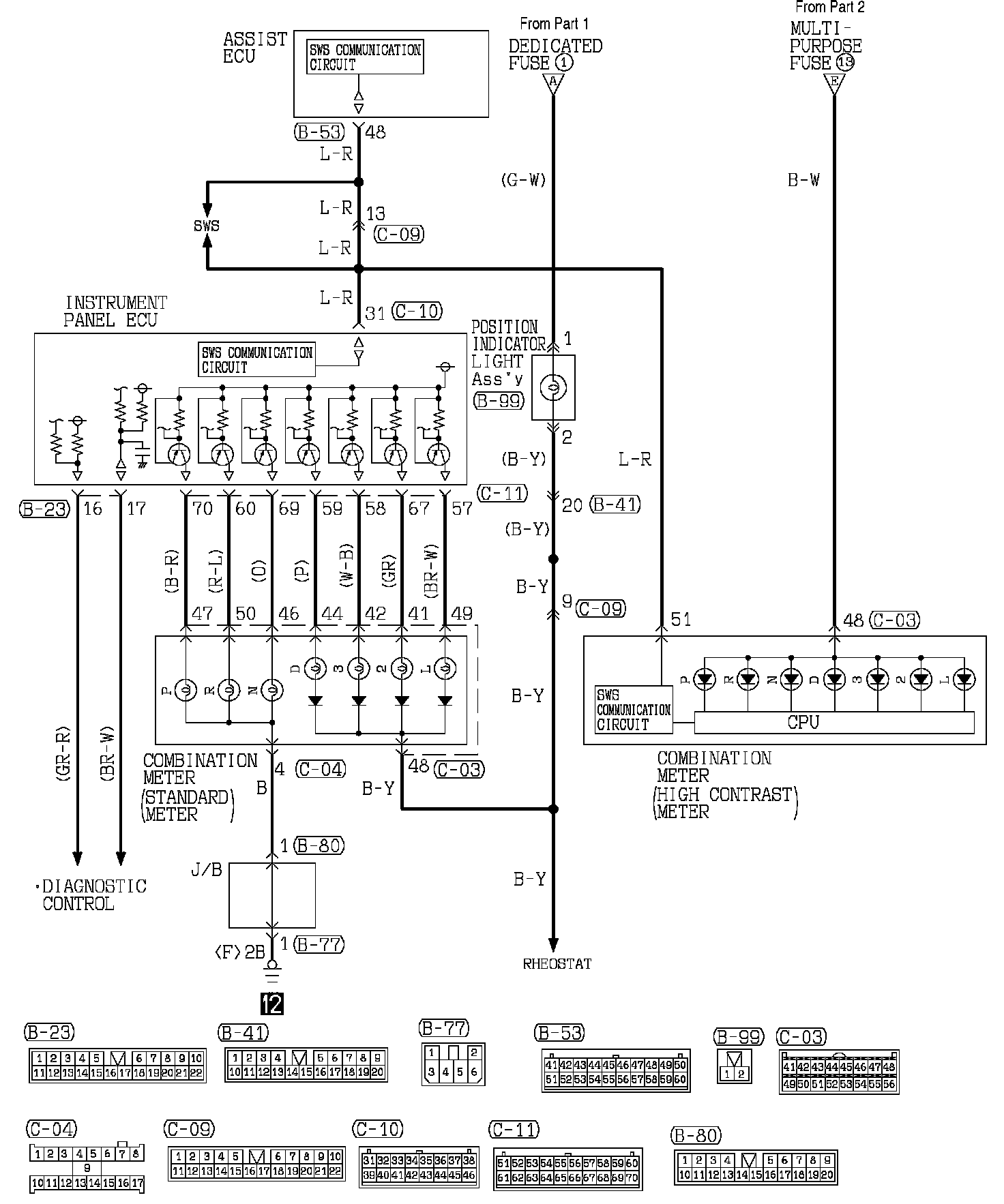

ELC 4-Speed Automatic Transaxle Part 2:

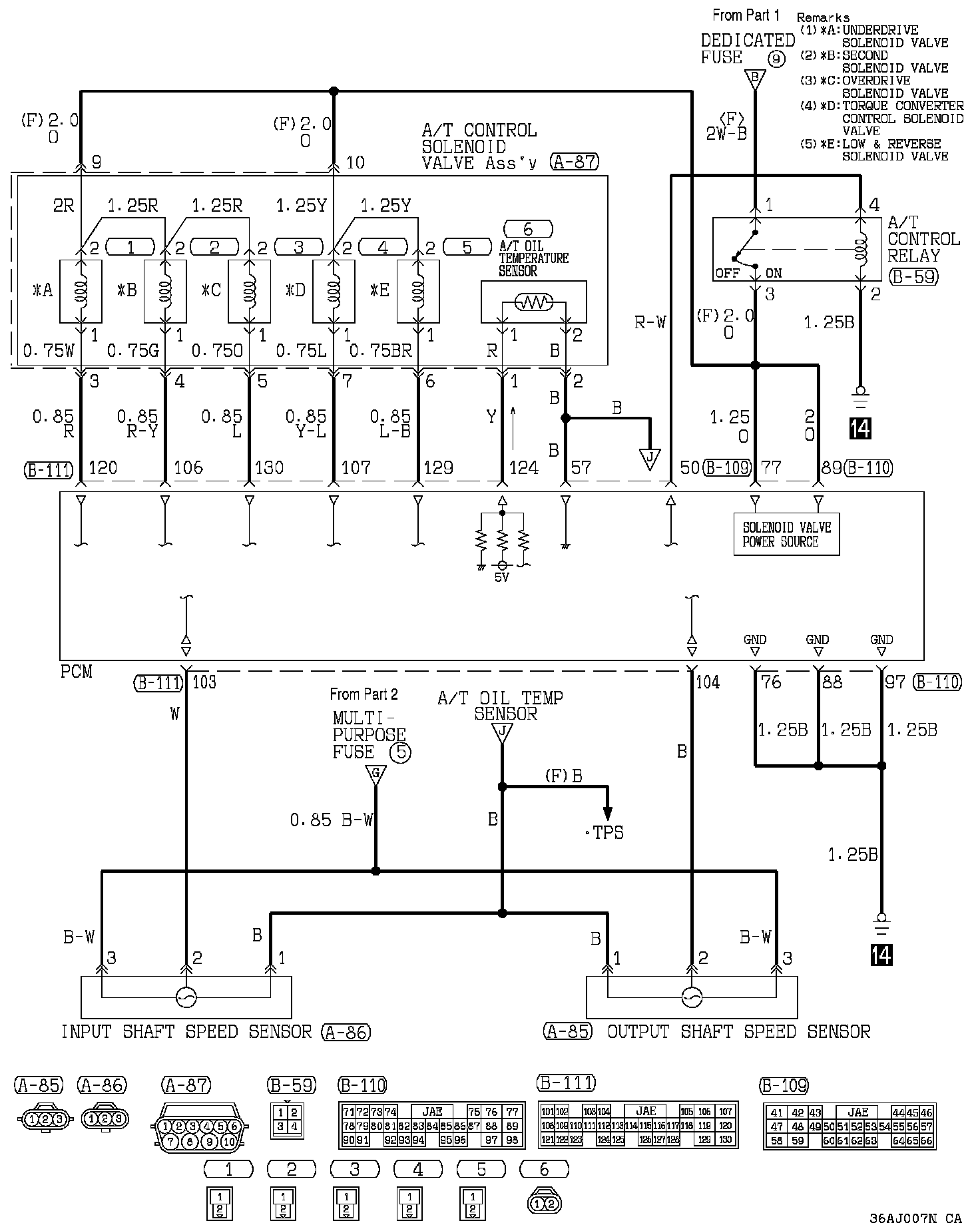

ELC 4-Speed Automatic Transaxle Part 3:

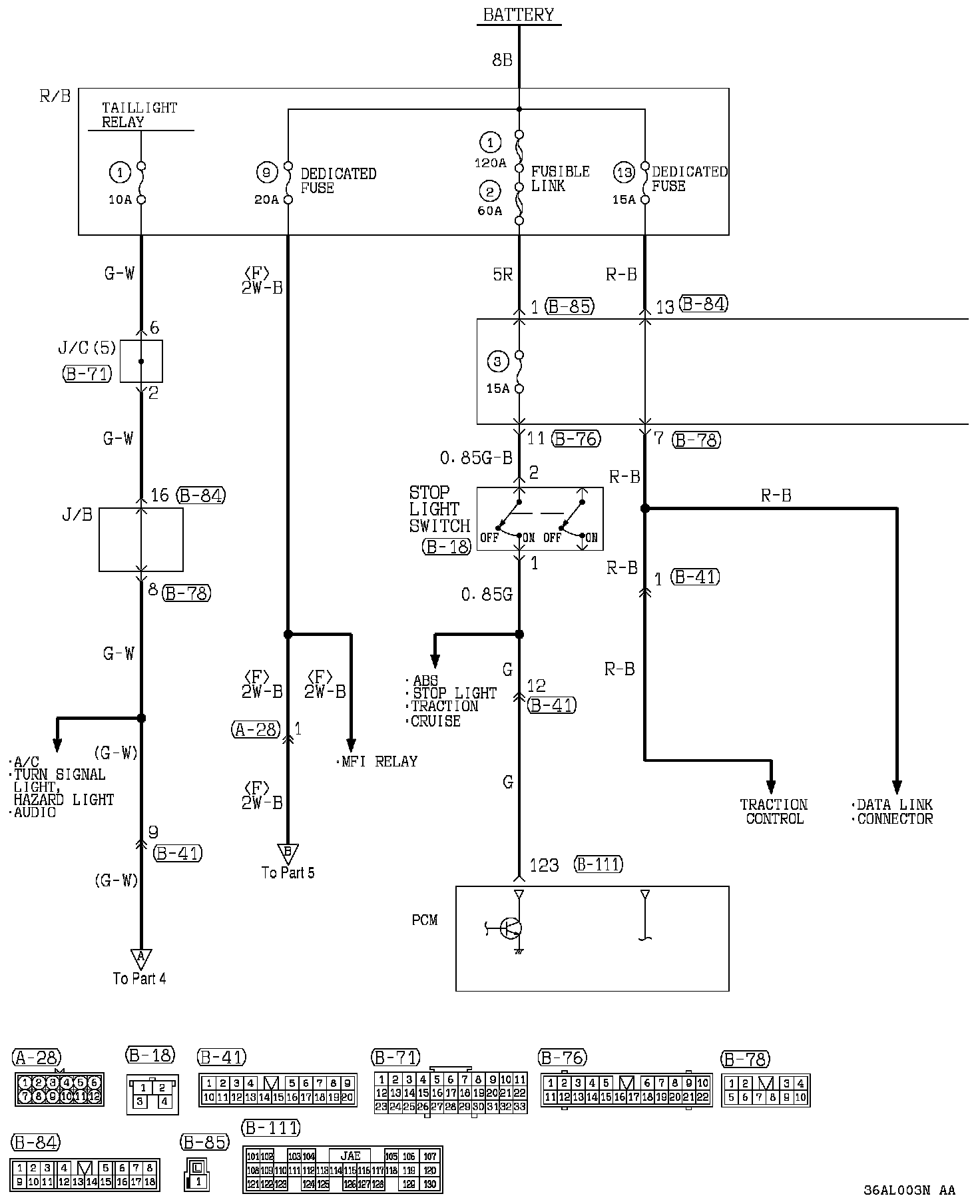

ELC 4-Speed Automatic Transaxle Part 4:

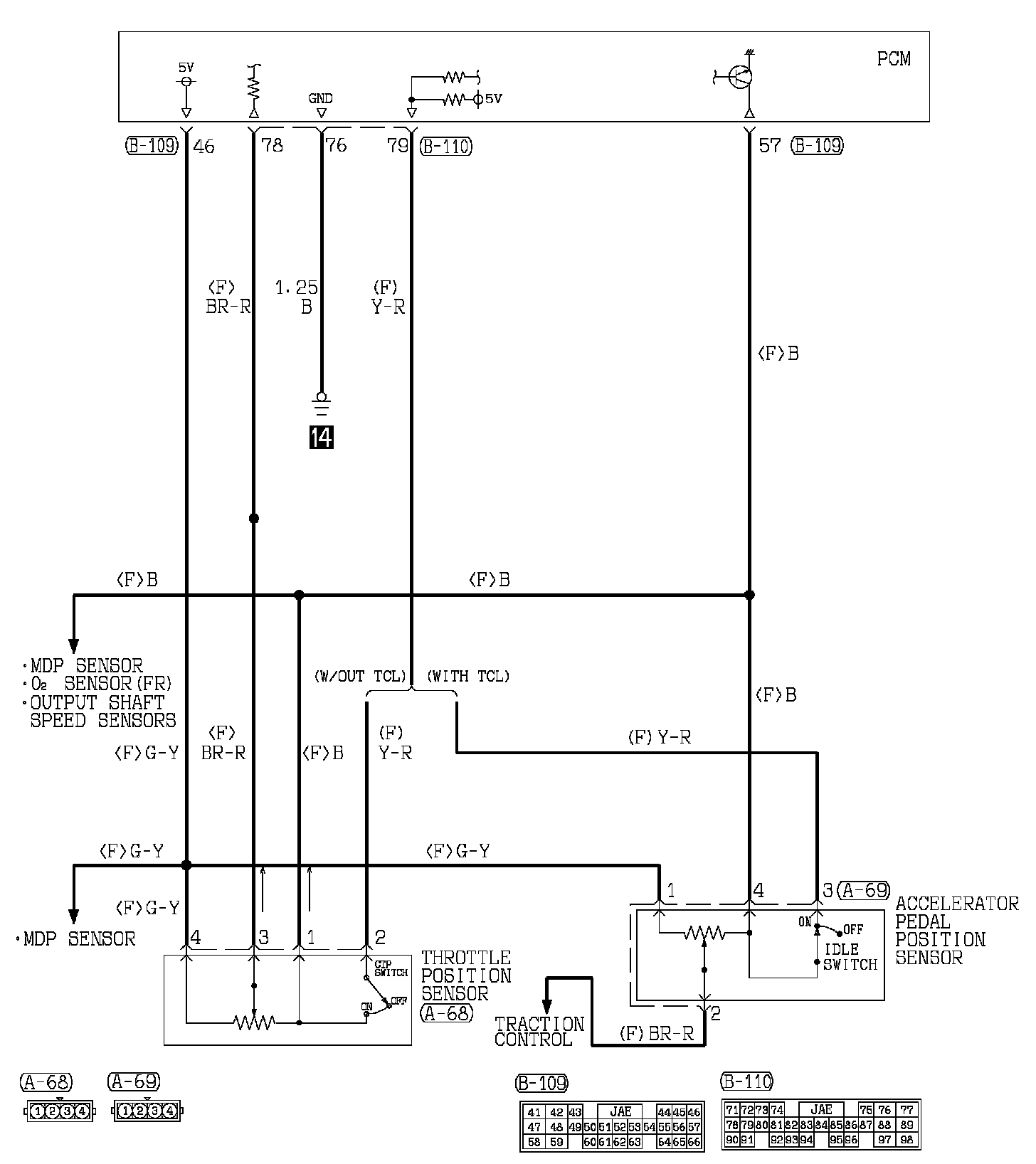

ELC 4-Speed Automatic Transaxle Part 5:

ELC 4-Speed Automatic Transaxle Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
