Fuel - Fuel Pump and Sending Unit Part Numbers

No: TT-129-13-002

DATE: August, 2006

MODEL: See Below

SUBJECT
FUEL PUMP AND SENDING UNIT AVAILABILITY

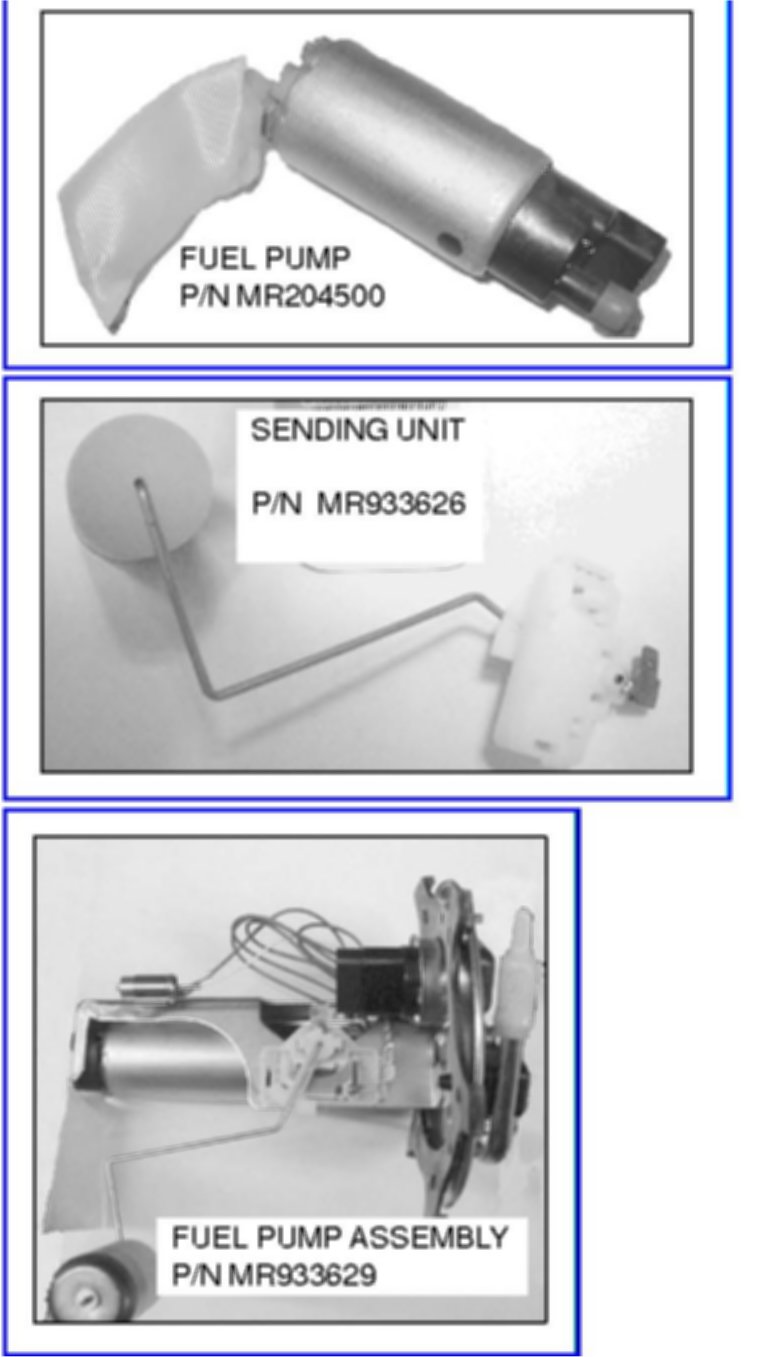

Fuel Pump and Sending Unit Availability - 1997-2003 Diamante. If the replacement of a fuel pump or sending unit become necessary, the parts are available separately. Please replace only the needed part instead of the entire assembly, p/n MR933629. The fuel pump, p/n MR204500, is just the pump without the sending unit. The fuel gauge sending unit, p/n MR933626, is just the sending unit without the pump.
